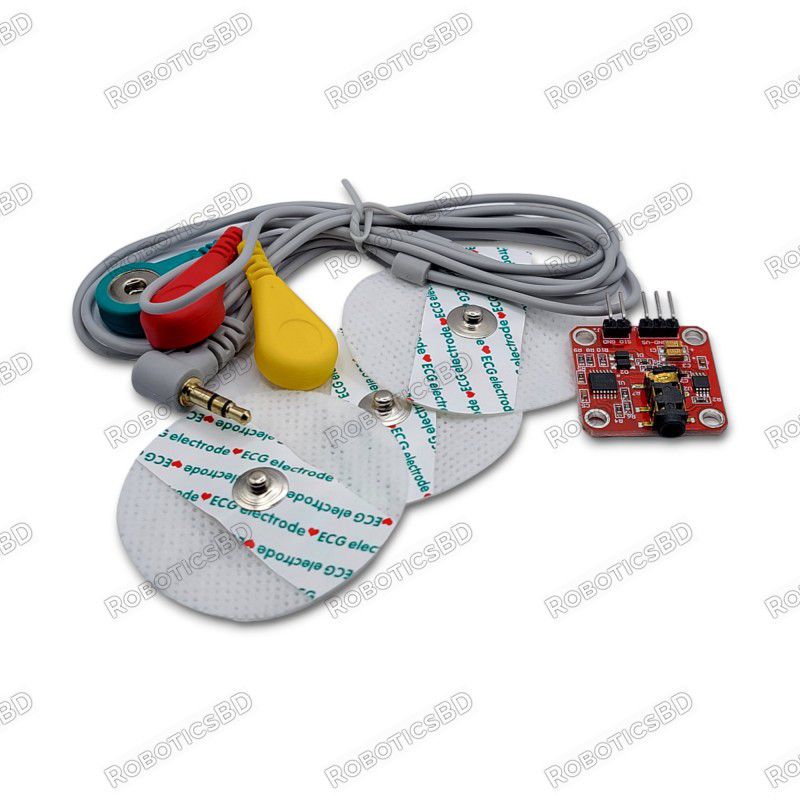

EMG Muscle Sensor With Cable And Electrodes Controller Detects Muscle Activity Robotics Bangladesh
  • EMG Muscle Sensor With Cable And Electrodes Controller Detects Muscle Activity Robotics Bangladesh

EMG Muscle Sensor With Cable And Electrodes Controller - High Quality

RBD-2918

  • EMG muscle sensor V3.0 with cable and electrodes
  • Measures the electrical activity of muscles
  • High signal quality for accurate and reliable measurement
  • Adjustable gain and filtering for signal conditioning
  • Compatible with various types of microcontrollers and data acquisition systems
  • Comes with reusable electrodes and a 3.5mm jack cable for easy connection
BDT 2,550.00
BDT 2,550.00 BDT 2,550.00 BDT 2,550.00 BDT 2,550.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,550.00 Tax excluded
BDT 2,550.00 Tax included
BDT 0.00 Tax
BDT 2,550.00 Tax excluded
BDT 0.00 Tax
BDT 2,550.00 Tax included
Quantity
In-Stock
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

There are two variant circuit boards available. This one is high quality version.  If you want to purchase the regular version click here.






If you are wandering to make a device that is used to detect measure electrical activity on muscle. then you will need sensors, So, you can buy them at a reasonable price.

The Advance Technologies EMG Muscle Sensor V3.0 With Cable And Electrodes will measure the filtered and rectified electrical activity of a muscle outputting 0-Vs Volts depending on the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. Power supply voltage: min. +-3.5V.

This Muscle Sensor v3 from Advancer Technologies measures, filters, rectifies, and amplifies the electrical activity of a muscle and produces an analog output signal that can easily be read by a microcontroller, enabling novel, muscle-controlled interfaces for your projects. Featured By RoboticsBD.

Getting Started Using Two 9V Batteries

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. The diameter of Electrode Pad: 52 mm
  2. Cable Length: 2 feet
  3. Weight: 30gm.
  4. Improved adjustable gain (more rugged)
  5. Onboard port for our new cables
    1. Connects to the board straight out of the box
  6. The reduced voltage needed (+-3.5V)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. This EMG muscle sensor is ideal for use in various types of biomedical and rehabilitation applications, including muscle training, prosthetics, and physical therapy.
  2. It can be used to monitor and analyze muscle activity for research and scientific purposes.
  3. This EMG muscle sensor is suitable for use in hobbyist and DIY electronics projects, as well as for educational purposes.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating voltage (v) ±5
Audio-style plug 3.5 mm jack
Length of connecting cable 1 m.
Length (mm) 33.5
Width (mm) 26
Height (mm) 12
Weight (gm) 40
Shipment Weight 0.043 kg
Shipment Dimensions 11 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Wiring Instructions:

  1. To use this sensor, the user must have three electrodes connected to the subject’s body.
  2. The reference electrode should be placed on an inactive section of the body, such as the bony portion of the elbow, shin, or forearm. This electrode should be connected to the black or brown cable.
  3. The two other electrodes should be placed along the muscle selected to be measured. The second electrode should be placed along the mid-length of the muscle; this electrode should be connected to the red cable.
  4. The last electrode should be placed at the end of the muscle and connected to the blue cable.
  5. Finally, connect pin SIG to an analog input pin of your microcontroller and the GND pin to the ground pin on your microcontroller.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

WARNING: As an inherent risk associated with electrical component work, improper use of this sensor could cause harm to the subject. If underage, do not use without adult supervision.

WARNING: This sensor is not intended for use in the diagnosis of a disease or other conditions, or in the cure, mitigation treatment, or prevention of disease, in a man or other animals.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Useful Links:

Package Includes:

1 x EMG Muscle Sensor V3.0 Module.

3 x Electrode Pad.

1 x Connecting Cable.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
