The Mini Servo SG90 is a small, lightweight, and low-cost servo motor used in hobbyist and educational projects. Servo motors are a type of motor that can be controlled with a precise amount of rotation, and the SG90 servo is specifically designed for small applications, such as RC models, toys, or robotic projects. The SG90 servo features a compact size, high-speed response, and easy interface with microcontroller boards, such as the Arduino or Raspberry Pi. It is often used for controlling simple motions, such as positioning a servo horn, moving a robotic arm, or rotating a wheel.. Featured By RoboticsBD.
When you purchase TowerPro motors in Bangladesh, they are almost usually NOT ORIGINAL, and these are no exception. These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Aplication :
-
Robotics: Mini Servo SG90 can be used to control the movement of robotic arms, legs, or other components.
-
RC Models: It can be used to control the movement of steering, flaps, or other components in RC (remote controlled) models, such as cars, airplanes, or boats.
-
Automation: It can be used to control the movement of actuators, such as in automated machines, such as dispensers or conveyors.
-
Toy projects: Mini Servo SG90 can be used in toy projects, such as animatronics or interactive devices.
-
Education: It can be used as a component in educational projects to teach principles of servo motor control and automation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Wire Description
RED – Positive
Brown – Negative
Orange – Signal
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Model |
SG90 |
| Weight(gm) |
9 |
| Operating Voltage (VDC) |
3.0 ~ 7.2 |
| Operating Speed @4.8V |
0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
1.2 |
| Stall Torque @6.6V (Kg-Cm) |
1.6 |
| Operating Temperature (°C) |
-30 to 60 |
| Dead Band Width ( μs) |
7 |
| Gear Type |
Glass Fiber |
| Rotational Degree |
180º |
| Servo Plug |
JR |
| Cable Length (cm) |
25 |
| Length (mm) |
22.8 |
| Width (mm) |
12.6 |
| Height (mm) |
34.5 |
| Shipment Weight |
0.014 kg |
| Shipment Dimensions |
6 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
-
Power supply: Ensure that the power supply used with the Mini Servo SG90 is within the recommended voltage and current limits to avoid damaging the servo.
-
Heat dissipation: The Mini Servo SG90 can generate heat when driven for extended periods, so proper heat dissipation measures should be taken, such as adding heat sinks or ventilation, to prevent damage or failure.
-
Overloading: Avoid overloading the Mini Servo SG90 by exceeding the maximum load rating or applying excessive force, as this can cause damage or failure of the servo. Additionally, make sure to follow the recommended wiring and connection guidelines to ensure safe and reliable operation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Difference between SG90 and MG996R:
-
Torque: Mini Servo SG90 has a maximum torque of around 4.8 kg/cm, while MG996R has a maximum torque of 11 kg/cm. This means that the MG996R can handle heavier loads and is better suited for high-torque applications.
-
Speed: Mini Servo SG90 has a speed of 0.12 sec/60 degrees, while MG996R has a speed of 0.10 sec/60 degrees. This means that the MG996R is faster and more responsive than the SG90.
- Size: Mini Servo SG90 is smaller in size, making it more suitable for compact and lightweight applications, while MG996R is larger and more robust, making it better suited for heavy-duty applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

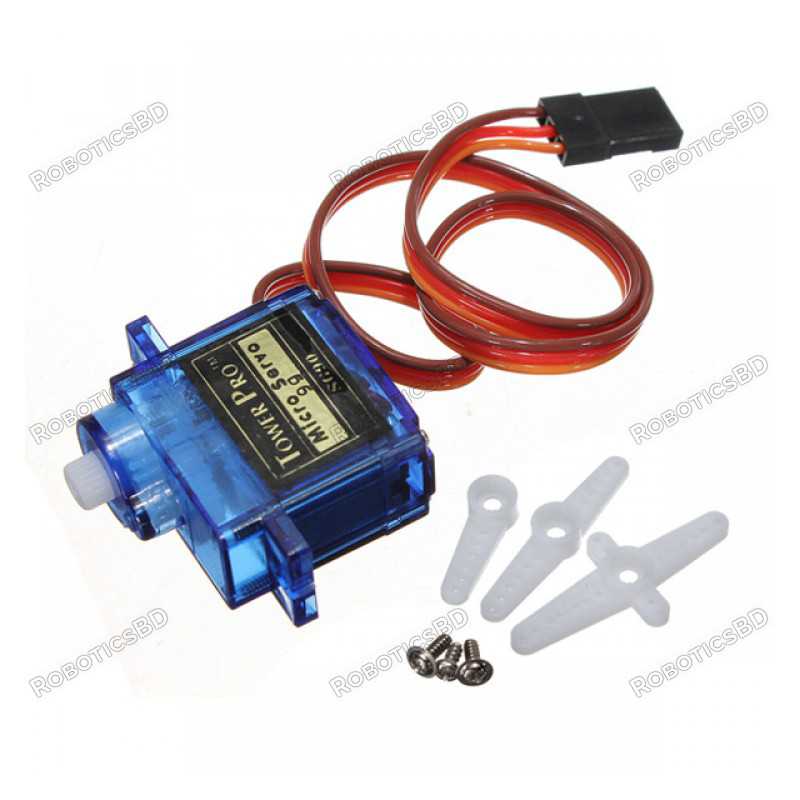

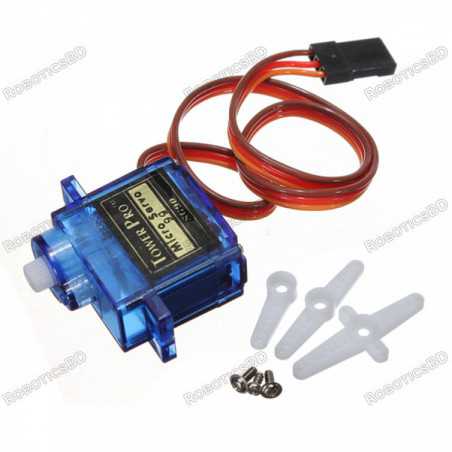

Package Includes :
1 x SG90 9g Mini Servo Motor with Cable
1 x Set of Horns
1 x Set of Screws
