MG90s Micro Metal Servo 180 Degree Robotics Bangladesh
  • MG90s Micro Metal Servo 180 Degree Robotics Bangladesh
  • TowerPro MG90s – Micro Metal Servo
  • TowerPro MG90s – Micro Metal Servo

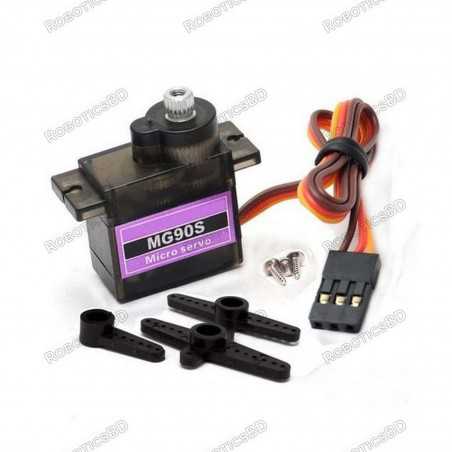

Servo Motor Micro MG90S 180 Degree Rotation

RBD-0217

  • Model: MG90S
  • Weight: 13 gm
  • Operating voltage: 4.8V~ 6.6V
  • Servo Plug: JR
  • Stall torque @4.8V : 1.8kg-cm
  • Stall torque @6.6V : 2.2kg-cm

Note: The component, colour & shape of the motor may vary depending on our stock rotation.

BDT 250.00
BDT 250.00 BDT 250.00 BDT 250.00 BDT 250.00
Tax included Tax excluded Tax included Tax excluded
BDT 250.00 Tax excluded
BDT 250.00 Tax included
BDT 0.00 Tax
BDT 250.00 Tax excluded
BDT 0.00 Tax
BDT 250.00 Tax included
Quantity
In-Stock
330 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power
Wire Description

RED – Positive

Brown – Negative

Orange – Signal

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model MG90S
Weight(gm) 13
Operating Voltage (VDC) 4.8 ~ 6.6
Operating Speed @4.8V 0.10sec/60°
Operating Speed @6.6V 0.08sec/60°
Stall Torque @ 4.8V (Kg-Cm) 1.8
Stall Torque @6.6V (Kg-Cm) 2.2
Operating Temperature (°C) 0 to 55
Dead Band Width ( μs) 1
Rotational Degree 180º
Servo Plug JR
Cable Length (cm) 25
Length (mm) 12.4
Width (mm) 22.8
Height (mm) 32.5
Shipment Weight 0.017 kg
Shipment Dimensions 8 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

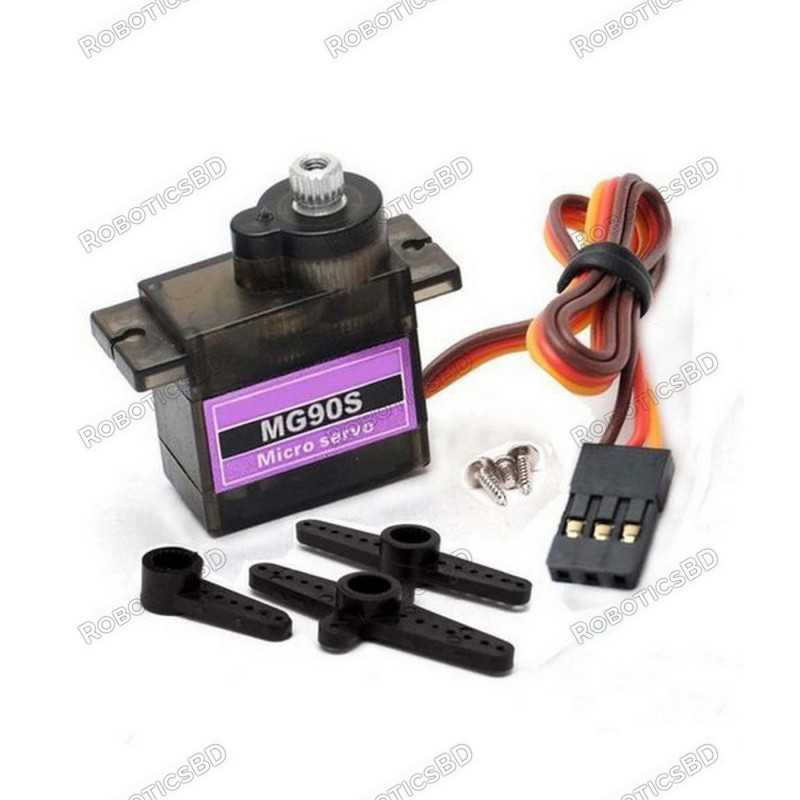

Package Includes :

1 x Towerpro MG90S Mini Digital 180 Degree Servo

Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0217
330 Items

Specific References

EAN13
0217
