Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.
- As the name implies, a "continuous rotation" servo cannot be controlled in terms of degree; it will rotate continuously either in the forward or reverse direction. However, you can control its speed. The code for operating a continuous rotation servo differs from that of a regular servo.
- To achieve continuous rotation to the left, use the command myServo.write(0). For rotation to the right, employ myServo.write(180). To halt the servo's movement, you'll need to find the exact value. You can try different values around the middle, such as myServo.write(90) or myServo.write(95), to determine the stopping point.
Enjoy controlling your robot and exploring its capabilities!
|
Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognize and buy an original TowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name.

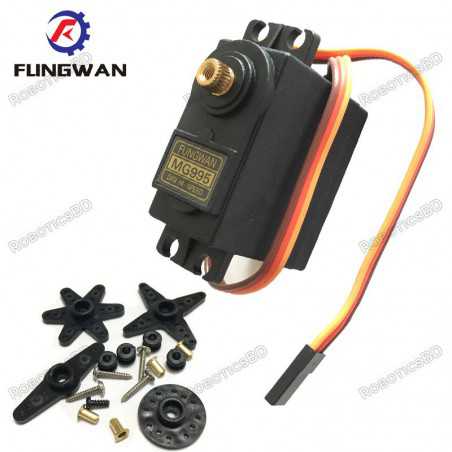

We have imported this copy of original TowerPro MG995 High-Speed Servo from our trusted supplier. Though the motor is the copy of the original High-Speed TowerPro MG995 servo, it is compatible with all the applications that use the genuine TowerPro MG995 servo because of its same size, comparable quality, and optimized performance.
It has metal gears which makes it robust and reliable motors. These TowerPro MG995 – Continuous Rotation 360° Metal Gear Servo Motor are the high-speed servo motors with the mighty torque of 9.4 kg/cm.
The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.
This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Wire Description
RED – Positive
Brown – Negative
Orange – Signal
NOTE :
This servo draws high current while operation (up to 2 amp stall), to make this servo work with Arduino or any other microcontroller, please do following connections.
- PLEASE MAKE SURE THAT YOUR SYSTEM HAS COMMON GROUND.
- POWER SOURCE ANYTHING BATTERY/SMPS/ADAPTER.
Features :
- The connection cable is thicker.
- Equips high-quality motor.
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
MG995 |
| Weight(gm) |
55 |
| Operating Voltage (VDC) |
4.8 ~ 7.2 |
| Operating Speed @4.8V |
0.20sec/60° |
| Operating Speed @6.6V |
0.16sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
9.4 |
| Stall Torque @6.6V (Kg-Cm) |
11 |
| Operating Temperature (°C) |
-30 to 60 |
| Dead Band Width ( μs) |
4 |
| Gear Type |
Metal |
| Rotational Degree |
360º |
| Servo Plug |
JR |
| Cable Length (cm) |
30 |
| Length (mm) |
40.5 |
| Width (mm) |
20 |
| Height (mm) |
44 |
| Shipment Weight |
0.059 kg |
| Shipment Dimensions |
9 × 8 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x TowerPro MG995 Servo Motor with Cable
Set of Horns
- One Point
- Two Point
- Four Point
1 x Set of Screws
1 x Aluminum Servo Horn Arm.
