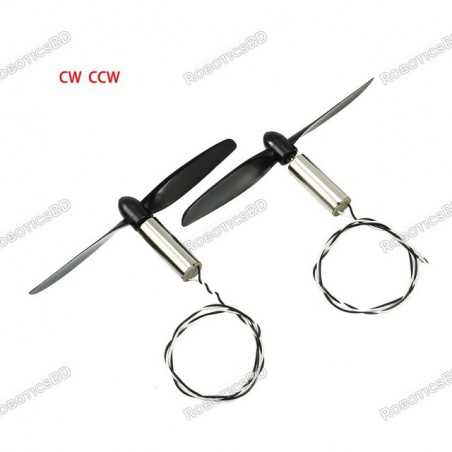

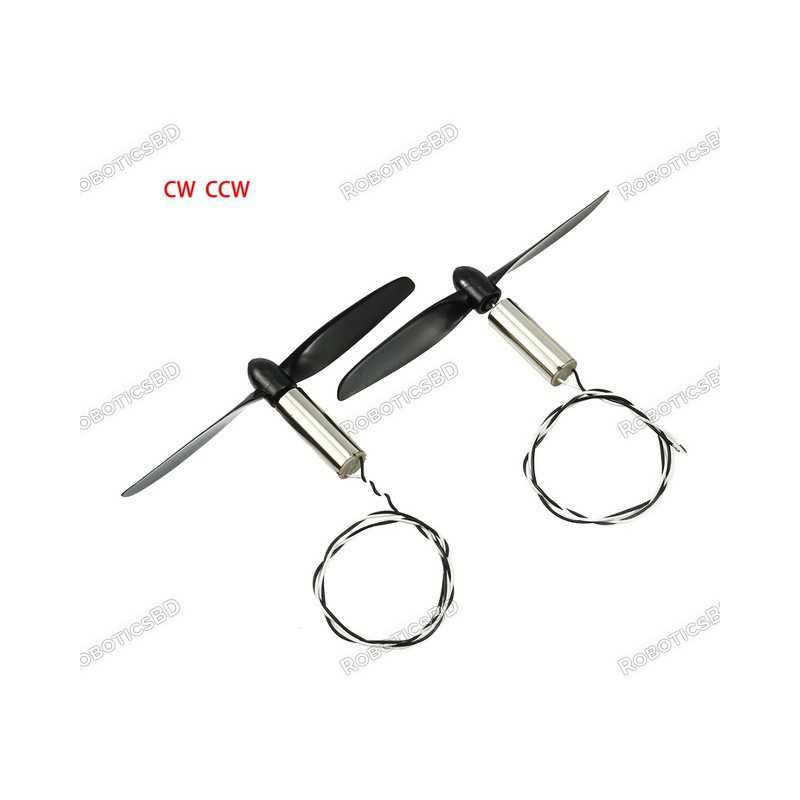

2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)
  • 2pcs 7x20mm Coreless Motor (with 55mm Propeller)

7x20mm Coreless Motor with 55mm Propeller Pair

RBD-0736

  • Model: 720
  • Shaft Size: 1.0 mm
  • Rated Voltage: 3.7 V.
  • Current: 0.1 A.
  • Rated RPM: 48000.
  • Max Speed: 50000 RPM.
  • Wire Length: 5cm
  • Prop. Length: 55mm
BDT 250.00
BDT 250.00 BDT 250.00 BDT 250.00 BDT 250.00
Tax included Tax excluded Tax included Tax excluded
BDT 250.00 Tax excluded
BDT 250.00 Tax included
BDT 0.00 Tax
BDT 250.00 Tax excluded
BDT 0.00 Tax
BDT 250.00 Tax included
Quantity
In-Stock
97 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC Motors.

Most importantly this 720 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames. RoboticsBD

They are 48000 RPM Motors which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, just because they are High Speed and Low Torque motors.

The propellers are made of high-tenacity material and thus can sustain crashes. Therefore, this propeller with 720 Coreless motors is a perfect combination for your multirotor. Only, Plug-n-Play. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. 720 Coreless motor is High Speed and Low Torque motor.
  2. Less noisy operation.
  3. Offers low resistance.
  4. They are equipped with high-quality magnets.
  5. This coreless motor supports 1S battery. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model 720
Rated Speed (RPM) 48000
Maximum RPM 50000
Rated Voltage(V) 3.7
Operating Current (A) 0.1
Operating Temperature (°C) -10 to 50
Shaft Diameter (mm) 1
Motor Color Silver
Motor Diameter(mm) 7
Motor Length (mm) 20
Motor Material Metal
Prop. Material Plastic
Prop. Length(mm) 55
Cable Length (cm) 5
Shipment Weight 0.03 kg
Shipment Dimensions 4 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

2 x 720 Magnetic Micro Coreless Motor

2 x 55 mm Propeller (Color: Black)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0736
97 Items

Specific References

EAN13
0736
