N20 12V 100 RPM Micro Metal DC Gear Motor Robotics Bangladesh
  • N20 12V 100 RPM Micro Metal DC Gear Motor Robotics Bangladesh

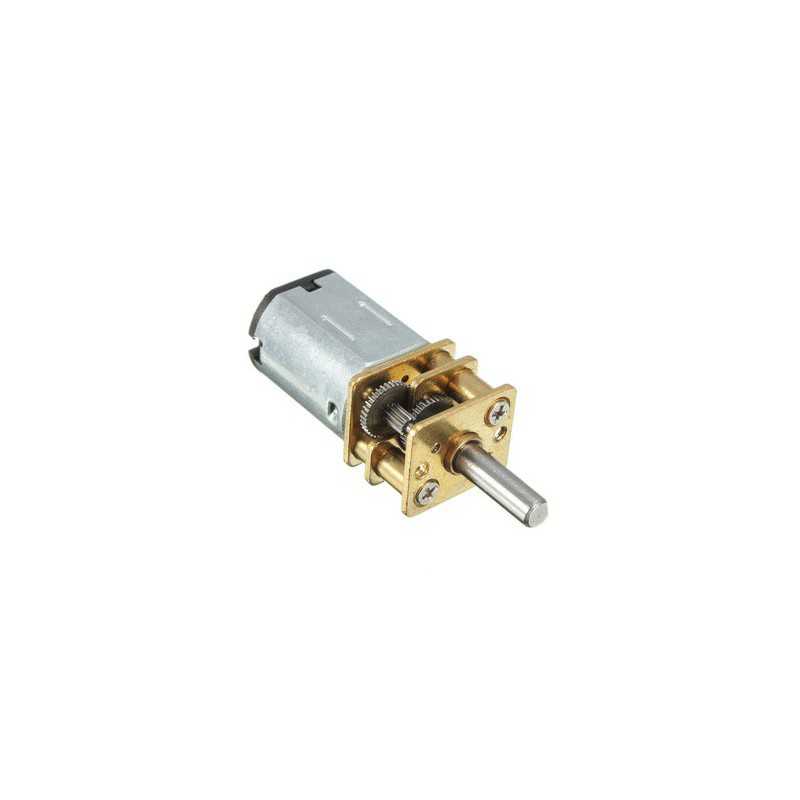

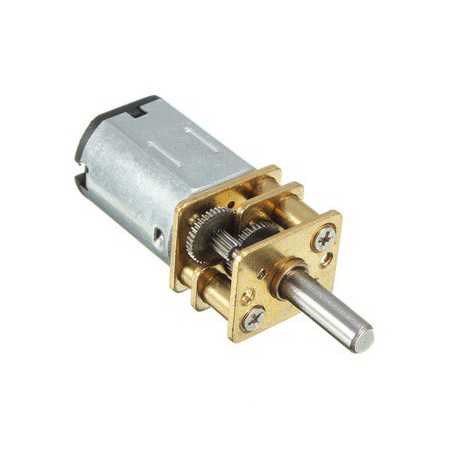

N20 12V 100 RPM Micro Metal DC Gear Motor

RBD-1068

  • This is a DC Mini Metal Gear Motor, ideal for making robots
  • Lightweight, high torque and low RPM.
  • Fine craftsmanship, durable, not easy to wear.
  • With excellent stall characteristics, can climb hills easily.
  • You can also easily mount a wheel on the motor’s output shaft.
BDT 295.00
BDT 295.00 BDT 295.00 BDT 295.00 BDT 295.00
Tax included Tax excluded Tax included Tax excluded
BDT 295.00 Tax excluded
BDT 295.00 Tax included
BDT 0.00 Tax
BDT 295.00 Tax excluded
BDT 0.00 Tax
BDT 295.00 Tax included
Quantity
In-Stock
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The N20 Micro Gear 12V 100RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads. RoboticsBD

This N20 Micro Gear 100RPM 12V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Type: N20 Micro Gearbox
  2. Fuselage Dimensions: 15 x 12 x 10 (LxWxH) mm
  3. Gearbox Dimensions: 10 x 12 x 10 (LxWxH) mm
  4. This is a DC Mini Metal Gear Motor, ideal for making robots
  5. Lightweight, high torque and low RPM.
  6. Fine craftsmanship, durable, not easy to wear.
  7. With excellent stall characteristics, can climb hills easily.
  8. You can also easily mount a wheel on the motor’s output shaft.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model No. N20-12-100
Motor Type Single Shaft
Rated Operating Voltage (VDC) 12
No Load Current (mA) 0.06 A
Stall Current (A) 0.75
Rated Speed (RPM) 100
Operating Voltage (VDC) 6 ~ 12
Rated Torque(kg-cm) 0.52
Stall Torque(Kg-Cm) 1.8
No load Speed (RPM) 100
Shaft Type D-type
Single Side
Motor Body Size (Diameter) (mm) 12
Shaft Diameter (mm) 3
Weight (gm) 10
Output Axial Length (mm) 10
Fuselage w/o Shaft Length 26
Screw Size M3
Shipment Weight 0.01 kg
Shipment Dimensions 8 × 7 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x N20 Micro Gear 12V 100RPM DC Motor (High Torque)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1068
13 Items

Specific References

EAN13
1068
Comments (0)
Grade
No customer reviews for the moment.
