The N20 Micro Gear 12V 100RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads. RoboticsBD
Mounting Bracket for N20 Micro Gear motors.
The product 3PI miniQ Car wheel Tyre 43mm N20 DC Gear Motor Wheel is a customized high-quality rubber wheel, a diameter of 43mm. The hub for N20 micro motor output shaft design of the bayonet, the ferry can plug and play, without an additional field. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
N20 Gear Motor Features:
- Type: N20 Micro Gearbox
- Fuselage Dimensions: 15 x 12 x 10 (LxWxH) mm
- Gearbox Dimensions: 10 x 12 x 10 (LxWxH) mm
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
N20 DC Gear Motor Wheel 3PI miniQ Car wheel Tyre Features :
- Coder Accuracy: 12 pulses per revolution
- Heavy Duty Material
- Durable and specially design 3PI miniQ Car wheel
N20 Motor Mounting Bracket Features :
- Height: 11mm.
- Width: 25mm.
- Material: ABS plastic.
- Pitch: about 16mm.
- Aperture: 2mm M2 screws.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
|
General Specification
|
| N20 Motor Mounting Bracket Height (mm) |
11 |
| N20 Motor Mounting Bracket Width (mm) |
25 |
| N20 Motor Mounting Bracket Material |
High-Quality Plastic |
| N20 DC Gear Motor Wheel Loading Capacity (Kg) |
3 |
| N20 DC Gear Motor Wheel Weight (gm) |
18 |
| N20 DC Gear Motor Wheel Wheel Diameter(mm) |
44 |
| N20 DC Gear Motor Wheel Color |
Black (Tyre)
White (Rim) |
| N20 DC Gear Motor Wheel Wheel Width (mm) |
18 |
| N20 DC Gear Motor Wheel Body Material |
Plastic |
| N20 DC Gear Motor Wheel Grip Material |
Rubber |
| N20 DC Gear Motor Wheel Center Shaft Hole Diameter (mm) |
3 |
| N20 12V 100 Model No. |
N20-12-100 |
| N20 12V 100 Motor Type |
Single Shaft |
| N20 12V 100 Rated Operating Voltage (VDC) |
12 |
| N20 12V 100 No Load Current (mA) |
0.06 A |
| N20 12V 100 Stall Current (A) |
0.75 |
| N20 12V 100 Rated Speed (RPM) |
100 |
| N20 12V 100 Operating Voltage (VDC) |
6 ~ 12 |
| N20 12V 100 Rated Torque(kg-cm) |
0.52 |
| N20 12V 100 Stall Torque(Kg-Cm) |
1.8 |
| N20 12V 100 No load Speed (RPM) |
100 |
| N20 12V 100 Shaft Type |
D-type
Single Side |
| N20 12V 100 Motor Body Size (Diameter) (mm) |
12 |
| N20 12V 100 Shaft Diameter (mm) |
3 |
| N20 12V 100 Weight (gm) |
10 |
| N20 12V 100 Output Axial Length (mm) |
10 |
| N20 12V 100 Fuselage w/o Shaft Length |
26 |
| N20 12V 100 Screw Size |
M3 |
| Shipment Weight |
0.036 kg |
| Shipment Dimensions |
12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

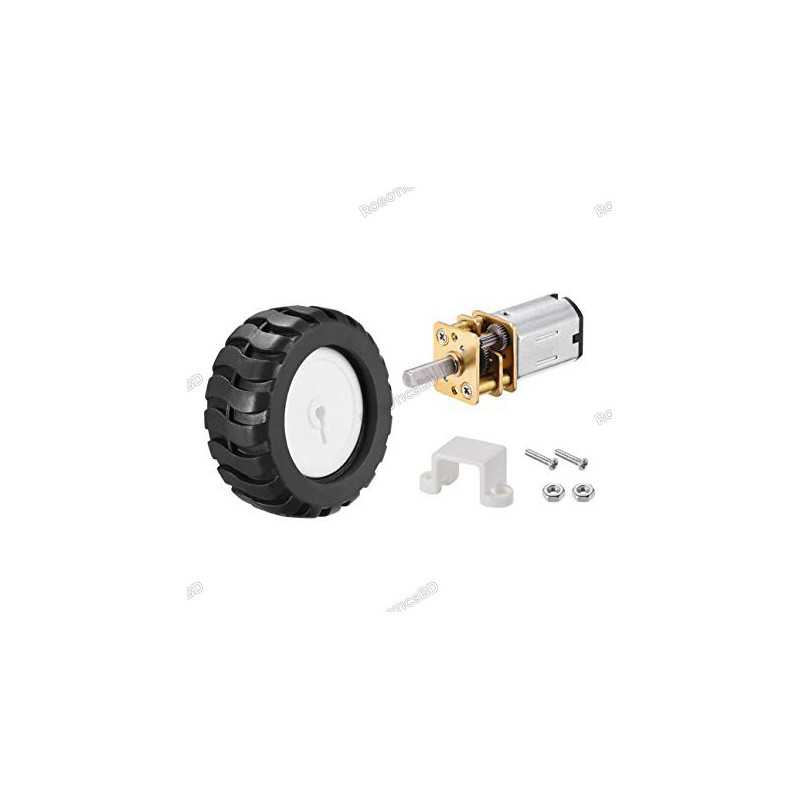

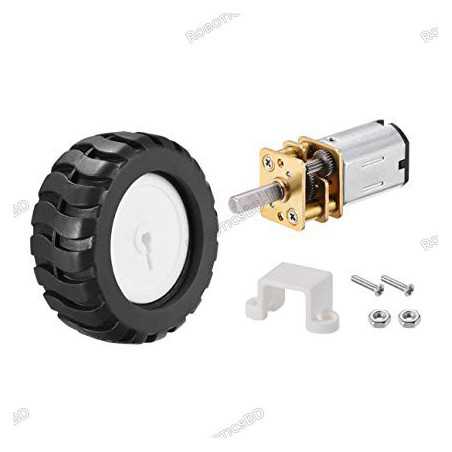

1 x DC3-12V N20 Gear Motor & Mount Bracket & 43mm Wheel.
