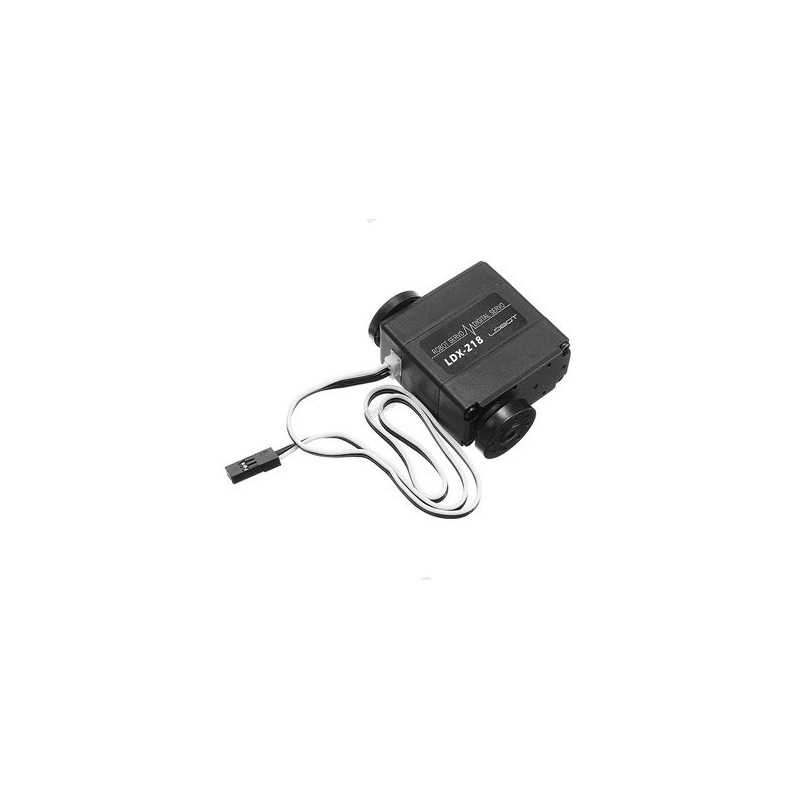

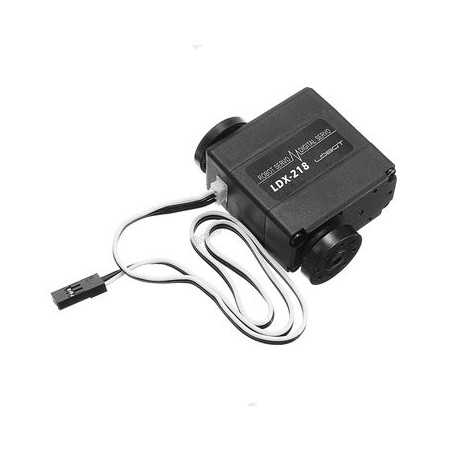

LDX-218 Servo Motor

RBD-0818

  • 17kg large torque. 15 kg·cm (208 oz·in) @6V
  • 17 kg·cm (236 oz·in) @7.4V
  • Full metal gear
  • 180 degree rotation
  • Using high-precision potentiometer with new design
  • Convenient plug-in wire
BDT 2,490.00
BDT 2,490.00 BDT 2,490.00 BDT 2,490.00 BDT 2,490.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,490.00 Tax excluded
BDT 2,490.00 Tax included
BDT 0.00 Tax
BDT 2,490.00 Tax excluded
BDT 0.00 Tax
BDT 2,490.00 Tax included
Quantity
In-Stock
18 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Hiwonder LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing forthe robot. The control angle is 180 degree. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 17kg large torque.
  2. Full metal gear significantly improves servo’s accuracy and extends its service time. RoboticsBD
  3. Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role)
  4. Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots
  5. Convenient plug-in wire. In robots making the process, it is very convenient for you to replace the servo and the wiring will become much easier

Specifications:

  1. Weight: 60g(2.1OZ)
  2. Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)
  3. Speed: 0.16sec/60°(7.4V)
  4. Accuracy: 0.3°
  5. Torque: 15 kg·cm (208 oz·in) @6.6V;17 kg·cm (236 oz·in) @7.4V
  6. Working Voltage: 6-7.4V
  7. Minimum Working Current: 1A
  8. No-Load Current: 100mA
  9. Spline: 25T(6mm diameter)
  10. The default wire: 35cm(13.78inch) in length.  RoboticsBD
  11. 180 degree rotation. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off

Control Specifications:

  1. Control Method: PWM
  2. Pulse Width: 500~2500
  3. Duty Ratio: 0.5ms~2.5ms
  4. Pulse Period: 20ms

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Weight 56g(1.97OZ)
Dimension 40mm*20mm*51.4mm (1.57inch*0.78inch*2.02inch)
Speed 0.16sec/60°(7.4V)
Accuracy 0.3°
Torque 15 kg·cm (208 oz·in) @6V;17 kg·cm (236 oz·in) @7.4V
Working Voltage 6-8.4V
Min Working Current 1A
No-load Current 100mA
Spline 25T(6mm diameter)
Default Wire 30cm(13.78inch) in length
Control Method PWM
Pulse Width 500~2500us to (0~180deg)
Pulse Period 20ms
Shipment Weight 0.065 kg
Shipment Dimensions 4 × 3.5 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Tips:

  1. Please use Li-Po battery to power the servo, Do Not use a dry battery, otherwise, the servo will move slowly or not at all(This servo has higher torque, so it also needs more powerful power to drive itself).
  2. Please use a short and thick power cord, Do Not use Dupont cord
  3. Our servo can be controlled by Arduino, please refer to the Arduino library.

Package Includes:

1 x Digital servo

1 x 30cm servo wire

1 x Primary servo horn(4mm/0.157in thick)

1 x Assistant servo horn(2mm/0.078in thick)

3 x M2*5 Self-tapping screws.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
