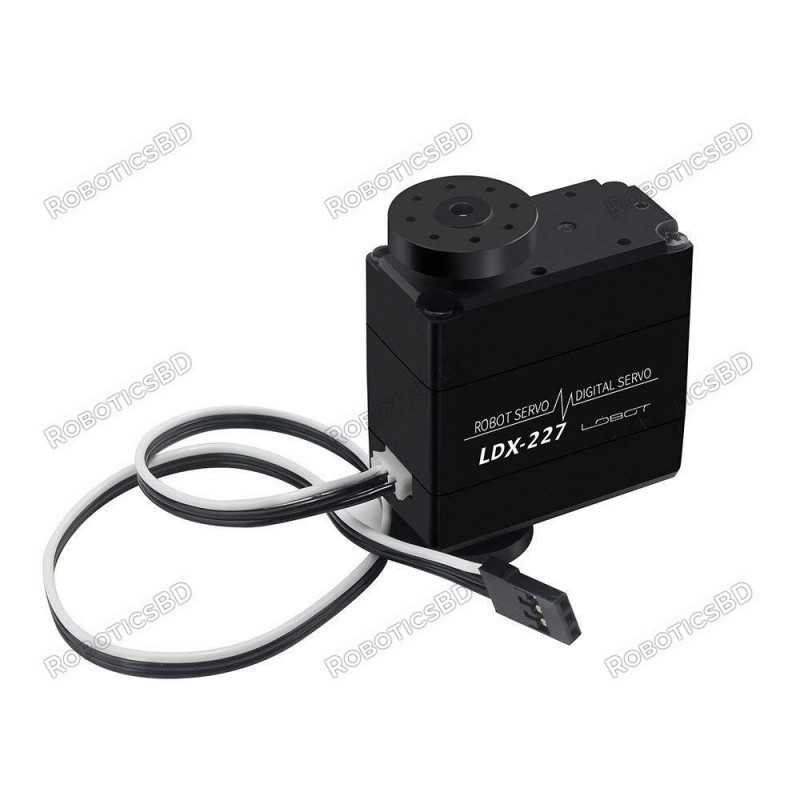

LewanSoul LDX-227 Servo
  • LewanSoul LDX-227 Servo

Hiwonder LDX-227 Servo

RBD-0819

  • 17kg large torque. 15 kg·cm (208 oz·in) @6V
  • 17 kg·cm (236 oz·in) @7.4V
  • Full metal gear
  • 270 degree rotation
  • Using high-precision potentiometer with new design
  • Convenient plug-in wire
BDT 2,250.00
BDT 2,250.00 BDT 2,250.00 BDT 2,250.00 BDT 2,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,250.00 Tax excluded
BDT 2,250.00 Tax included
BDT 0.00 Tax
BDT 2,250.00 Tax excluded
BDT 0.00 Tax
BDT 2,250.00 Tax included
Quantity
In-Stock
20 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Hiwonder LDX-227 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 270 degree. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 17kg large torque. 15 kg·cm 6V; 17 kg·cm 7.4V
  2. Full metal gear significantly improves servo’s accuracy and extends its service time
  3. Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing
  4. Use high-precision potentiometer in a new design. RoboticsBD
  5. Convenient plug-in wire. It is very convenient for you to replace the servo and the wiring will become much easier

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Weight 57g(2.01OZ)
Dimension 40mm*20mm*51.4mm (1.57inch*0.78inch*2.02inch)
Speed 0.16sec/60°(7.4V)
Accuracy 0.4°
Torque 17kg large torque. 15 kg·cm 6V; 17 kg·cm 7.4V
Working Voltage 6-8.4V
Min Working Current 1A
No-load Current 100mA
Spline 25T(6mm diameter)
Default Wire 30cm(13.78inch) in length
Control Method PWM
Pulse Width 500~2500us,to (0~270deg)
Duty Ratio 0.5ms~2.5ms
Pulse Period 20ms
Shipment Weight 0.065 kg
Shipment Dimensions 4 × 3.5 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x digital servo

1 x 30cm servo wire

1 x primary servo horn (4mm/0.157in thick)

1 x assistant servo horn (2mm/0.078in thick)

3 x M2*5 self-tapping screws.
