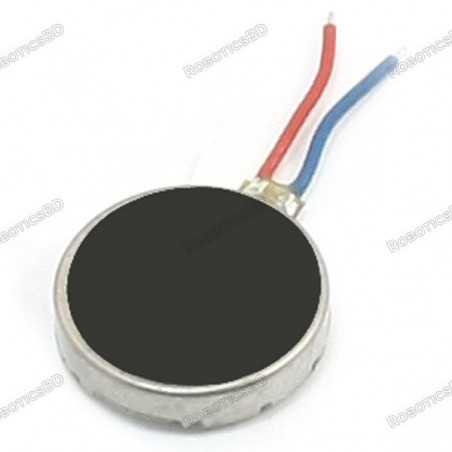

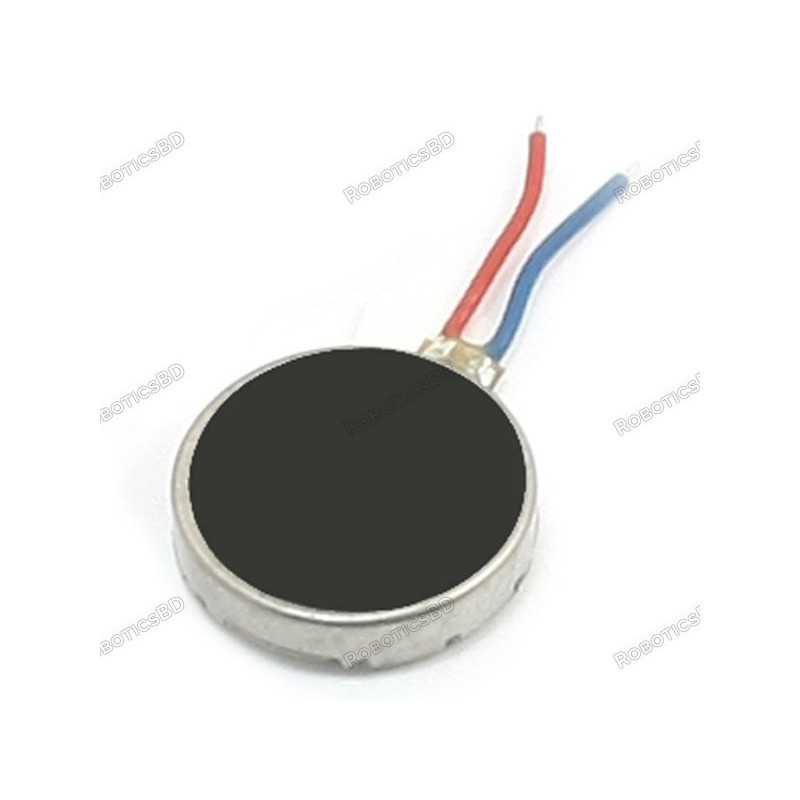

Shaftless Vibration Motor Robotics Bangladesh
  • Shaftless Vibration Motor Robotics Bangladesh
  • Shaftless Vibration Motor Robotics Bangladesh

Shaftless Vibration Motor

RBD-1249

  • Voltage Range: DC 2.5-4V.
  • Motor Diameter: 10 mm.
  • Motor Thickness: 3.4 mm.
  • Min. Rated Speed: 9000RPM
  • Max. Rated Current: 90mA

BDT 150.00
BDT 150.00 BDT 150.00 BDT 150.00 BDT 150.00
Tax included Tax excluded Tax included Tax excluded
BDT 150.00 Tax excluded
BDT 150.00 Tax included
BDT 0.00 Tax
BDT 150.00 Tax excluded
BDT 0.00 Tax
BDT 150.00 Tax included
Quantity
In-Stock
73 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Flat 1034 Mobile Phone Vibrator Motor is a shaftless vibration motor that is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.

The motor has a 3M adhesive backing on it for easy mounting and 1.5″ leads for making quick connections. Polarity is not important; the motor can run CW or CCW. RoboticsBD

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Type 1034
Rated Voltage(V) 3
Operating Voltage (VDC) 2.5 ~ 4
Operating Temperature (°C) -20 to 60
Min. Rated Speed(RPM) 9000
Max. Rated Current(mA) 90
Max. Starting Current(mA) 120
Cable Length (cm) 20
Shipment Weight 0.025 kg
Shipment Dimensions 8 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Shaftless Vibration Motor.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1249
73 Items

Specific References

EAN13
1249
Comments (0)
Grade
No customer reviews for the moment.
