15mm Piezo Ceramic Elements Sound Sensor Robotics Bangladesh
  • 15mm Piezo Ceramic Elements Sound Sensor Robotics Bangladesh

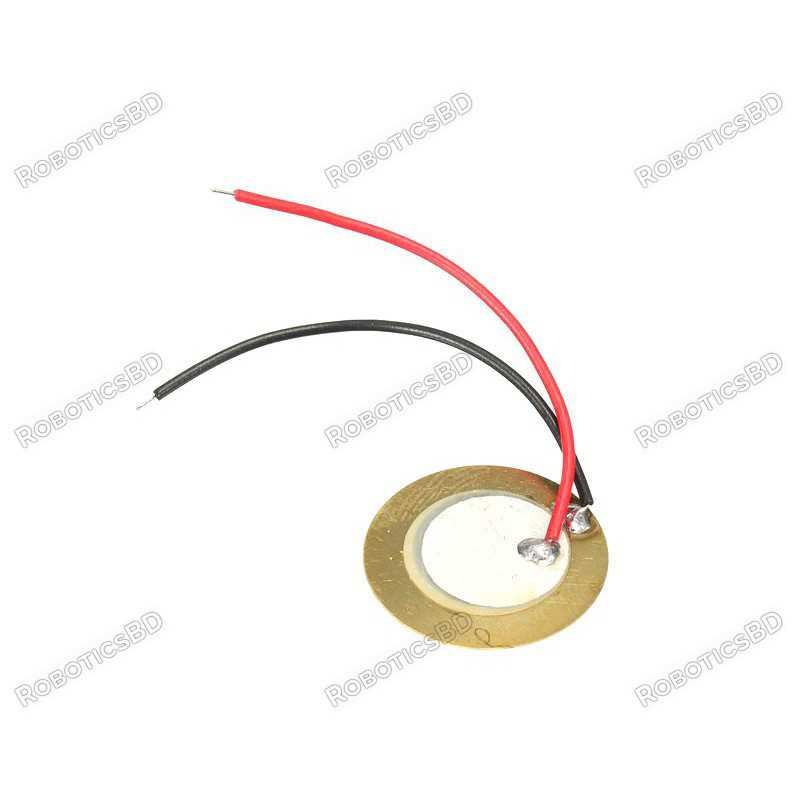

15mm Piezo Ceramic Elements Sound Sensor

RBD-2237

  • Sound pressure level: 85DB 10cm
  • The input voltage: 30vp-p max
  • Clear sound
  • Ultra-thin and lightweight
  • No contacts: therefore, no noise and highly reliable
  • Operating Temperature: -20~70
  • Storage Temperature: -30-80
BDT 48.00
BDT 48.00 BDT 48.00 BDT 48.00 BDT 48.00
Tax included Tax excluded Tax included Tax excluded
BDT 48.00 Tax excluded
BDT 48.00 Tax included
BDT 0.00 Tax
BDT 48.00 Tax excluded
BDT 0.00 Tax
BDT 48.00 Tax included
Quantity
In-Stock
24 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

A piezoelectric transducer converts mechanical force into electrical output. This is made up of Quartz crystal which contains SiO2. Piezoelectric crystals are electrically neutral. The atoms inside the crystals in an unsymmetrical manner but their electric charges balanced

When the force is applied to stretch or bend it, an electric voltage is generated. If there is no stress, no charges are induced. When there is stress, positive charges are induced on one side and negative charges induced on the opposite side. Compression occurs in the crystal as the force is applied.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Clear sound
  2. Ultra-thin and lightweight
  3. No contacts: therefore, no noise and highly reliable
  4. Low power consumption for voltage type
  5. Excellent accessory for acoustic instrument pickups, stompboxes, contact mics, etc.
  6. Piezoelectric buzzer film. Can be fitted to used acoustic guitars, CBGs, drums, etc.
  7. 27mm brass outer diameter plate and ceramic inner diameter plate.
  8. All the discs are made from selected copper, ensuring excellent conductivity and long-lasting use.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Used in Medical Diagnostics
  2. Electric lighter
  3. Microphones.
  4. Acoustic sensing and monitoring.
  5. Home security systems.
  6. Industrial automation and control.
  7. Robotics and drones.
  8. Musical instruments and sound effects.
  9. Electronic toys and games.
  10. Alarm systems

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Thickness 3.36 mm
Diameter 15 mm
Resonant Frequency 10 +/- 0.5 kHz
Resonant Impedance 100 ohms max
Static Capacitance 8000 pF +/- 30%
Sound Pressure Level 85 dB at 10 cm
Input Voltage 30 Vp-p max
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Shipment Weight 0.01 kg
Shipment Dimensions 5cm x 5cm x 2cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 15mm Piezo Ceramic Elements Sound Sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2237
24 Items

Specific References

EAN13
2237
