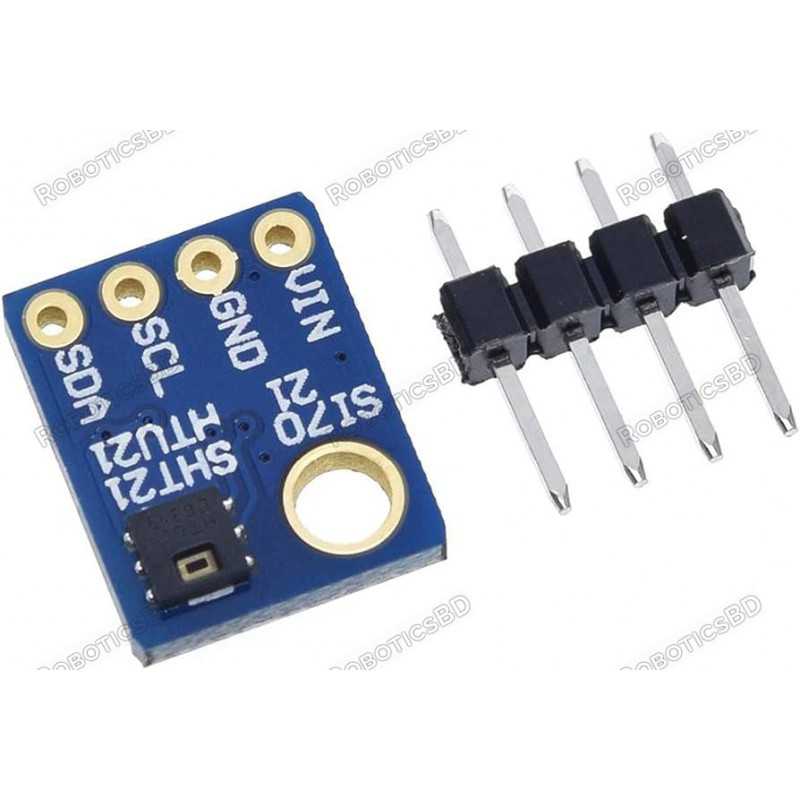

Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino Robotics Bangladesh
  • Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino Robotics Bangladesh
  • Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino
  • Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino
  • Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino

Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino

RBD-0424

  • SI7021 SHT21 HTV21
  • Wide operating voltage (1.9 to 3.6 V) – 3.3 V Recommended
  • Precision Relative Humidity Sensor ± 3% RH (max), 0–80% RH
  • High Accuracy Temperature Sensor ±0.4 °C (max), –10 to 85 °C
  • Interchangeable - No recalibration required. RoboticsBD
  • I2C Interface
BDT 330.00
BDT 330.00 BDT 330.00 BDT 330.00 BDT 330.00
Tax included Tax excluded Tax included Tax excluded
BDT 330.00 Tax excluded
BDT 330.00 Tax included
BDT 0.00 Tax
BDT 330.00 Tax excluded
BDT 0.00 Tax
BDT 330.00 Tax included
Quantity
In-Stock
58 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Temperature and Humidity Sensor is SI7021 based sensor. It is an Industrial Grade Sensor with high accuracy. The Si7021 offers an accurate, low-power, factory-calibrated digital solution ideal for measuring humidity, dew-point, and temperature, in applications ranging from HVAC/R and asset tracking to industrial and consumer platforms. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Excellent long term stability
  2. Optional factory-installed cover
  3. Low-profile
  4. Protection during reflow
  5. Excludes liquids and particulates
  6. 3x3 mm DFN Package
  7. Integrated on-chip heater
  8. I2C Interface
  9. Factory-calibrated
  10. 60 nA standby current

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. HVAC/R
  2. Thermostats/humidistats
  3. Respiratory therapy
  4. White goods
  5. Indoor weather stations
  6. Micro-environments/data centers
  7. Automotive climate control and defogging
  8. Asset and goods tracking
  9. Mobile phones and tablets. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Precision Relative Humidity ± 3% RH (max), 0–80% RH
High Accuracy Temperature ±0.4 °C (max), –10 to 85 °C
RH operating range 0 to 100%
operating range Up to –40 to +125 °C
operating voltage (1.9 to 3.6 V)
standby current 60 nA
Shipment Weight 0.020 kg
Shipment Dimensions 2 × 2 × 0.2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Tutorial and Resources

Package Includes:

1 x Si7021 Industrial High Precision Humidity Sensor I2C Interface for Arduino.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0424
58 Items

Specific References

EAN13
0424
