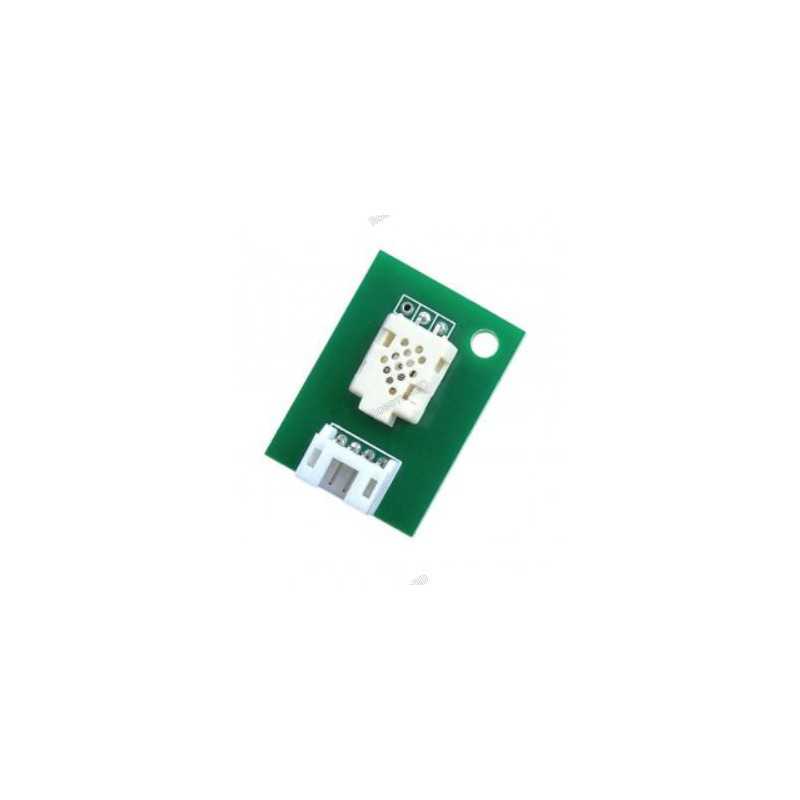

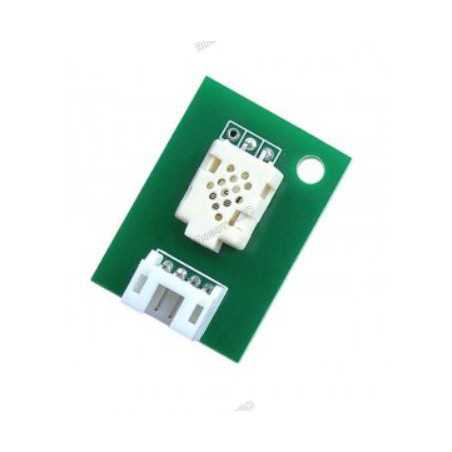

HSM-20G Analog Temperature & Humidity Sensor

RBD-0163

  • Product Type: Humidity Module Sensor
  • Working voltage range DC 5.0±0.2V
  • Output voltage range (corresponding to 0-100%RH) DC 1-3.19V
  • Test accuracy 5% RH
BDT 950.00
BDT 950.00 BDT 950.00 BDT 950.00 BDT 950.00
Tax included Tax excluded Tax included Tax excluded
BDT 950.00 Tax excluded
BDT 950.00 Tax included
BDT 0.00 Tax
BDT 950.00 Tax excluded
BDT 0.00 Tax
BDT 950.00 Tax included
Quantity
In-Stock
50 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

 Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Operating Current (Maximum) 2mA
  2. Storage RH Range 0 to 99% RH
  3. Operating RH Range 20 to 95% (100% RH intermittent)
  4. Transient Condensation < 3%RH
  5. Storage -20℃  to 70℃
  6. Operating  0℃  to 50℃

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Characteristics HSM-20G
Input voltage range DC 5.0±0.2V
Output voltage range DC 1-3.19V
Measurement Accuracy   ±5% RH
Operating Current (Maximum)   2mA
Storage RH Range   0 to 99% RH
Operating RH Range 20 to 95% (100% RH intermittent)
Transient Condensation < 3%RH
Storage -20℃  to 70℃
Operating   0℃  to 50℃
Hysteresis (RH @ 25℃)   MAX 2%RH
Long Term Stability(typical drift per year) ±1.5%
Linearity ：   Linearity
Time Response(63% step change) ：   1 min
Shipment Weight 10 gm
Shipment Dimensions 3.4x2.2x0.9

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x HSM-20G analog temperature & humidity sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0163
50 Items

Specific References

EAN13
0163
Comments (0)
Grade
No customer reviews for the moment.
