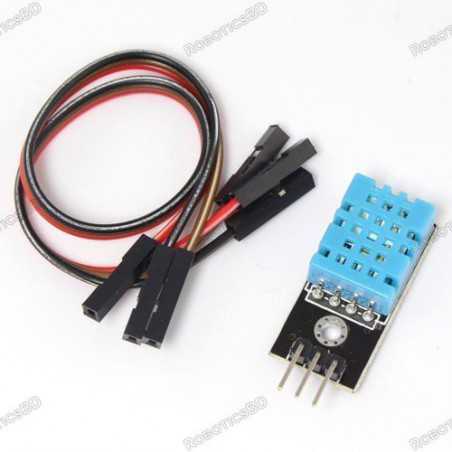

DHT11 Temperature and Relative Humidity Sensor Module for Arduino
  • DHT11 Temperature and Relative Humidity Sensor Module for Arduino

DHT11 Temperature and Relative Humidity Sensor Module for Arduino

RBD-0667

  • Input Supply Voltage (VDC): 3.3 ~ 5.
  • Supply Current (mA): measurement 0.3mA standby 60μA.
  • Temperature measurement range: 0~50 degrees.
  • Temperature measurement error: ±2 degrees.
  • Humidity measurement range: 20%~95%RH.
  • Humidity measurement error: ±5%RH. RoboticsBD
BDT 185.00
BDT 185.00 BDT 185.00 BDT 185.00 BDT 185.00
Tax included Tax excluded Tax included Tax excluded
BDT 185.00 Tax excluded
BDT 185.00 Tax included
BDT 0.00 Tax
BDT 185.00 Tax excluded
BDT 0.00 Tax
BDT 185.00 Tax included
Quantity
In-Stock
200 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The DHT11 Humidity & Temperature Sensor Module is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and outputs a digital signal on the data pin (no analog input pins needed). Its very simple to use, and libraries and sample codes are available for Arduino and Raspberry Pi. RoboticsBD

This DHT11 Humidity & Temperature Sensor Module makes is easy to connect to an Arduino or microcontroller as it includes the pull-up resistor required to use the sensor. Only three connections are required to be made to use the sensor – VCC, GND, and Output. We have also included the cables required to connect the DHT11 to a microcontroller.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Low-cost Module.
  2. 5V power and I/O.
  3. 2.5mA max current use during conversion (while requesting data).
  4. Good for 20-80% humidity readings with 5% accuracy.
  5. Good for 0-50°C temperature readings ±2°C accuracy.
  6. No more than 1 Hz sampling rate (once every second).
  7. It comes with cables to make connections to a microcontroller.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  1. Indoor Climate Monitoring: Monitor the temperature and humidity levels in homes, offices or greenhouses to ensure optimal living conditions.

  2. Agriculture: Monitor soil moisture levels and environmental conditions to optimize crop growth and yield.

  3. Weather Station: Build a weather station that measures temperature, relative humidity, and pressure to predict weather patterns.

  4. HVAC Control: Automatically control heating, ventilation, and air conditioning systems based on real-time temperature and humidity data.

  5. Humidor Control: Monitor and maintain proper humidity levels for storing cigars, wine or other items sensitive to temperature and humidity fluctuations.

Possible Pinout:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model DHT11
Input Supply voltage (VDC) 3.3 ~ 5
Supply Current (mA) measurement 0.3mA standby 60μA
Temperature range (°C) 0 ~ 50
Temperature measurement error ±2°C
Humidity measurement range 20% ~ 95%RH
Humidity measurement error ±5%RH
Resolution 16 Bit
Output form Digital output
Length (mm) 28
Width (mm) 13.5
Height (mm) 7
Weight (gm) 448
Shipment Weight 0.03 kg
Shipment Dimensions 5 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Gravity: DHT11 Temperature & Humidity Sensor For Arduino
  2. Datasheet
  3. Relative humidity to absolute humidity and vice versa calculators
  4. Interface DHT11 Module With Arduino (lastminuteengineers)

Package Includes:

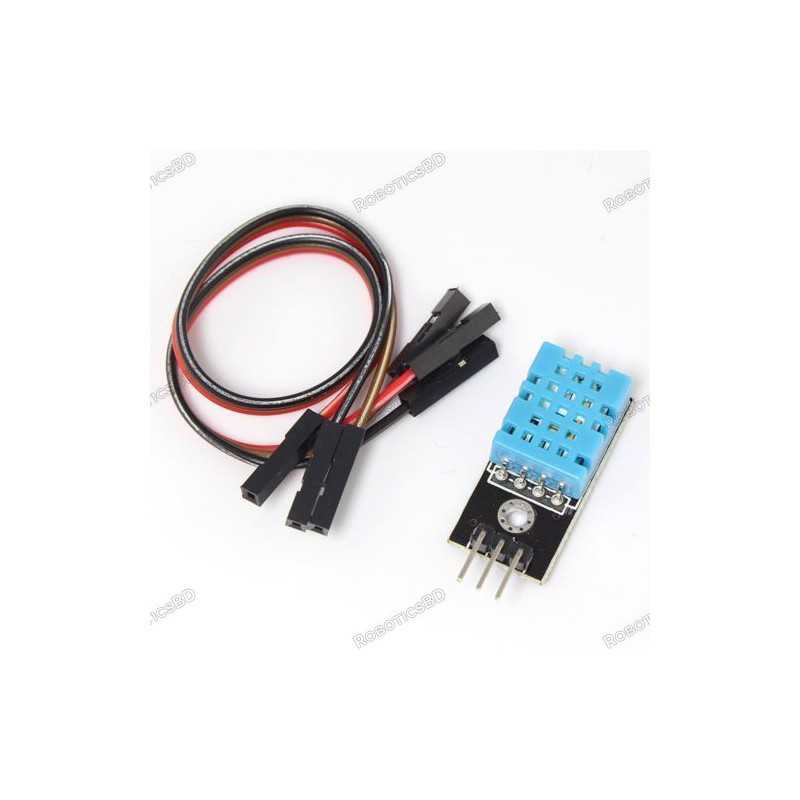

1 x DHT11 Temperature And Humidity Sensor Module.

3 x Female to Female connecting cable.

Product Details
RBD-0667
200 Items

Specific References

EAN13
0667
