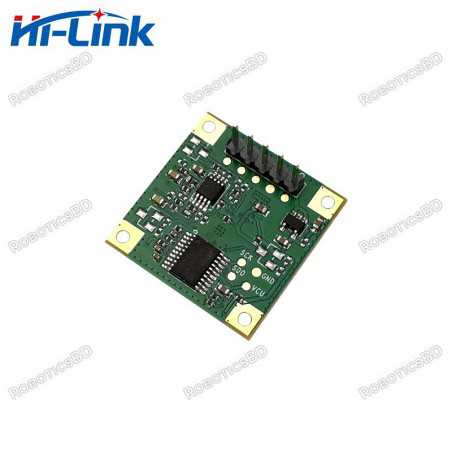

HLK-LD1115H 24Ghz Human Presence Sensor mmWave Radar Module

RBD-2227

  • High sensitivity 24GHz millimeter wave human presence detection radar module
  • Detects and accumulates small movements like human breathing
  • Higher accuracy in presence detection within a certain range
  • Not easy to miss detections
  • Detection distance: > 4m static human presence, > 16m motion
  • Range: Hanging height 3m, static body detection coverage radius 2m, mobile detection
BDT 1,850.00
BDT 1,850.00 BDT 1,850.00 BDT 1,850.00 BDT 1,850.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,850.00 Tax excluded
BDT 1,850.00 Tax included
BDT 0.00 Tax
BDT 1,850.00 Tax excluded
BDT 0.00 Tax
BDT 1,850.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The HLK-LD1115H is a highly sensitive 24GHz millimeter wave human presence detection radar module. It offers advanced functionality by not only detecting human body presence but also accumulating small movements such as breathing. This feature ensures higher accuracy in presence detection within a specified range, minimizing the chances of missed detections. With its reliable performance and versatility, this module is ideal for applications requiring precise human presence sensing.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. High sensitivity 24GHz millimeter wave radar technology
  2. Accurate detection of human presence within a certain range
  3. Accumulation of small movements like breathing for enhanced detection
  4. Wide detection distance: > 4m for static human presence, > 16m for motion detection
  5. Adaptive detection cycle for optimal performance
  6. Low power consumption: Operating current of 70mA
  7. Output serial level of 3.3V for seamless integration
  8. Versatile data format: Serial port ASCII output/high and low level
  9. Quick startup time of approximately 15 seconds

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Security systems: Reliable human presence detection for enhanced security applications.
  2. Smart homes: Integration into home automation systems for occupancy sensing and energy management.
  3. Retail analytics: Footfall analysis and customer behavior tracking for improving store layouts and marketing strategies.
  4. Building automation: Efficient control of lighting, HVAC, and energy management based on occupancy.
  5. Industrial automation: Presence detection for automated equipment control and safety applications.
  6. Healthcare: Monitoring patient movements and occupancy in hospitals or healthcare facilities.
  7. Traffic management: People counting and occupancy monitoring for efficient traffic flow management.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Frequency 24G-24.5GHz
Modulation method CW
Detection distance > 4m static human presence detection, > 16m motion detection
Range Hanging height 3m, static body detection coverage radius 2m, mobile detection radius > 5m
Power supply 3.6-5V
Current 70mA
Output serial level 3.3V
Detection cycle Adaptive
Antenna half power angle Horizontal ±57°, vertical ±24°
Data format Serial port ASCII output/high and low level
Startup time About 15 seconds
Shipment Weight 0.05 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection radar module. The main feature of this module is that on the basis of the function of the traditional human body induction radar, it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing. Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss

Package Includes:

1 x HLK-LD1115H 24Ghz Human Presence Sensor mmWave Radar Module

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2227
10 Items

Specific References

EAN13
2227
