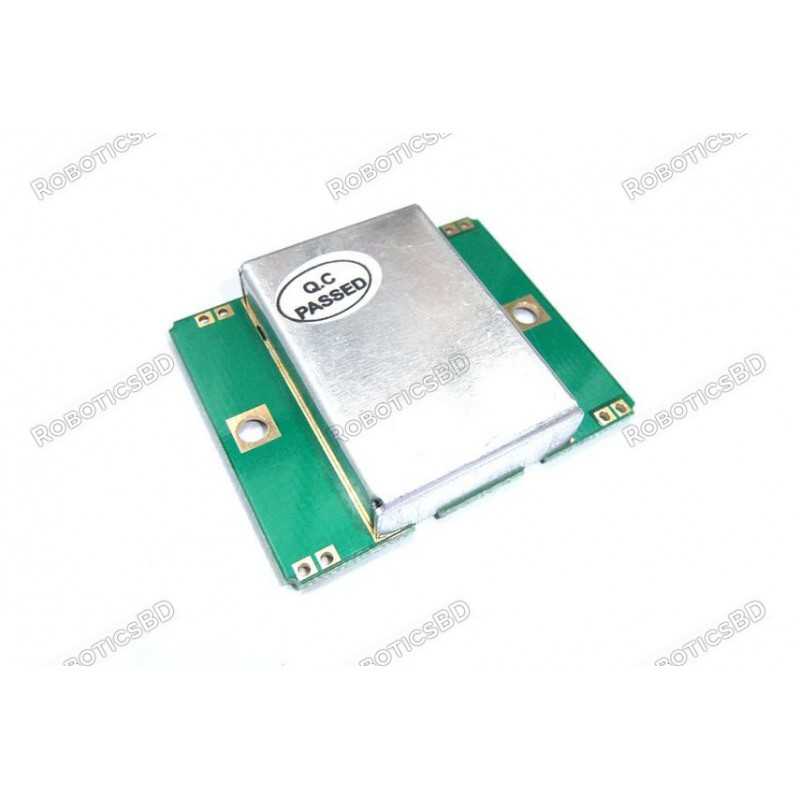

HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino
  • HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino

HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino

RBD-0411

  • Low current consumption (typical 30 mA)
  • CW or pulse operation
  • Flat profile
  • Long detection range (20 m)
  • Supply voltage: 4.75V to 5.25V
  • X-Band Frequency: 10.525 GHz
  • Minimum Power Output: 13 dBm EIRP. RoboticsBD
BDT 620.00
BDT 620.00 BDT 620.00 BDT 620.00 BDT 620.00
Tax included Tax excluded Tax included Tax excluded
BDT 620.00 Tax excluded
BDT 620.00 Tax included
BDT 0.00 Tax
BDT 620.00 Tax excluded
BDT 0.00 Tax
BDT 620.00 Tax included
Quantity
In-Stock
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

HB100 Miniature Microwave Motion Sensor is an X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, making it ideal for usage in motion detection equipment.

This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement, and automatic doors. RoboticsBD

Note: Please use a low voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Low current consumption (typical 30 mA)
  2. CW or pulse operation
  3. Flat profile
  4. Long detection range (20 m)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Supply Voltage (VDC) 4.75 ~ 5.25
X-Band Frequency(GHz) 10.525
Minimum Power Output 13 dBm EIRP
PCB Size ( L x W ) mm 45 x 38
Height (mm) 8
Shipment Weight 0.04 kg
Shipment Dimensions 6 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. http://pan.baidu.com/share/link? Shareid = 353470203 & UK = 2302102993 (remove space)

Package Includes :

1 x HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino .

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0411
13 Items

Specific References

EAN13
0411
