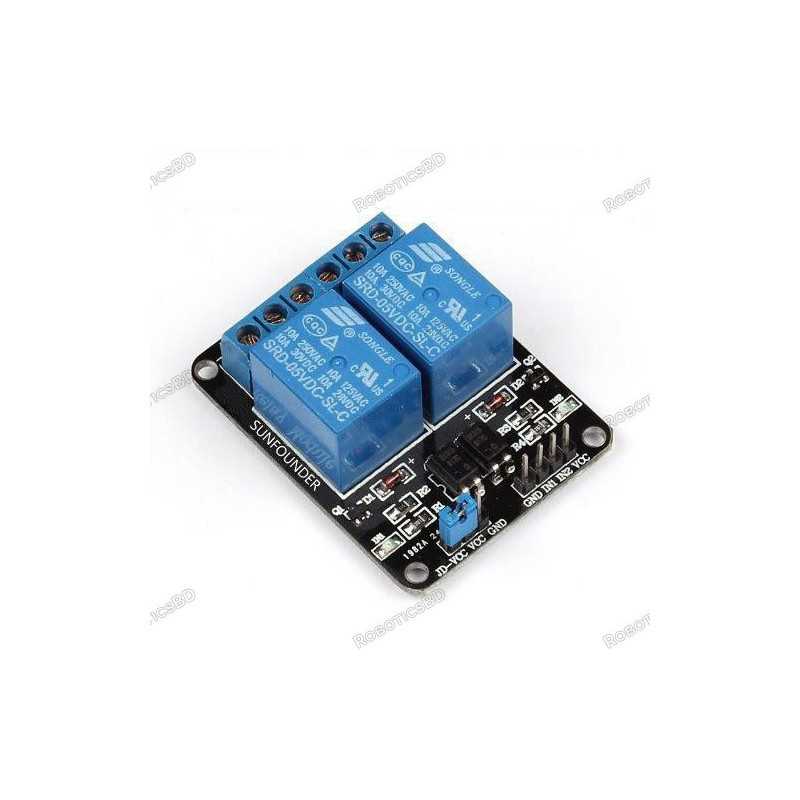

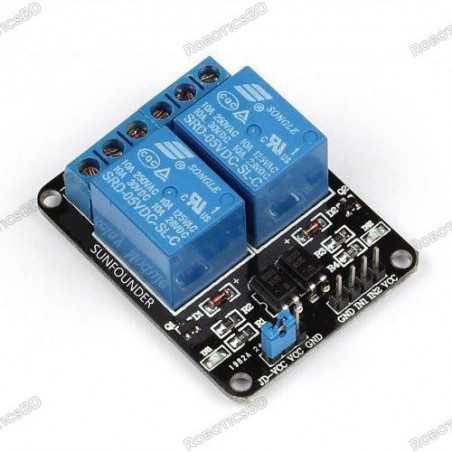

This is a 2 Channel isolated 5V 10A relay module Optocoupler for Arduino PIC ARM. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Pin Configuration:
- GND – Connect 0V to this pin.
- IN1 – Controls relay 1, active Low Relay will turn on when this input goes below about 2.0V
- IN2 – Controls relay 2, active Low Relay will turn on when this input goes below about 2.0V
- VCC – Connect 5V to this pin. Is used to power the optocouplers
About high level and low level-triggered mode:
- High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered a way;
- Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as the signal input terminal and the GND negative electrode short circuit triggered away 1-channel relay module connection. RoboticsBD
Jumper Instruction = The relay can be turned on when we connect 5v to one end and the other to -5v / Gnd, while talking about the jumper, if we short the VCC and the middle pin, then our relay will act as high level-triggered relay means that when we will apply + 5V input on its input pin it will be turned on and when the jumper will be set to “middle and GND”, it will act as a low-level triggered relay, It means that relay will be triggered when we implement the 5V / GND on its input pin. RoboticsBD
Features :
- 2 LEDs to indicate when relays are ON.
- Works with logic level signals from 3.3V or 5V devices
- Opto isolation circuitry
- Module with diode current protection, short response time
- Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Relay Type |
Low Level Trigger |
| Logic Input (V) |
3.3 ~ 5 |
| Trigger Voltage (VDC) |
5 |
| Switching Voltage (VAC) |
250@10A |
| Switching Voltage (VDC) |
30@10A |
| Length (mm) |
50.6 |
| Width (mm) |
39 |
| Height (mm) |
19.5 |
| Weight (gm) |
28 |
| Shipment Weight |
0.03 kg |
| Shipment Dimensions |
6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x 2 Channel 5V Relay Board Module.
