1 Channel 5V Relay Module Arduino
  • 1 Channel 5V Relay Module Arduino

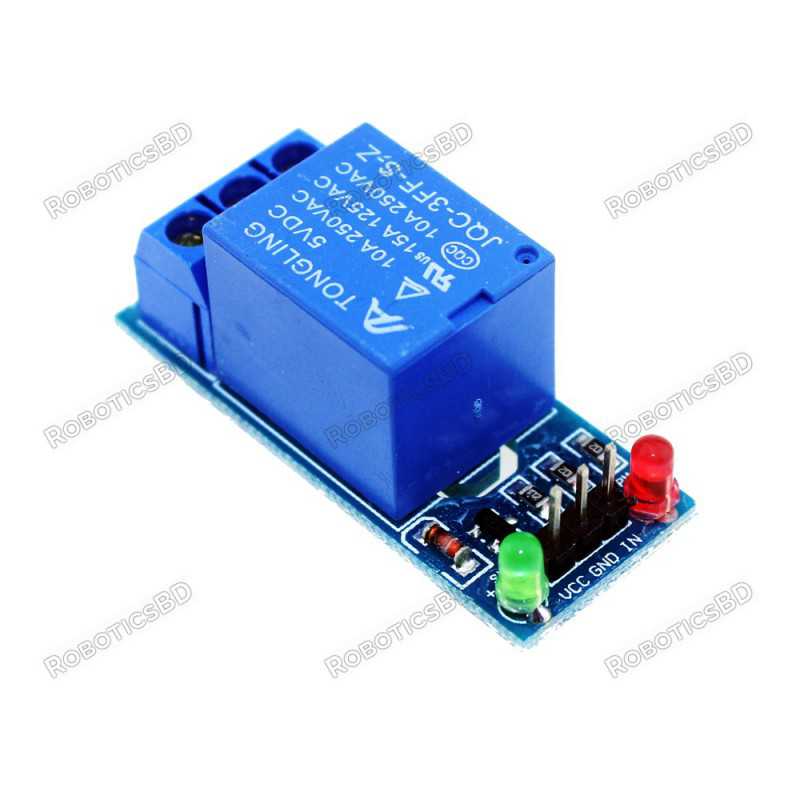

1 Channel 5V Relay Board Module

RBD-0702

  • It has a relay status indicator led Power LED(Green), 8 relay status indicator LED(Red)
  • Relay control interface by single-chip IO.
  • Low-level suction close, high-level release.
  • Easy to use, simple 3 line structure.

Note: Relay might be different from the picture as per stock

BDT 88.00
BDT 88.00 BDT 88.00 BDT 88.00 BDT 88.00
Tax included Tax excluded Tax included Tax excluded
BDT 88.00 Tax excluded
BDT 88.00 Tax included
BDT 0.00 Tax
BDT 88.00 Tax excluded
BDT 0.00 Tax
BDT 88.00 Tax included
Quantity
In-Stock
63 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

It is a 1 Channel 5V Relay Board Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 1-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current
  2. Equipped with high-current relay, AC250V 10A ; DC30V 10A
  3. It has a relay status indicator led Power LED(Green), 1 relay status indicator LED(Red)
  4. Relay control interface by single-chip IO. RoboticsBD
  5. Low-level suction close, high-level release.
  6. Easy to use, simple 3 line structure.
  7. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 3 ~ 5
Trigger Voltage (VDC) 5
Trigger Current (mA) 20
Switching Voltage (VAC) 250@10A
Switching Voltage (VDC) 30@10A
Operating Temperature (°C) -40 to 85
Opt. Relative Humidity(RH) 20% ～ 85%
Storage condition (℃) – 65 to 175
Length (mm) 43
Width (mm) 26.3
Height (mm) 17
Weight (gm) 14
Shipment Weight 0.018 kg
Shipment Dimensions 8 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 1 Channel 5V Relay Board Module.
