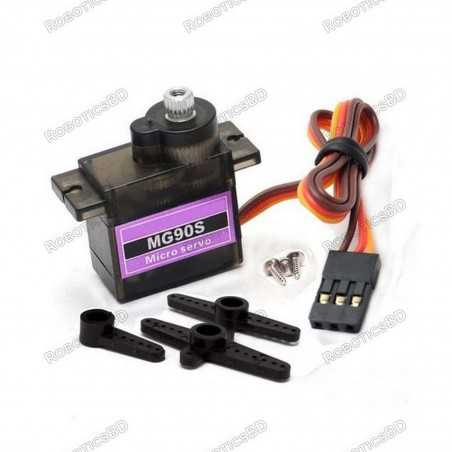

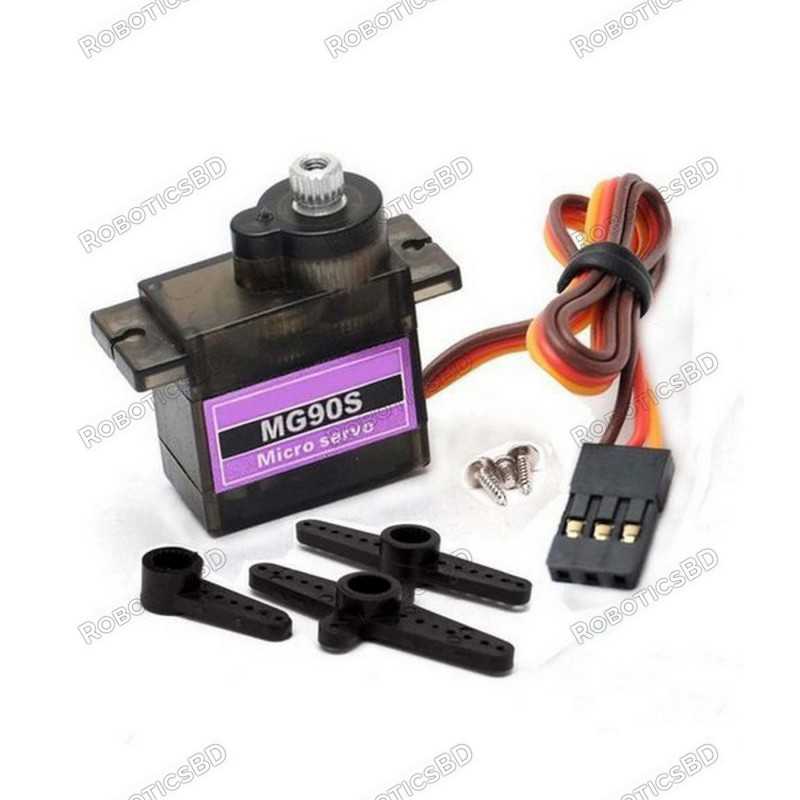

MG90s Micro Metal Servo 360 Degree Continuous Rotation Robotics Bangladesh
  • MG90s Micro Metal Servo 360 Degree Continuous Rotation Robotics Bangladesh
  • TowerPro MG90s – Micro Metal Servo
  • TowerPro MG90s – Micro Metal Servo

Servo Motor Micro MG90S 360 Degree Continuous Rotation

RBD-2360

  • Model: MG90S
  • Weight: 13 gm
  • Operating voltage: 4.8V~ 6.6V
  • Servo Plug: JR
  • Stall torque @4.8V : 1.8kg-cm
  • Stall torque @6.6V : 2.2kg-cm
  • 360 Degree Continuous Rotation

Note: The component, colour & shape of the motor may vary depending on our stock rotation.

Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.
BDT 395.00 BDT 395.00 BDT 395.00 BDT 395.00 BDT 395.00
BDT 270.00 Save BDT 125.00
BDT 270.00 BDT 270.00 BDT 270.00 BDT 270.00
Tax included Tax excluded Tax included Tax excluded
BDT 395.00 BDT 270.00 Tax excluded
BDT 395.00 BDT 270.00 Tax included
BDT 0.00 BDT 0.00 Tax
BDT 395.00 BDT 270.00 Tax excluded
BDT 0.00 BDT 0.00 Tax
BDT 395.00 BDT 270.00 Tax included
Quantity
In-Stock
95 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.

  1. As the name implies, a "continuous rotation" servo cannot be controlled in terms of degree; it will rotate continuously either in the forward or reverse direction. However, you can control its speed. The code for operating a continuous rotation servo differs from that of a regular servo.
  2. To achieve continuous rotation to the left, use the command myServo.write(0). For rotation to the right, employ myServo.write(180). To halt the servo's movement, you'll need to find the exact value. You can try different values around the middle, such as myServo.write(90) or myServo.write(95), to determine the stopping point.

Enjoy controlling your robot and exploring its capabilities!

Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power
Wire Description

RED – Positive

Brown – Negative

Orange – Signal

General Specification
Model MG90S
Weight(gm) 13
Operating Voltage (VDC) 4.8 ~ 6.6
Operating Speed @4.8V 0.10sec/60°
Operating Speed @6.6V 0.08sec/60°
Stall Torque @ 4.8V (Kg-Cm) 1.8
Stall Torque @6.6V (Kg-Cm) 2.2
Operating Temperature (°C) 0 to 55
Dead Band Width ( μs) 1
Rotational Degree 360º Continuous Rotation
Servo Plug JR
Cable Length (cm) 25
Length (mm) 12.4
Width (mm) 22.8
Height (mm) 32.5
Shipment Weight 0.017 kg
Shipment Dimensions 8 × 6 × 3 cm

Package Includes :

1 x MG90s Micro Metal Servo 360 Degree Continuous Rotation

Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws

Product Details
RBD-2360
95 Items

Specific References

EAN13
2360
