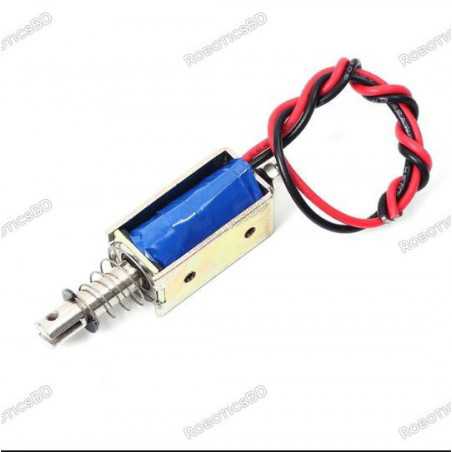

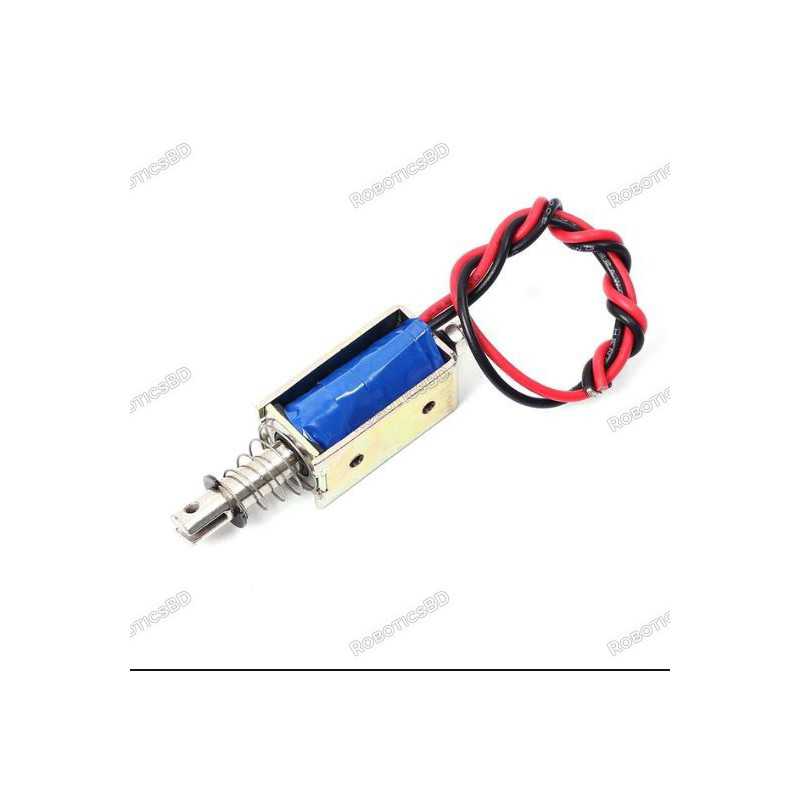

DC 6V Push-Pull Solenoid electromagnet, Push-Pull Type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Used widely in home appliances, vending machines, a game machine, auto door locks.
This DC 6V 10mm 5N Push-Pull Solenoid Electromagnet can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on.
It is steady, durable and energy-saving, and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.
Note: The mounting holes on this solenoid are actually 1.6mm in diameter. This will allow you to tap for an M2 screw. Also, although the datasheet lists a throw of 6mm, the actual throw appears to be closer to 4.5mm.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Iron Body Material
- High-quality ultra-compact electric lock.
- Rustproof, durable, safe, convenient to use.
- Suction tightly sucks the iron, thus locking the door.
- Designed with the open frame type and mount board, high power.
- Easy to install for the electric door lock or other automatic door lock systems with the mounting board
- Applicable for being installed in the escape door or fire door electronic controlled system.
- Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
DC 6V 10mm 5N |
| Rated Operating Voltage (VDC) |
6V |
| Operation Mode |
Push-Pull (Normally Closed) |
| Holding Force (N) |
5 |
| Length (mm) |
57 |
| Width (mm) |
16 |
| Height (mm) |
15 |
| Weight (gm) |
33 |
| Shipment Weight |
0.036 kg |
| Shipment Dimensions |
6 × 4.5 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC6V
