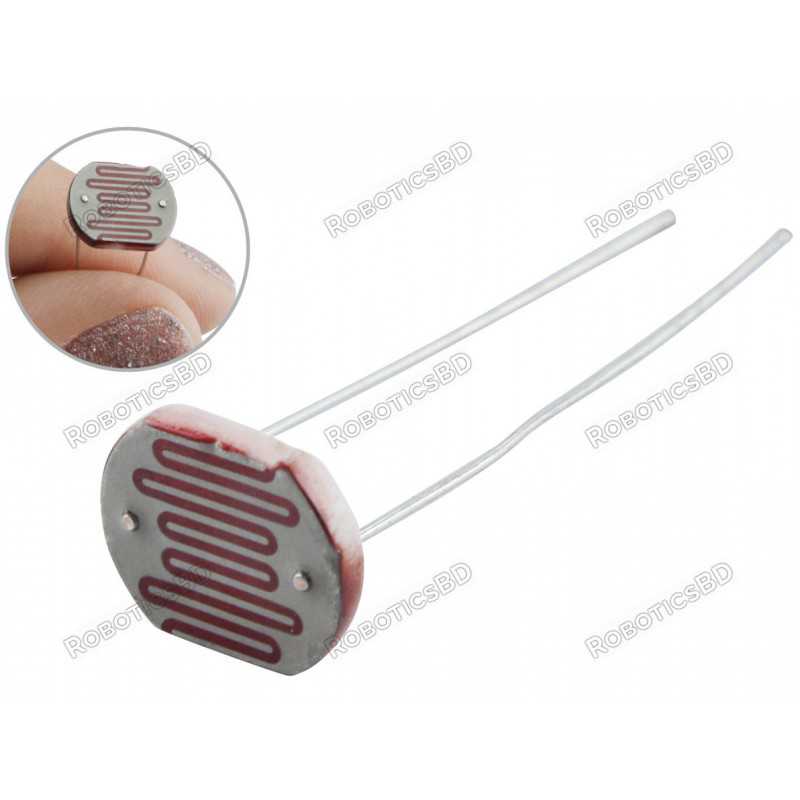

LDR 10-12 mm Light Depending Resistor

RBD-1512

  • LDR 10 mm Light Depending Resistor
  • Low-cost sensor device
  • Wide spectral response
  • Use in fire alarms, smoke alarms, control street light
  • Low cost.
  • Ambient Temperature Range.
  • Wide spectral response.
BDT 45.00
BDT 45.00 BDT 45.00 BDT 45.00 BDT 45.00
Tax included Tax excluded Tax included Tax excluded
BDT 45.00 Tax excluded
BDT 45.00 Tax included
BDT 0.00 Tax
BDT 45.00 Tax excluded
BDT 0.00 Tax
BDT 45.00 Tax included
Quantity
In-Stock
58 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The resistance of 10mm Light Sensitive Photoresistor LDR changes with the change in the ambient light exposed on the surface of the sensor. As the light on the sensor increases then the resistance across the two leads decreases. Light Dependent Resistor is a type of photocell which finds excellent use in light sensing device application, whether it is automatic outdoor light ON/OFF switch or indoor automatic light switch; moreover, the 10mm LDR or photoresistor sensor works best in both light and dark regions. The photo-resistors are a staple of electronics. If you need a way to sense the level of ambient light then there is no easier way to do it without an LDR/photo-resistor. RoboticsBD

Two Cadmium Sulphide Photoconductive Cells with spectral responses similar to that of the human eye. Cell resistance falls with increasing light intensity. Applications of this product include smoke detection, automatic lighting control, batch counting, and burglar alarm systems. Furthermore, some of the applications are given below. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

 Analog Applications:

  1. Camera exposure control
  2. Auto slide focus – dual cell
  3. Photocopy machines – the density of the toner
  4. Colorimetric test Equipment
  5. Densitometer
  6. Electronics scales – dual cell
  7. Automatic gain control – modulated light source
  8. Automated rearview mirror

Digital Applications:

  1. Automatic headlight dimmer
  2. Nightlight control
  3. Oil burner flame out
  4. Streetlight control
  5. Absence/presence (beam breaker)
  6. Position sensor

Other applications:

  1. Annunciator
  2. Camera automatic photometry
  3. Electronic toy
  4. Industrial control
  5. Light control
  6. Light control lamp
  7. Photoelectric control
  8. Switch

Features:

  1. Spectral peak: 560nm
  2. Maximum voltage: 250 VDC
  3. Maximum wattage: 200 mW
  4. Operating temperature: -30˚C ~ +70˚C
  5. Light resistance (10 Lux): 10-20 KΩ
  6. Dark resistance: 2 MΩ
  7. Resistance illumination: 3
  8. Response time: 20ms (Rise), 30ms (Down)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Diameter (mm) 10
No. of Pins 2
Dark resistance max. 20MΩ
Spectral Peak 560 nm
Light Resistance (10 lux) 10 – 20 kΩ
Maximum Voltage(V) 250 VDC
Maximum Power (W) 0.2
Operating Temperature (°C) -30˚C to 70˚C
Resistance Illumination 3
Response Time ( μS) 20(Rise), 30 (Down)
Shipment Weight 0.01 kg
Shipment Dimensions 4 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x LDR 10 mm Light Depending Resistor.
