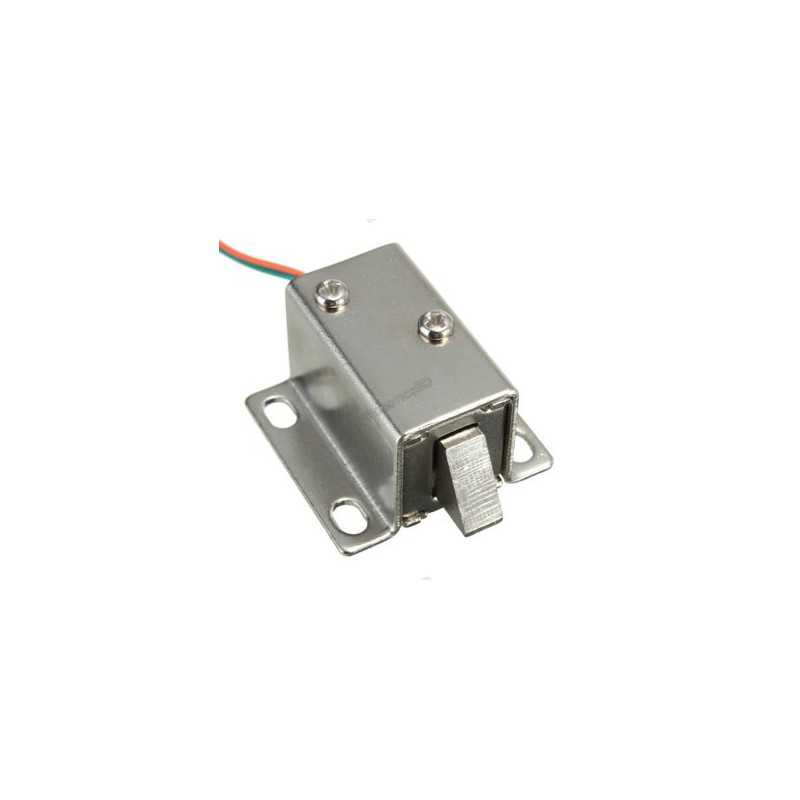

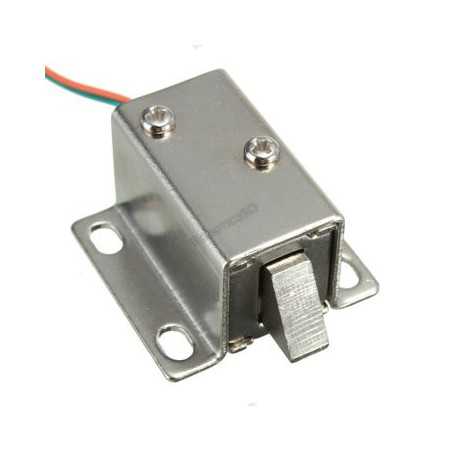

DC 12V Solenoid Electric Door Lock
  • DC 12V Solenoid Electric Door Lock
  • DC 12V Solenoid Electric Door Lock
  • DC 12V Solenoid Electric Door Lock

DC 12V Solenoid Electric Door Lock

RBD-0442

  • Holding force: 0.25 kg
  • Energized forms: intermittent
  • Unlocking time: 1s
  • Dimensions: 27 x 29 x 18 mm (LxWxH)
  • High quality ultra-compact electric lock. RoboticsBD
BDT 750.00
BDT 750.00 BDT 750.00 BDT 750.00 BDT 750.00
Tax included Tax excluded Tax included Tax excluded
BDT 750.00 Tax excluded
BDT 750.00 Tax included
BDT 0.00 Tax
BDT 750.00 Tax excluded
BDT 0.00 Tax
BDT 750.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This DC 12V Cabinet Door Lock Electric Lock Assembly Solenoid can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on. It is steady, durable, and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing. RoboticsBD

Note: Take care of polarity while making the connection without connector (i.e. Red wire should be connected to the positive and Black wire to negative.) Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

 Features:

  1.  Iron Body Material. RoboticsBD
  2. High quality ultra-compact electric lock.
  3. Rustproof, durable, safe, convenient to use.
  4. Suction tightly sucks the iron, thus locking the door. RoboticsBD
  5. Applicable for being installed in the escape door or fire door electronic controlled system.
  6. Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model DC 12V Cabinet Door Lock
Rated Operating Voltage (VDC) 12
Rated Current (mA) 0.80A.
Power Consumption (Watt) 9.6
Holding Force (N) 2.45
Unlocking Time 1 sec
Body Material Iron Metal
Energized forms Intermittent
Cable Length (cm) 25
Weight (gm) 150
Dimensions (mm) LxWxH 27 x 29 x 18
Shipment Weight 0.18 kg
Shipment Dimensions 9 × 5 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x DC 12V Solenoid Electric Door Lock.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0442
4 Items

Specific References

EAN13
0442
