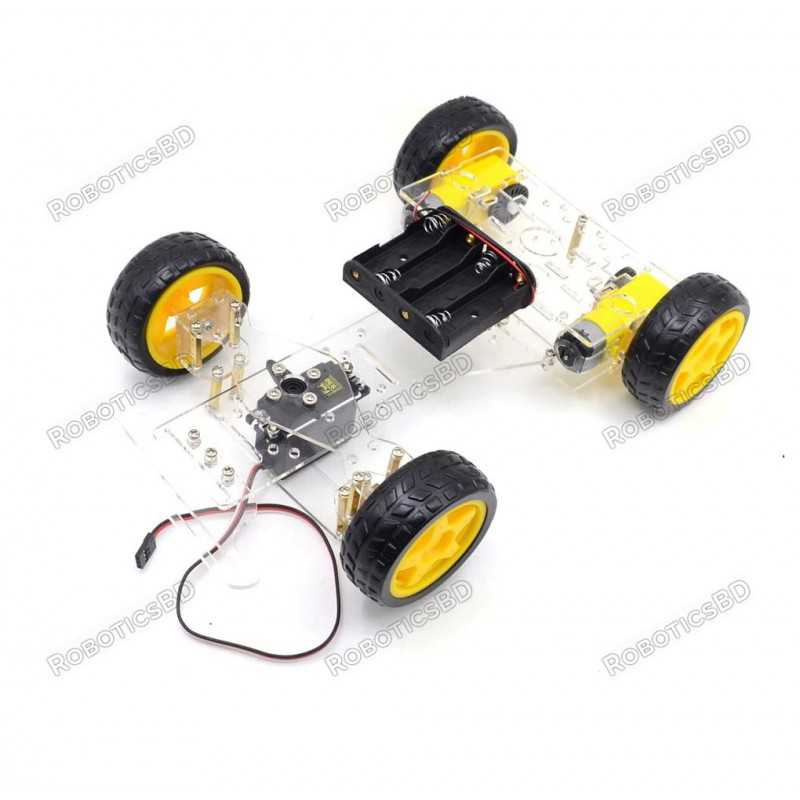

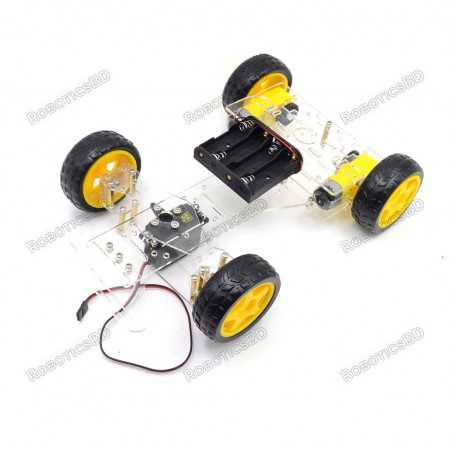

Smart Steering Robot Car Chassis

RBD-1894

  • Very handy and simple in assembling/disassembling.
  • Strong components so as to withstand extreme terrain conditions.
  • Transparent Car Chassis.
  • Attractive design.
  • Smart Steering Robot Car Chassis
BDT 2,499.00
BDT 2,499.00 BDT 2,499.00 BDT 2,499.00 BDT 2,499.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,499.00 Tax excluded
BDT 2,499.00 Tax included
BDT 0.00 Tax
BDT 2,499.00 Tax excluded
BDT 0.00 Tax
BDT 2,499.00 Tax included
Quantity
In-Stock
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a 4 wheel drive Smart Robot Chassis Kit. It comes with the four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent to create dynamic handling of the components mounted on your robotic vehicle. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Very handy and simple in assembling/disassembling.
  2. Strong components to withstand extreme terrain conditions.
  3. Transparent Car Chassis.
  4. Attractive design.
  5. Double-layer structure, much of mounting holes, enough space
  6. Easy to install a variety of control panels, sensors
  7. Educational toys, Ideal for the DIY platform

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Specifications:

For BO Motor:
  1. Operating Voltage: 3V~6V DC
  2. Gear Ratio 1:48
  3. No-load speed(5V): about 208RPM
  4. Rated Torque: 0.8 Kg.cm @ 5V
  5. Load current: 170mA (when it is 4.5V)
  6. Size: 70 x 23  x 18 mm
  7. Weight:28g
  8. Shaft Length: 10 mm
  9. Shaft Type: 6 mm, Double-D

Specifications

For Wheel:
  1. Loading Capacity: Max 2.5Kg
  2. Double D-hole For BO Motor: 6 mm
  3. Weight: 34g
  4. Wheel Diameter: 65 mm
  5. Color: Black (Tyre), Yellow (Rim)
  6. Wheel width: 27 mm
  7. Body Material: Plastic
  8. Grip Material: Rubber

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Motor Operating Voltage (VDC) 3 ~ 6
Motor Shaft Length (mm) 8.5
Motor Shaft Diameter (mm) 5.4mm-(round side) and 3.5mm-(flat side)
Motor Rated Speed After Reduction (RPM) 200
Motor Rated Torque (Kg-Cm) 0.8
Motor Gearbox Shape Straight
Motor Length (mm) 70
Motor Width (mm) 19
Motor Height (mm) 22
Motor Weight (gm) 28 (each)
Wheel Color Black (Tyre)
Yellow (Rim)
Wheel Internal Diameter(ID)(mm) 51
Wheel Load Capacity(Kg/Wheel) 2.5
Wheel Tyre Grip Material Rubber
Wheel Body Material Plastic
Wheel Diameter(mm) 65
Wheel Width (mm) 27
Wheel Weight(gm) 34 (each)
Shipment Weight 0.4 kg
Shipment Dimensions 30 × 18 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package includes:

1 x Smart Steering Robot Car Chassis

Product Details
RBD-1894
13 Items

Specific References

EAN13
1894
