The MG996R 10kg Servo is a type of motor that is commonly used in robotics and control applications. It is a high-torque servo motor that is capable of delivering up to 10kg of force. The motor is fully metal, meaning that it has a metal casing and gears, which provides durability and strength. The MG996R Servo is widely used in robotic projects such as arms and legs for humanoid robots, remote control vehicles, and model aircraft. It operates using pulse-width modulation (PWM) and is controlled by sending a series of pulses to the motor, which determines the position of the motor shaft. The motor can rotate over a range of approximately 180 degrees, making it ideal for a variety of applications where precise control of motion is required.. Featured By RoboticsBD.
When you purchase TowerPro motors in Bangladesh, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Gear Type: Metal gear
- Servo Plug: JR (Fits JR and Futaba)
- Servo arms & screws included, and fit with Futaba servo arm
- It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
- Upgraded servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
Application:
- Robotics: Used in the construction of robotic arms, legs, and other robotic components for precise control of movement.
- Remote control vehicles: Ideal for controlling the movement of wheels, steering, and other components in remote control cars and boats.
- Model aircraft: Used for control of rudder, ailerons, and other control surfaces in model aircraft.
- Robotics education: Used in educational robotics kits for hands-on learning and experimentation.
- Industrial automation: Used in industrial applications where precise control of movement is required, such as pick-and-place operations and material handling systems.
Wire Description
RED – Positive
Brown – Negative
Orange – Signal
| General Specification |
| Operating Voltage (VDC) |
4.8 ~ 6.6 |
| Temperature Range |
0- 55℃ |
| Stall Torque @ 4.8V (Kg-Cm) |
9.4 |
| Stall Torque @6.6V (Kg-Cm) |
11 |
| Operating Speed @4.8V |
0.19sec/60° |
| Operating Speed @6.6V |
0.15sec/60° |
| Dead Bandwidth |
1uS |
| Gear Type |
Metal |
| No. of teeth |
25 |
| Length (mm) |
40.7 |
| Width (mm) |
19.7 |
| Height (mm) |
42.9 |
| Weight (gm) |
55 |
| Shipment Weight |
0.059 kg |
| Shipment Dimensions |
5 × 3 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Operating voltage: Ensure that the servo is operated within the specified voltage range.
- Operating current: Ensure that the servo is not subjected to excessive current, which can damage the motor.
- Load capacity: Do not exceed the specified load capacity of the servo, as this can cause damage or reduce its life span.
- Environmental conditions: Ensure that the servo is used within the specified temperature and humidity range.
- ESD protection: Implement proper electrostatic discharge (ESD) protection to prevent damage to the servo.
Package Includes:

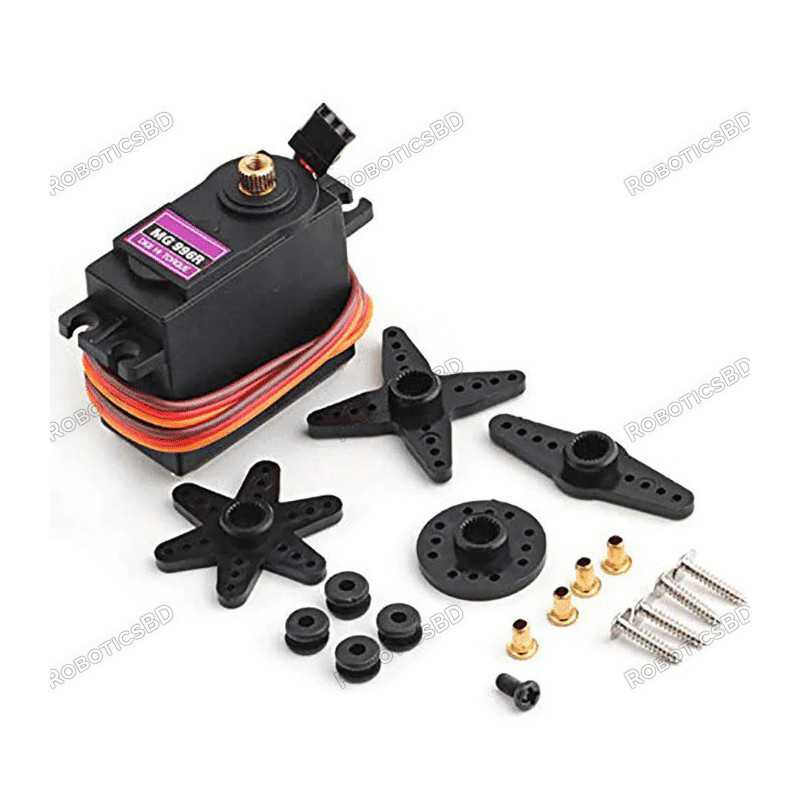

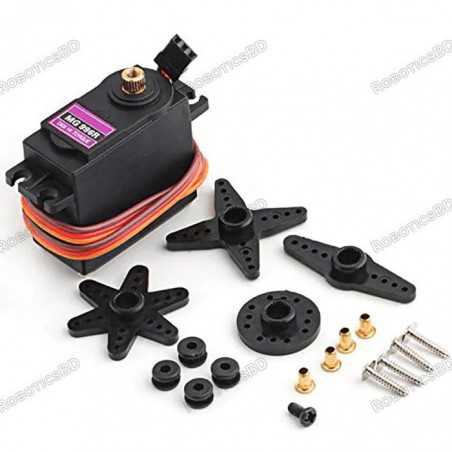

1 x MG996R Digital High Torque Servo Motor and Accessories Parts(as shown in the image)
