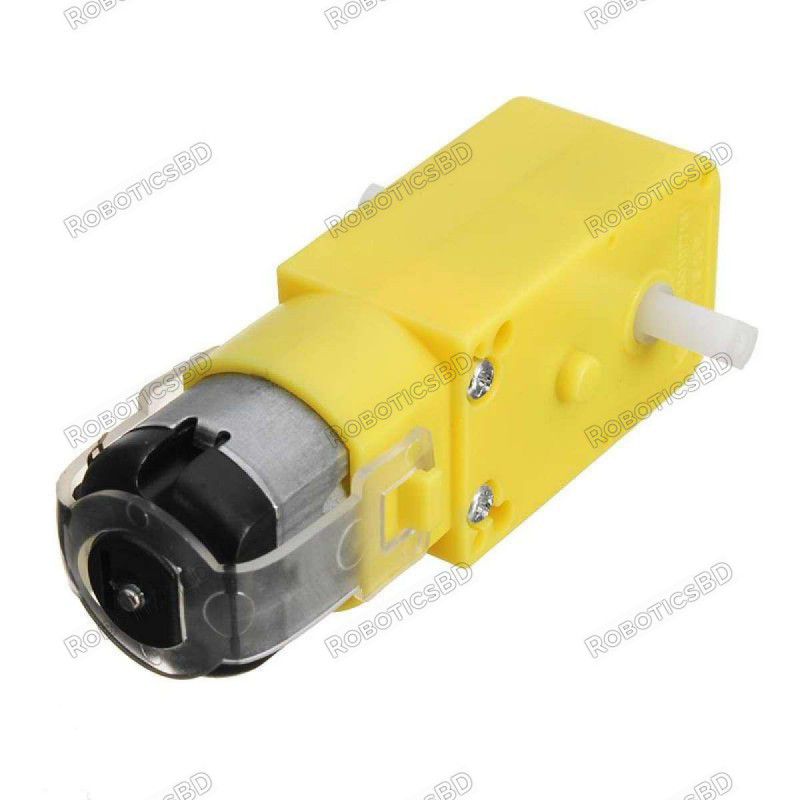

6V TT DC Gear BO Motor Dual Shaft

RBD-1061

  • Low density: lightweight, low inertia.
  • Capability to absorb shock and vibration as a result of elastic compliance.
  • Ability to operate with minimum or no lubrication, due to inherent lubricity.
  • The relatively low coefficient of friction.
  • Operating Voltage(VDC): 3~12
  • Shaft Length (mm): 8.5
  • Shaft Diameter (mm): 5.5 (Double D-type)
  • No Load Current: 40-180mA.
  • Rated Speed(After Reduction): 100-150 RPM
  • Rated Torque: 0.35 Kgcm
BDT 85.00
BDT 85.00 BDT 85.00 BDT 85.00 BDT 85.00
Tax included Tax excluded Tax included Tax excluded
BDT 85.00 Tax excluded
BDT 85.00 Tax included
BDT 0.00 Tax
BDT 85.00 Tax excluded
BDT 0.00 Tax
BDT 85.00 Tax included
Quantity
In-Stock
185 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 100-150 RPM BO Motor Plastic Gear Motor – BO series straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors. RoboticsBD

Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors. RoboticsBD

Low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots.

The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Cost-effectiveness of the injection-molding process.
  2. Elimination of machining operations.
  3. Low density: lightweight, low inertia.
  4. Uniformity of parts.
  5. Capability to absorb shock and vibration as a result of elastic compliance.
  6. Ability to operate with minimum or no lubrication, due to inherent lubricity.
  7. The relatively low coefficient of friction.
  8. Corrosion-resistance; elimination of plating, or protective coatings.
  9. The quietness of operation.
  10. Tolerances often less critical than for metal gears, due in part to their greater resilience.
  11. Consistency with the trend to greater use of plastic housings and other components.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 3 ~ 12
Shaft Length (mm) 8.5
Shaft Diameter (mm) (Double D-type)
5.5
No Load Current (mA) 40-180mA.
Rated Speed After Reduction (RPM) 100-150
Rated Torque (Kg-Cm) 0.35
Weight (gm) 28
Dimensions in mm (LxWxH) 65 x 23 x 27
Shipment Weight 0.03 kg
Shipment Dimensions 8 × 4 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 6V TT DC Gear BO Motor Dual Shaft

Product Details
RBD-1061
185 Items

Specific References

EAN13
1061
