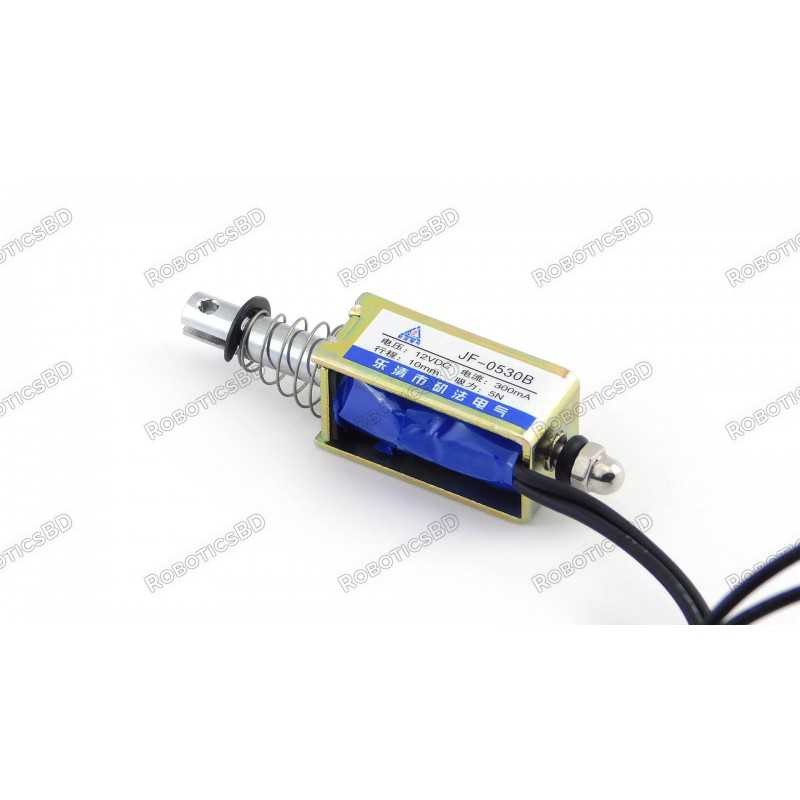

JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V
  • JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V
  • JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V

JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V

RBD-0432

  • Iron Body Material
  • High quality ultra-compact electric lock. RoboticsBD
  • Rustproof, durable, safe, convenient to use.
  • Suction which tightly sucks the iron, thus locking the door.
  • Designed with the open frame type and mount board, high power.
  • Easy to install for the electric door lock or other automatic door lock systems with the mounting board
  • Applicable for being installed in the escape door or fire door electronic controlled system.
  • Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.
BDT 590.00
BDT 590.00 BDT 590.00 BDT 590.00 BDT 590.00
Tax included Tax excluded Tax included Tax excluded
BDT 590.00 Tax excluded
BDT 590.00 Tax included
BDT 0.00 Tax
BDT 590.00 Tax excluded
BDT 0.00 Tax
BDT 590.00 Tax included
Quantity
In-Stock
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DC 12 V 300mA Push Pull Solenoid electromagnet, 10mm 6N  Push Pull Type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Used widely in home appliances, vending machines, a game machine, auto door lock. RoboticsBD

This DC 12 V 300mA 10mm 5N Push Pull Solenoid Electromagnet can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on.

It is steady, durable and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: Take care of polarity while making the connection without connector (i.e. Red wire should be connected to the positive and Black wire to negative.)

Specification:

  1. Rated Current : 300mA;Action Form : Pull Push Type; Rated Stroke & Force : 10mm, 5N
  2. Body Size : 30 x 15x 15mm/1.2"x 0.59"x 0.59"(L*W*H);Plugger Dia. : 56mm/ 2.2"
  3. Cable Length : 20cm/ 7.9";Material : Metal, Electronic Parts
  4. Weight : 32g;Package Content : 1 x DC Solenoid Electromagnet
  5. Product Name : DC Solenoid Electromagnet; Model : JF-0530B;Rated Voltage : DC 12VHigh quality ultra-compact electric lock. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model JF-0630B DC 12 V 5N Push Pull Solenoid Electromagnet
Rated Operating Voltage (VDC) 12
Operation Mode Push-Pull (Normally Closed)
Rated Current (mA) 300
Holding Force (N) 6
Energized forms Intermittent
Cable Length (cm) 15
Mounting Hole(mm) M2
Shaft Hole Diameter 3
Dimensions (mm) LxWxH 30 x 14 x 19
Weight(gm) 46
Shipment Weight 0.07 kg
Shipment Dimensions 10 × 5 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V
