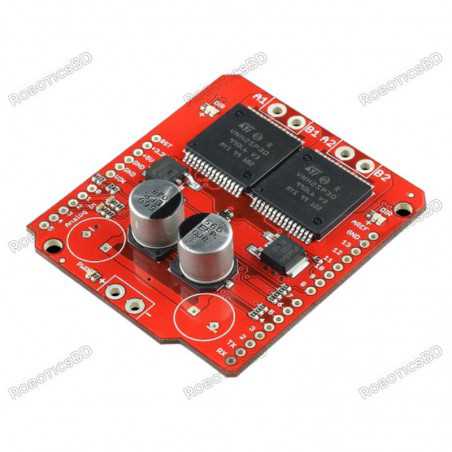

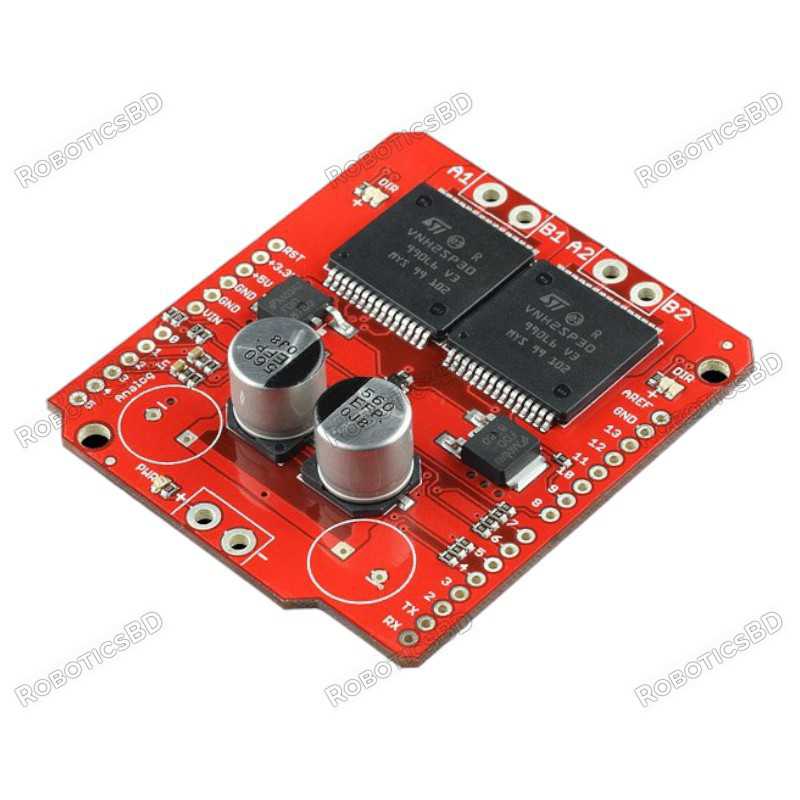

Monster Moto Shield Dual VNH2SP30 Motor Driver Module 30A

RBD-0377

  • Voltage Max: 16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown. RoboticsBD
BDT 6,650.00
BDT 6,650.00 BDT 6,650.00 BDT 6,650.00 BDT 6,650.00
Tax included Tax excluded Tax included Tax excluded
BDT 6,650.00 Tax excluded
BDT 6,650.00 Tax included
BDT 0.00 Tax
BDT 6,650.00 Tax excluded
BDT 0.00 Tax
BDT 6,650.00 Tax included
Quantity
In-Stock
11 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A) is essentially a ramped up version of Ardumoto motor driver shield. For this Monster Moto Shield, It is replaced the L298 H-bridge with a pair of VNH3ASP30 full-bridge motor drivers. RoboticsBD

It is also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

The L298 H-bridge is no longer available in the Motor Driver Shield Monster Moto since it has been replaced for a pair of VNH2SP30 full-bridge motor drivers. The Motor Driver Shield Monster Moto has been enhanced to drive a pair of high-current motors while the VIN and motor have been adjusted for connecting larger wires more easily. RoboticsBD

VNH3ASP30 is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high side driver and two low side switches.

The high side driver switch is designed using the STMicroelectronics well known and proven proprietary VIPower M0 technology which permits efficient integration on the same die of a true Power MOSFET with an intelligent signal/protection circuitry. The VIN and motor out are pitched for 5mm screw terminals, making it easy to connect larger gauge wires. INA and INB control the direction of each motor, and the PWM pins turn the motors on or off.

For the VNH3ASP30, the current sense (CS) pins will output approximately 0.13 volts per amp of output current. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection Diagram:

Connection Diagram

Note:

  1. When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm. RoboticsBD

Features :

  1. Current sensing available to Arduino analog pin
  2. MOSFET on-resistance: 19 mΩ (per leg)
  3. Maximum PWM frequency: 20 kHz
  4. Thermal Shutdown
  5. Under voltage and Overvoltage shutdown. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Driver Model VNH3ASP30
Operating Voltage (VDC) 12 ~ 16
Peak Current (A) 14
Continuous Current (A) 30
No. of Channels 2
Battery Protection Mode Yes
Over-Current Protection (A) Yes
Thermal Protection Yes
Maximum PWM frequency 20 kHz
LED Indicator Yes
Cooling Fan No
Arduino Sheild Yes
Dimensions in mm (LxWxH) 60 x 54 x 12
Weight (gm) 19
Shipment Weight 0.022 kg
Shipment Dimensions 5 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Schematic
  2. Datasheet
  3. Github

Package Includes :

1 x Monster Moto Shield Dual VNH2SP30 Motor Driver Module 30A.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0377
11 Items

Specific References

EAN13
0377
