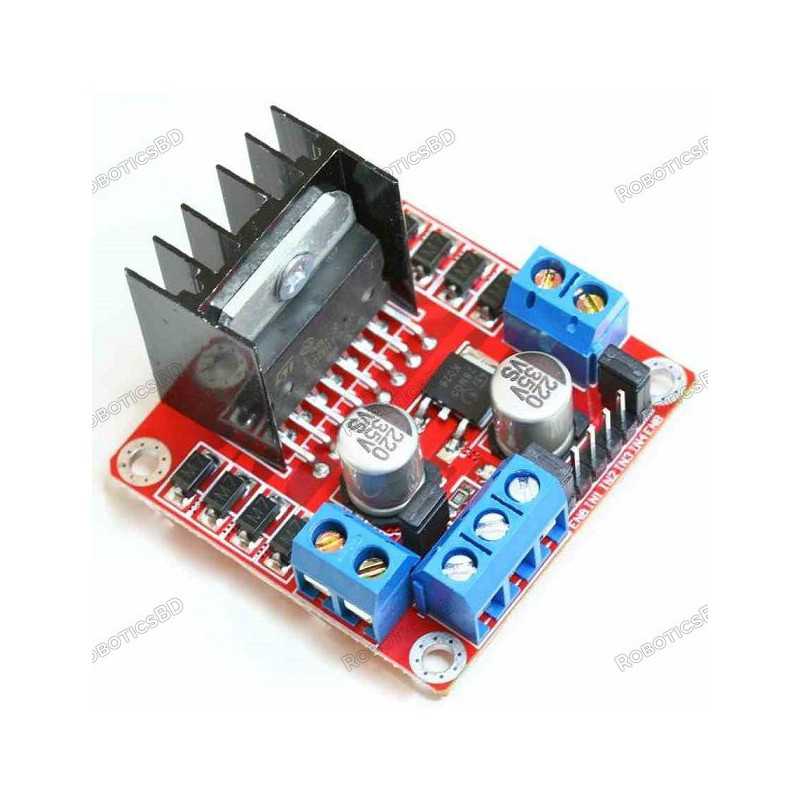

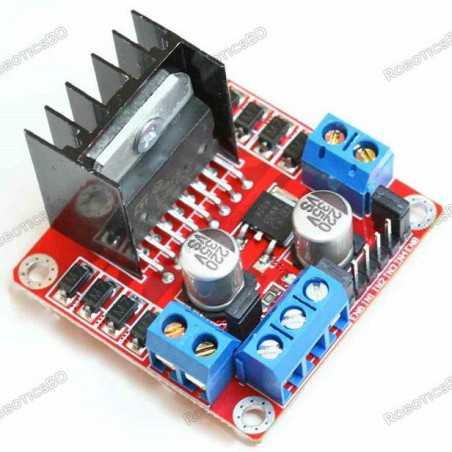

L298N H-Bridge Dual Motor Driver, Stepper Motor Driver
  • L298N H-Bridge Dual Motor Driver, Stepper Motor Driver
  • L298N H-Bridge Dual Motor Driver, Stepper Motor Driver

L298N H-Bridge Dual Motor Driver, Stepper Motor Driver

RBD-0376

  • Current Sense for each motor. RoboticsBD
  • Heatsink for better performance.
  • Power-On LED indicator.
  • Double H bridge Drive Chip: L298N.
  • Operating Voltage(VDC): 5~35
  • Peak Current (A): 2
  • Continuous Current (A): 0-36mA
  • No. of Channels: 2
  • Over-Current Protection (A): Yes
  • Thermal Protection: Yes
BDT 195.00
BDT 195.00 BDT 195.00 BDT 195.00 BDT 195.00
Tax included Tax excluded Tax included Tax excluded
BDT 195.00 Tax excluded
BDT 195.00 Tax included
BDT 0.00 Tax
BDT 195.00 Tax excluded
BDT 0.00 Tax
BDT 195.00 Tax included
Quantity
In Stock
428 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

L298N 2A Based Motor Driver is a high power motor driver perfect for driving DC Motors and Stepper Motors

It uses the popular L298 motor driver IC and has an onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control. RoboticsBD

This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection Diagram

Connection L298n H bridge

Usage:

H-bridges are typically used in controlling motors speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.

Pins Details

Out 1: Motor A lead out
Out 2: Motor A lead out
Out 3: Motor B lead out
Out 4: Mo (Can actually be from 5v-35v, just marked as 12v)
GND: Ground
5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)
In1: Enable Motor A
In2: Enable Motor A
In3: Enable Motor B
In4: Enable Motor B
EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section) RoboticsBD

Features:

  1. Maximum motor supply current: 2A per motor.
  2. Current Sense for each motor.
  3. Heatsink for better performance.
  4. Power-On LED indicator.
  5. Double H bridge Drive Chip: L298N. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Driver Model L298N 2A
Operating Voltage (VDC) 5 ~ 35
Peak Current (A) 2
Continuous Current (A) 0-36mA
No. of Channels 2
Over-Current Protection (A) Yes
Thermal Protection Yes
LED Indicator Yes
Cooling Fan No
Arduino Sheild No- can be used with Wire connection
Dimensions in mm (LxWxH) 44 x 44 x 28
Weight (gm) 25
Max power  25W.
Shipment Weight 0.03 kg
Shipment Dimensions 7 × 7 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Interface L298N DC Motor Driver Module with Arduino (lastminuteengineers)

Package Includes :

1 x L298N H-Bridge Dual Motor Driver, Stepper Motor Driver.
