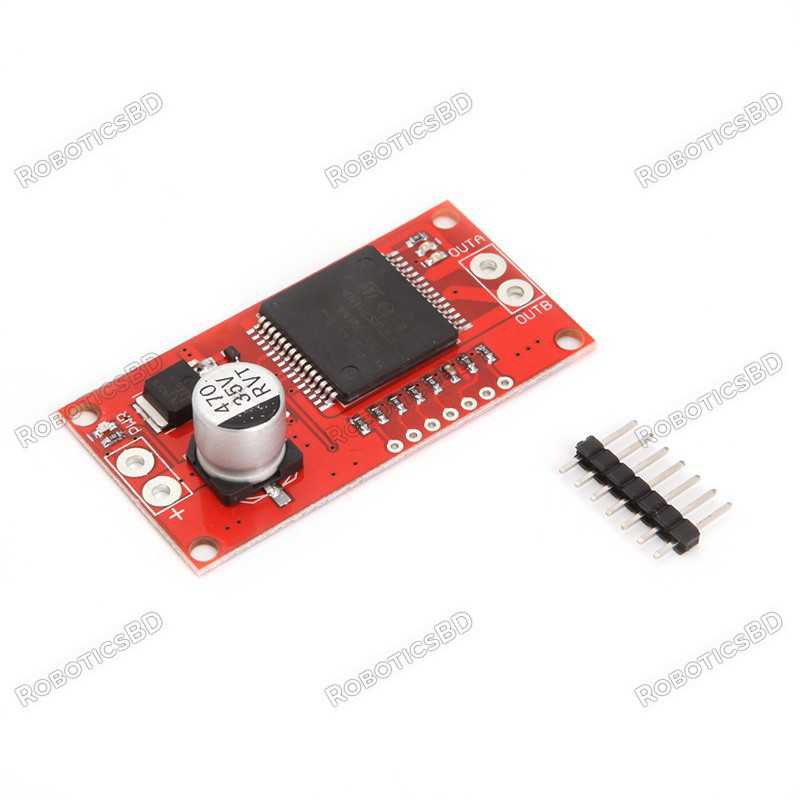

30A Mini VNH2SP30 Stepper Motor Driver Monster Moto Module For Arduino

RBD-0557

  • Voltage Max: 16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown. RoboticsBD
BDT 2,750.00
BDT 2,750.00 BDT 2,750.00 BDT 2,750.00 BDT 2,750.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,750.00 Tax excluded
BDT 2,750.00 Tax included
BDT 0.00 Tax
BDT 2,750.00 Tax excluded
BDT 0.00 Tax
BDT 2,750.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Monster Moto Shield VNH3SP30 Motor Driver 14A is essentially a ramped up version of our Ardumoto motor driver shield. For this Monster Moto Shield, we’ve replaced the  L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers.

We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD



Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm. RoboticsBD

Features :

  1. Current sensing available to Arduino analog pin
  2. MOSFET on-resistance: 19 mΩ (per leg)
  3. Maximum PWM frequency: 20 kHz
  4. Thermal Shutdown
  5. Undervoltage and Overvoltage shutdown. RoboticsBD

Connecting with Arduino:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Driver Model Monster Moto Shield VNH2SP30
Operating Voltage (VDC) 12 ~ 16
Peak Current (A) 30
Continuous Current (A) 14
No. of Channels 1
Over-Current Protection (A) Yes
Thermal Protection Yes
LED Indicator Yes
Cooling Fan No
Arduino Sheild No- can be used with Wire connection
Dimensions in mm (LxWxH) 55 x 28 x 12
Weight (gm) 15
Maximum PWM frequency 20 kHz
Shipment Weight 0.018 kg
Shipment Dimensions 6 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Interfacing VNH2SP30 Monster Motor Driver with Arduino (https://electropeak.com/)

Package Includes:

1 x 30A Mini VNH2SP30 Stepper Motor Driver Monster Moto Module For Arduino

7 x male pin header.
