32 Channel USB UART Servo Motor Controller
  • 32 Channel USB UART Servo Motor Controller
  • 32 Channel USB UART Servo Motor Controller

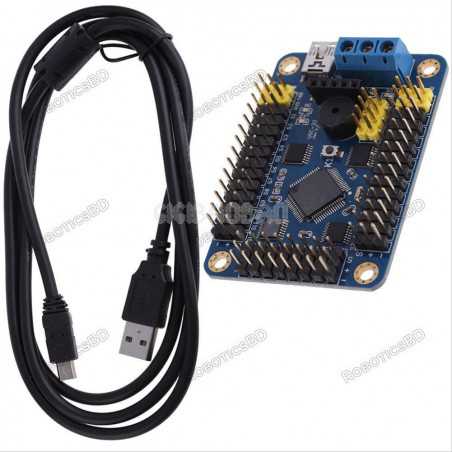

Torobot 32 Channel USB UART Servo Motor Controller

RBD-0306

  • Baud rate (USB): 115200
  • Baud rate (bluetooth, UART): 9600
  • Storage Flash capacity: 16M
  • Mode to choose: 4 types
  • Simultaneous controlling servo number: 32 channel
  • Max action groups: 256 groups
  • Communication agreement: UART
  • Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android
BDT 4,400.00
BDT 4,400.00 BDT 4,400.00 BDT 4,400.00 BDT 4,400.00
Tax included Tax excluded Tax included Tax excluded
BDT 4,400.00 Tax excluded
BDT 4,400.00 Tax included
BDT 0.00 Tax
BDT 4,400.00 Tax excluded
BDT 0.00 Tax
BDT 4,400.00 Tax included
Quantity
In-Stock
12 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

USB 32Ch Servo Motor Controller Board, support PS2 controller WIFI V7.2 support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user has the latest firmware.

Up to 32 servo motors can control at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (Arduino, 51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. You can also download instructions to the servo motor controller for offline operation.

The biggest advantage is that you can use the computer software to control the robot or control your servo steering. It can control 32 servo motors at the same time, with high precision (1 μs),  and adopt the 32-bit original package CPU, internal integration USB communication interface, high stability, and precision.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Detail Specifications:

  1. Powerful MCU
  2. High controlling accuracy
  3. Offline operation function
  4. Identify baud rate automatically
  5. Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board. And it can be chosen automatically. With the USB reverse protection, it can protect your computer from been hurting by the reverse USB.)
  6. Servos power supply: DC (depends on the motors, generally 5V DC)
  7. Control channels: 32. (can be controlled at the same time and the accuracy can be adjusted)
  8. Communication Input: USB or UART (TTL or USART). (The Bluetooth or some other wireless module can be used to make the controlling)
  9. Signal Output: PWM (Accuracy 1us).
  10. Servo motor resolution: 1us, 0.09 degrees.
  11. Baud Rate: 9600,19200,28400,57600,115200,128000(recognized automatically)
  12. Servo motors supported: Futaba, Hitec or some other Servos Motor controlled by PWM.
  13. Dimensions: 63.5mm x 43.5mm x 1.6mm.
  14. Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software)
  15. Flash memory: onboard 512K ROM (If every command is used to control the 32 motors at the same time, more than 500 commands can be saved.)

Features :

  1. With 16M storage, can store thousands of indications, 256 groups of actions
  2. Servo interface has three colors pins to different from each other
  3. No need to programme
  4. Simple indication operation
  5. 32 bits high efficient low consumption CPU
  6. Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android
  7. Can support bluetooth, WIFI wireless control
  8. Adding signal isolation to protect control board
  9. PS2 wireless handle
  10. Compatible with all supporting serial port single chipUsing Micro USB interface

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsB

General Specification
Operating Voltage 5V
CPU voltage 3.3V
Servo motor input voltage 4.2-7.2V
CPU 32 Bits
Baud rate (USB) 115200
Baud rate (Bluetooth, UART) 9600
Storage Flash capacity 16M
Mode to choose 4 types
Simultaneously controlling servo number 32 channel
Max action groups 256 groups
Communication UART
Shipment Weight 0.06 kg
Shipment Dimensions 10 × 6 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

Torobot 32 Channel USB UART Servo Motor Controller Manual

Package Includes :

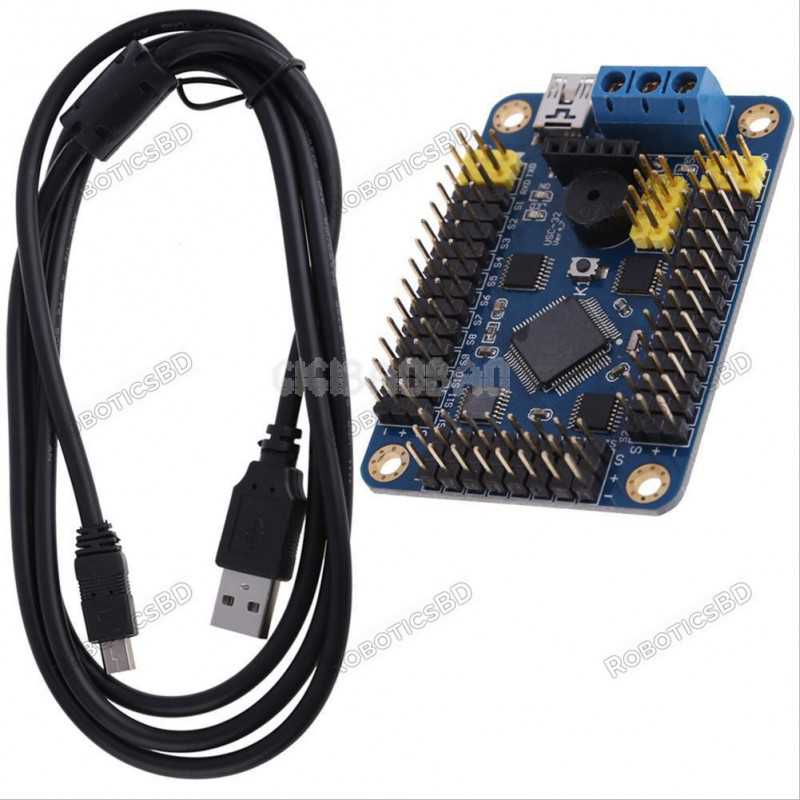

1 x Torobot 32 Channel USB UART Servo Motor Controller

1 x USB to Micro USB Cable-0.5 Meter.
