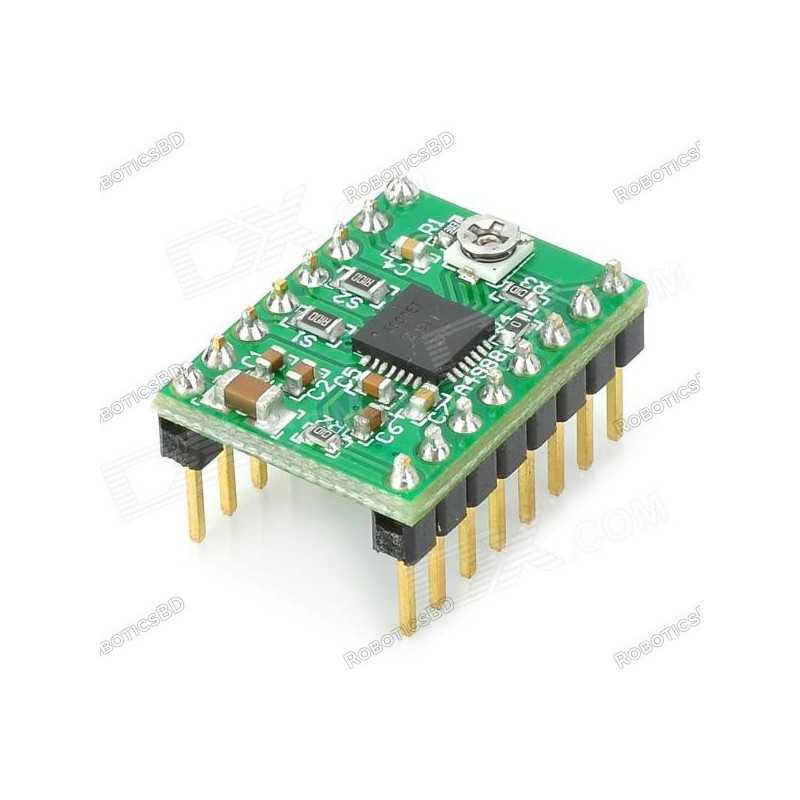

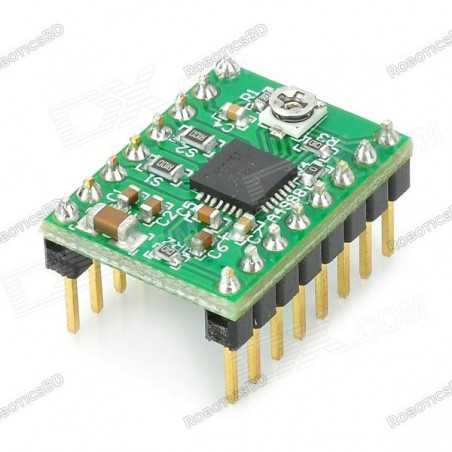

A4988 StepStick Stepper Motor Driver Module
  • A4988 StepStick Stepper Motor Driver Module
  • A4988 StepStick Stepper Motor Driver Module

A4988 StepStick Stepper Motor Driver Module

RBD-0435

  • Supply Voltage : 8-35 VDC.
  • Current : 1.0A  (no heatsink ).
  • Current : 2.0A (with heat-sinking).
  • logic input : 3 – 5.5V .
  • Automatic current decay mode detection / choice.
  • Mixed with slow current decay mode.
BDT 180.00
BDT 180.00 BDT 180.00 BDT 180.00 BDT 180.00
Tax included Tax excluded Tax included Tax excluded
BDT 180.00 Tax excluded
BDT 180.00 Tax included
BDT 0.00 Tax
BDT 180.00 Tax excluded
BDT 0.00 Tax
BDT 180.00 Tax included
Quantity
In-Stock
65 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The A4988 driver Stepper Motor Driver is a complete micro-stepping motor driver with built-in converter, easy to operate. It operates from 8 V to 35 V and can deliver up to approximately 1 A per phase without a heat sink or forced air flow (it is rated for 2 A per coil with sufficient additional cooling).

There are no phase sequence tables, the high-frequency control interface programming etc. The application of A4988 interface is very suitable for a complex microprocessor is not available or overload. In the stepping operation, the chopping control in the A4988 automatically selects the current decay mode (slow or mixed). The mix decay current control scheme can reduce the audible motor noise, increased step accuracy, and reduced power consumption.

Provide internal synchronous rectification control circuitry, in order to improve the pulse width modulation (PWM) power consumption during operation.

Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Don’t need special power-up sequencing. A4988 uses surface mount QFN package (ES), the size is 5 mm × 5 mm, nominal overall package height is 0.90 mm, with an exposed thermal pad to enhance the heat dissipation function. RoboticsBD  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Automatic current decay mode detection/choice.
  2. Mixed with slow current decay mode.
  3. The low power dissipation of synchronous rectifier. RoboticsBD
  4. Internal UVLO(ultra voltage lockout).
  5. Crossover current protection.
  6. Thermal shutdown circuit.
  7. Ground fault protection.
  8. Loading and short circuit protection.
  9. The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Supply Voltage (VDC) 8 ~ 35
Operating Current (A) 1.0A(No Heatsink ), 2.0A (with Heat-Sinking)
Logic Input (V) 3 ~ 5.5
Five Step Mode full, 1/2, 1/4, 1/8 and 1/16.
Shipment Weight 0.08 kg
Shipment Dimensions 5 × 5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. Datasheet

Package Includes :

1 x A4988 Stepper Motor Driver- Normal quality.

1 x Heat sink.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0435
65 Items

Specific References

EAN13
0435
