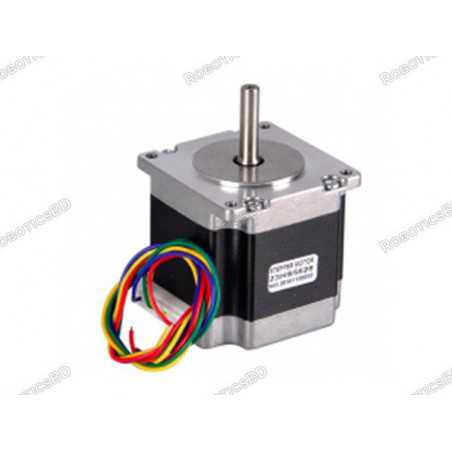

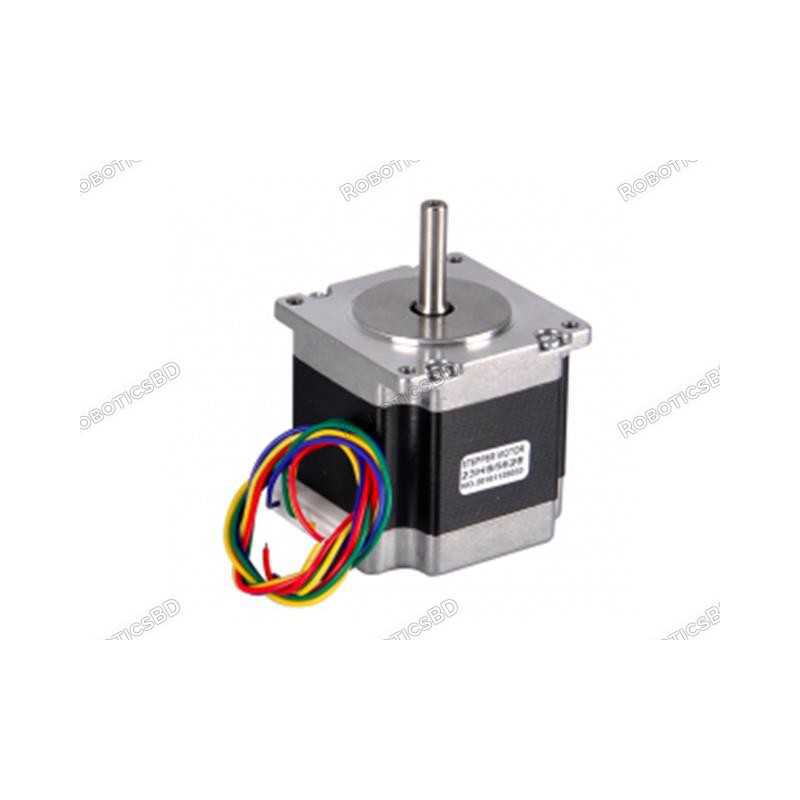

Nema 23 23HS5628 Stepper Motor

They are the special choice for heavy-duty CNC machines. They overpass the NEMA17 Stepper Motors because of their inherent operational advantages including comparably high torque at high speeds. This NEMA 23 Stepper Motor is a powerhouse when it comes to larger machines that require extra torque. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor can provide 10.1 kg-cm of torque at 2.8A current per phase. RoboticsBD

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

One can equip them on CNC Milling, CNC Router like application which demands extra torque than provided by NEMA17 Stepper Motors.

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry. RoboticsBD

The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.

This motor is compatible with the bracket on Robotics Bangladesh. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note :

1. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor dimensions and weight may have a ±2% error. RoboticsBD
2. Resonances can occur because of improper installment.
3.  Not easy to operate at extremely high speeds.

Application :

1. CNC/3D Printers
2. High Torque related projects (Not dependent on speed)
3. Read: A+, Green: A-, Yellow: B+ and Blue: B-.
4. Requires a H-Bridge or L4988 type stepper stick to drive.
5. Control of this motor is less costly because of the exclusion of complex control circuitry.
6. The speed is proportional to the frequency of the input pulses.

Features :

1. Comparably more powerful than NEMA17 motors.
2. The input pulse decides the rotation angle of the motor.
3. High accuracy of around 3 to 5% a step. RoboticsBD
4. It provides good starting, stopping, and reversing.
5. Control of this motor is less costly because of the exclusion of complex control circuitry.
6. The speed is proportional to the frequency of the input pulse
7. Nema 23 Format
8. Bi-Polar Stepper Motor
9. 200 Steps or 1.8 degrees per Step
10. Removable JST-XH connector (4 wires, but 6 pin connector)
11. Loose wires for easy screw terminal mounting

Specification :

1. Step Angle: 1.8 degrees
2. Steps per Revolution: 200
3. 2-Phase
4. Voltage: 2.5VDC
5. Current: 2.8Amps
6. Phase Resistance: 0.9Ω
7. Phase Inductance: 2.5mH
8. Holding Torque: 12.6 K-CM / 165 OZ-In
9. Moment of Inertia: 300 g.cm^2
10. Weight: 0.7kg
