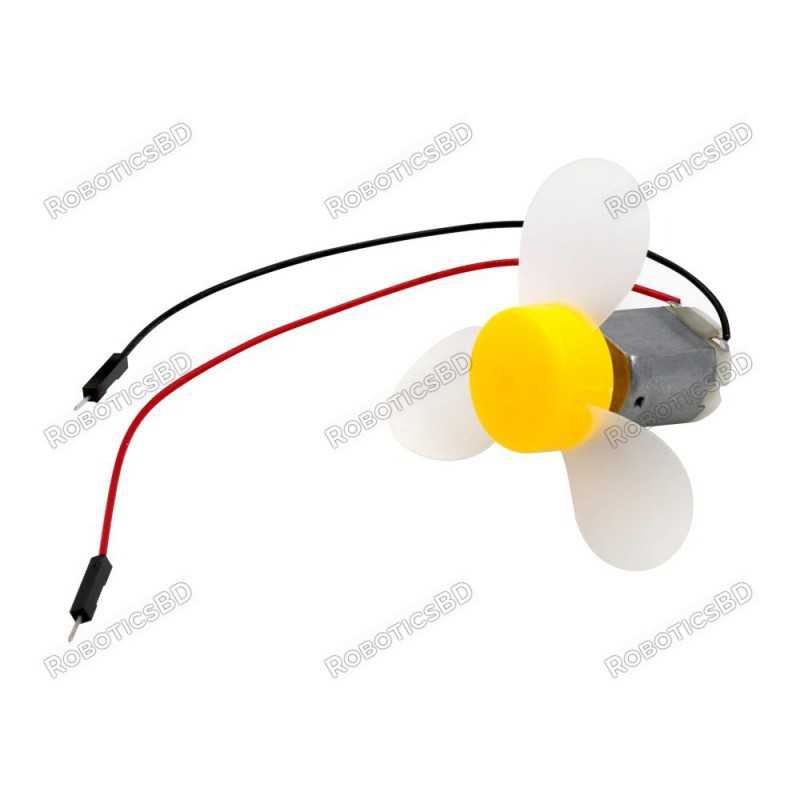

3V DC Hobby Motor with Fan

DESCRIPTION

These small 1.5 – 3V DC motors are an inexpensive option for use in science projects or for general experimenting with DC motors.  The soft fan blade allows the speed of the motor to be better observed and won’t hurt or cause damage if it hits something.

PACKAGE INCLUDES:

• 3V DC motor with cable
• Soft 3-leaf fan blade

  The Jumper may become detached during shipping and require soldering with a soldering iron.

KEY FEATURES OF 3V DC HOBBY MOTOR WITH FAN:

• 1.5 to 3VDC operation typical.  6VDC max
• cable with Dupont style male jumper pins installed
• 60mA current draw @ 3V typical.

OUR EVALUATION RESULTS:

These small ‘130 size’ DC motors are designed to work from 1.5 to 3VDC for typical battery use, but they will also work fine for periods of time on 5V such as if experimenting with PWM or DC voltage for motor speed control.  Speed and current will vary with the voltage and load the motor is being operated at.

The fan blade is a simple press fit onto the shaft and allows the rotation of the motor shaft to be more easily observed which is handy when playing with speed control.  The blades are made of a soft plastic to avoid damage to fingers or things if it is bumped while spinning.

The male jumper pins make these easy to use with solderless breadboards.  Reversing the polarity of the leads will reverse the direction of the motor rotation.

The electrical connections where the wires attach, like on any small motor of this type, are subject to breaking when being flexed repeatedly.  We toss in a zip tie which can be placed around the motor and leads to strain relieve them.

Like most small hobby motors in this form factor, there are no specific provisions made for mounting.  These motors are typically clamped, glued, Velcroed or zip-tied in place.
