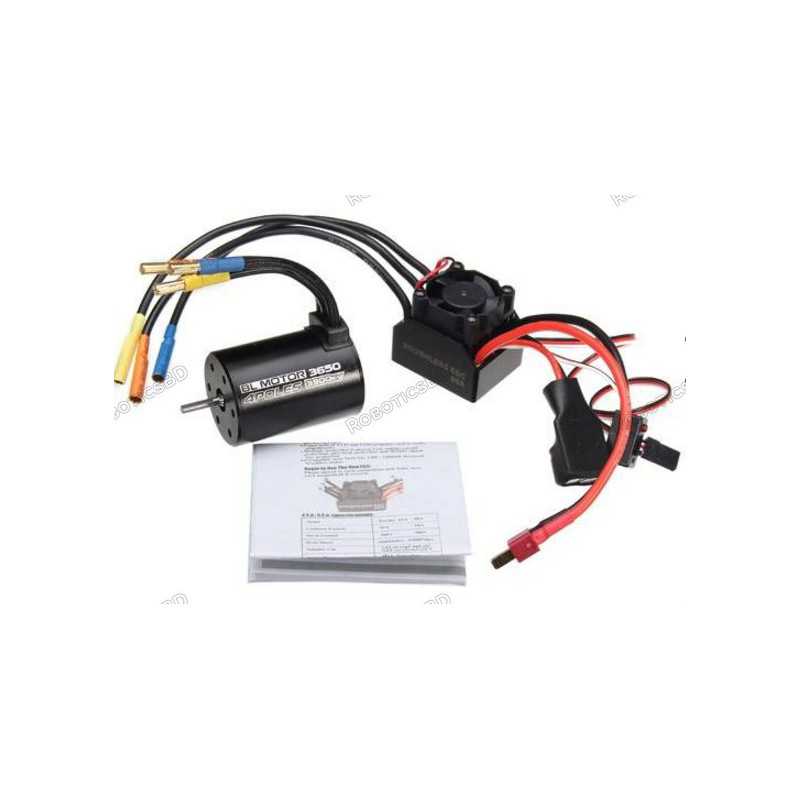

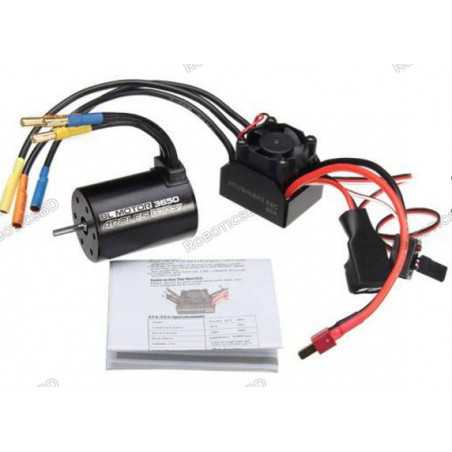

3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC

RBD-0309

  • 4 poles 12 slot Hi-torque motor design
  • CNC machined 6061 T6 windings maximizes efficiency
  • High RPM ABEC5 oversize bearings
  • Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws
  • Precision balanced rotor, smoothness for best reliability and maximum RPM

BDT 8,000.00
BDT 8,000.00 BDT 8,000.00 BDT 8,000.00 BDT 8,000.00
Tax included Tax excluded Tax included Tax excluded
BDT 8,000.00 Tax excluded
BDT 8,000.00 Tax included
BDT 0.00 Tax
BDT 8,000.00 Tax excluded
BDT 0.00 Tax
BDT 8,000.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Motor Features :

  1. 4 poles 12 slot Hi-torque motor design
  2. CNC machined 6061 T6 windings maximizes efficiency
  3. High RPM ABEC5 oversize bearings
  4. Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws
  5. Precision balanced rotor, smoothness for best reliability and maximum RPM
  6. Stator- Super Thin(0.35mm) Laminations
  7. Removable/Replaceable rotor
  8. Precision engineered for Maximum energy conversion

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Motor specification :

  1. KV: 3930KV
  2. Max RPM: 50000
  3. length: 50mm
  4. Diameters: 36mm with fins

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

ESC Features :

  1. Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
  2. Using LED program card to make adjustments.
  3. Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection
  4. Compatible with most of brushless motor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

ESC Specifications:

  1. Current: 60A
  2. Burst Current: 380A
  3. Resistance: 0.0007ohm
  4. Suitable Car: 1:10 on-road and off-road cars/trucks,SCT
  5. Motor Type: 4 Pole Sensorless brushless motor
  6. Suitable Brushless Motor: 4P SL 3650B 2Y 4350KV
  7. Battery cell:2-3S Lipo/5-12S Cell Nixx( NiMH/NiCd)
  8. BEC Output:6V/3A
  9. Dimension(without fan): 52*38*36mm
  10. Weight(g): 107g

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Motor KV: 3930KV
Motor Max RPM: 50000
Motor length: 50mm
Motor Diameters: 36mm with fins
ESC Current: 60A
ESC Burst Current: 380A
ESC Resistance: 0.0007ohm
ESC Motor Type: 4 Pole Sensorless brushless motor
ESC Battery cell: 2-3S Lipo/5-12S Cell Nixx( NiMH/NiCd)
ESC BEC Output: 6V/3A
ESC Dimension(without fan): 52*38*36mm
ESC Weight(g): 107g
Shipment Weight 0.18 kg
Shipment Dimensions 10.3x10.5x6.5

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. 3650 Brushless Motor 3930KV
  2. 60A Waterproof BEAST Series ESC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 3650 Brushless Motor 3930KV
1 x 60A Waterproof BEAST Series ESC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0309

Specific References

EAN13
0309
Attachments
Download
60A Waterproof BEAST Series ESC

60A Waterproof BEAST Series ESC

Download (4.57MB)
