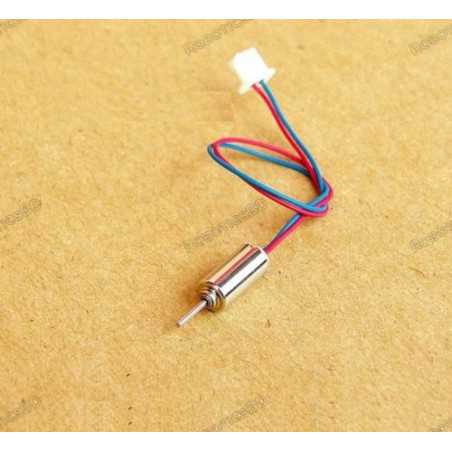

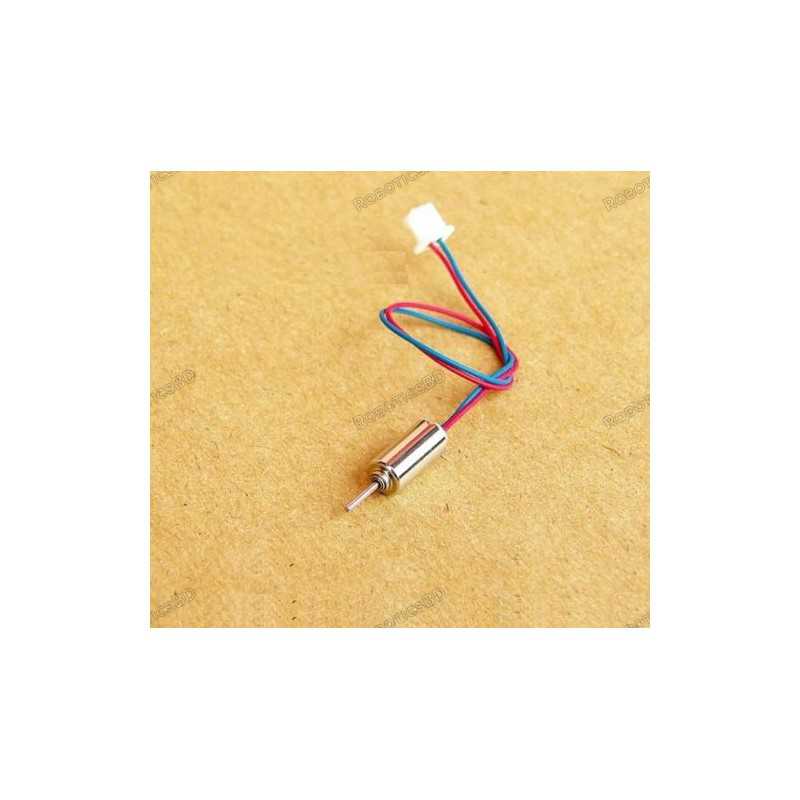

This 0408 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames. RoboticsBD
They are rated at 70000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- 8520 Coreless motor is High Speed and Low Torque motor.
- Less noisy operation.
- Offers low resistance.
- They are equipped with high-quality magnets.
- This coreless motor supports 1S battery. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
4080 |
| Rated Speed (RPM) |
70000 |
| Rated Voltage(V) |
3.7 |
| Rated Current(A) |
0.15 |
| Operating Temperature (°C) |
-10 to 50 |
| Rated RPM |
70500 |
| Rated Load Current (mA) |
1620 |
| Motor Color |
Silver |
| Motor Material |
Metal |
| Motor Diameter(mm) |
4 |
| Motor Length (mm) |
8 |
| Shaft Diameter (mm) |
0.7 |
| Cable Length (cm) |
8 |
| Shipment Weight |
0.03 kg |
| Shipment Dimensions |
12 × 8 × 2.5 |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x DC 3V 0408 4x8mm 70000RPM High Speed Hollow Cup Brushless Coreless Motor.
