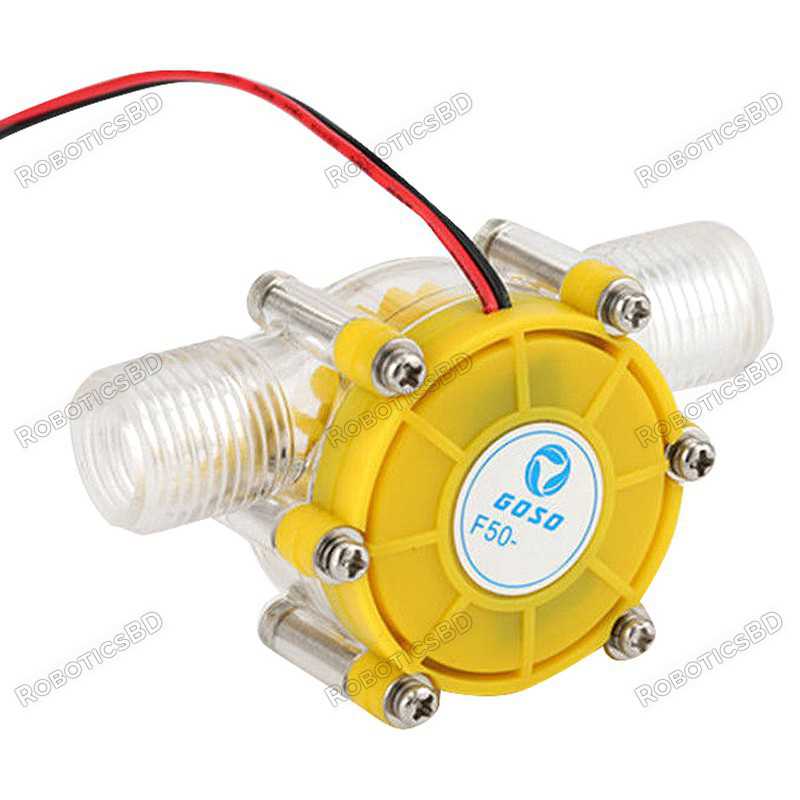

DC 12V Water Flow Pump Mini Hydro Generator Turbine

RBD-2143

  • DC 12V Water Flow Pump Mini Hydro Generator Turbine
  • Suitable for energy conversion of water into electrical energy
  • Can directly charge small batteries, mobile phones, or power LED lights
  • Output current: Max. greater than equal 220mA
BDT 990.00
BDT 990.00 BDT 990.00 BDT 990.00 BDT 990.00
Tax included Tax excluded Tax included Tax excluded
BDT 990.00 Tax excluded
BDT 990.00 Tax included
BDT 0.00 Tax
BDT 990.00 Tax excluded
BDT 0.00 Tax
BDT 990.00 Tax included
Quantity
In-Stock
27 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The DC 12V Water Flow Pump Mini Hydro Generator Turbine is a versatile device that allows for the conversion of water energy into electrical energy. This turbine can be used to directly charge small batteries, mobile phones, or power LED lights, making it an excellent solution for portable and off-grid applications. With a maximum output current of greater than equal 220mA, it provides sufficient power for various low-power devices. The line resistance of 10.5+/-0.5ohm ensures efficient energy transfer, while the insulation resistance of 10Mohm guarantees safe operation. The turbine is designed to withstand pressure, with a maximum closed outlet pressure of 0.6Mpa and a maximum opened outlet pressure of 1.2Mpa.

It can start operating at a water pressure as low as 0.05Mpa. With an axial clearance of 0.2-1.0mm and a mechanical noise level of less than equal 55dB, the turbine delivers smooth and quiet performance. The output voltage is directly proportional to the water pressure, eliminating the need for a voltage regulator circuit. Installation is simple, as it fits standard household 1/2 inch water pipes. With a voltage rating of 12V and a durable plastic construction, this turbine is a reliable and efficient solution for water energy conversion. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. DC 12V Water Flow Pump Mini Hydro Generator Turbine
  2. Converts water energy into electrical energy
  3. Can directly charge small batteries, mobile phones, or power LED lights
  4. Max. output current: greater than equal 220mA

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Portable power generation using water sources
  2. Off-grid power supply for remote locations
  3. Charging small batteries or mobile devices in outdoor settings
  4. Powering LED lights in outdoor or emergency situations
  5. Educational experiments or demonstrations on hydroelectricity
  6. Integration into DIY renewable energy projects
  7. Backup power solution during water shortages or disruptions

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Product Name DC 12V Water Flow Pump Mini Hydro Generator Turbine
Output Current Max. greater than equal 220mA
Line Resistance 10.5+/-0.5ohm
Insulation Resistance 10Mohm (DC100 megohmmeter)
Closed Outlet Pressure Max. 0.6Mpa
Opened Outlet Pressure Max. 1.2Mpa
Starting Water Pressure 0.05Mpa
Axial Clearance 0.2-1.0mm
Mechanical Noise less than equal 55dB
Output Characteristics Voltage proportional to water pressure
Installation Standard household 1/2 inch water pipe (Outer diameter: 20mm, inner diameter: 13mm)
Voltage 12V
Color Transparent + yellow
Material Plastic
Shipment Weight 0.088 kg
Shipment Dimensions 12 × 8 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x DC 12V Water Flow Pump Mini Hydro Generator Turbine
