3.6V Micro Hydro Generator Robotics Bangladesh
  • 3.6V Micro Hydro Generator Robotics Bangladesh

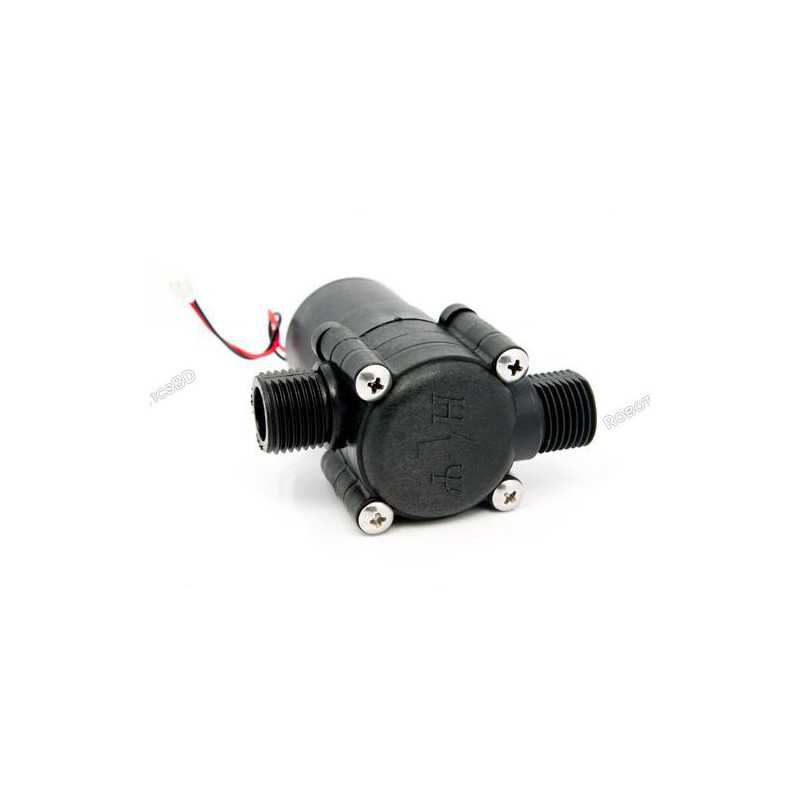

3.6V Micro Hydro Generator

RBD-1155

  • Built-in Lipo Charging Circuit
  • Stabilized Voltage Output
  • High Battery Capacity
BDT 1,250.00
BDT 1,250.00 BDT 1,250.00 BDT 1,250.00 BDT 1,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,250.00 Tax excluded
BDT 1,250.00 Tax included
BDT 0.00 Tax
BDT 1,250.00 Tax excluded
BDT 0.00 Tax
BDT 1,250.00 Tax included
Quantity
In-Stock
9 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This G1/2 micro hydro generator provides you clean and renewable electricity. With the help of the regulator circuit inside, the output of this generator is stable at 3.6V.  RoboticsBD

Time to replace the Li-po batteries in your waterside projects with the green and more accessible hydropower.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Working Pressure: < 2KGF
  2. Pressure Drop: 0.4 Bar (3.0 L / Min )
  3. Peak Current: 1.4 A
  4. Stand-by Current: Max. 1.4A
  5. Voltage Output: 3.6VDC --- 700mAh

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Power Output: 125mW (4LPM)
Max. Flow: 20 L / Min ( 2KGF)
Water-resistance: IP4
High limited voltage: 4.3VDC
Dimensions: L 84.5 mm - W 64.5 mm - H 81 mm
Wire Length: 84 mm
Jack Type: JWT C2521 Terminal Plug
Connect Thread Gauge: G 1/2"
Weight: 165 ± 5g
Burst Pressure: 20KGF
Normal Operation Temp. 4 °C~80 °C
Max. Intermittent Operating Temp. 110 °C max. 30 min
Generating Model: NACuM Core (PAT NO.DE202006004800)
Shipment Weight 0.165 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package includes :

1 x 3.6V Micro Hydro Generator.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1155
9 Items

Specific References

EAN13
1155
