Boost Module
  • Boost Module

DC-DC Boost Module

RBD-0730

  • The performance is much higher than LM2577.
  • Non-isolated Boost converter.
  • It has a non-synchronous rectifier.
  • Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;
  • Low ultra wide output voltage 5 v ~ 35 v;
BDT 130.00
BDT 130.00 BDT 130.00 BDT 130.00 BDT 130.00
Tax included Tax excluded Tax included Tax excluded
BDT 130.00 Tax excluded
BDT 130.00 Tax included
BDT 0.00 Tax
BDT 130.00 Tax excluded
BDT 0.00 Tax
BDT 130.00 Tax included
Quantity
In-Stock
164 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

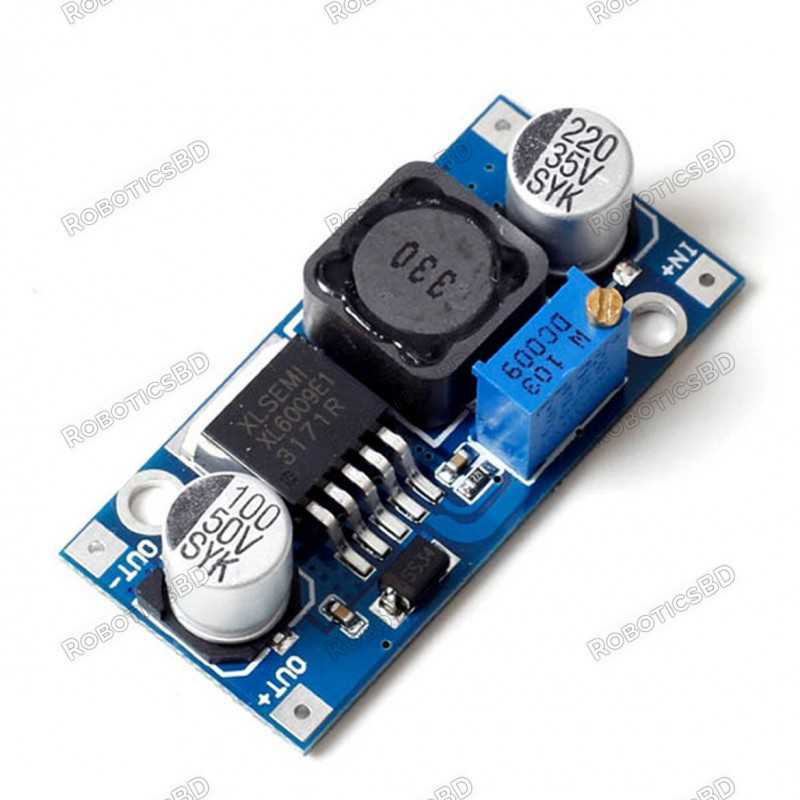

This CN6009 XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller

Pins
  • IN+ input positive
  • IN- input negative!
  • OUT+ output positive
  • OUT- output negative

Features :

  1. The performance is much higher than LM2577.
  2. Non-isolated Boost converter.
  3. It has a non-synchronous rectifier.
  4. Small and Handy voltage regulator module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage (V) 3 to 32
Input Current(A) 4
Output Voltage(V) 5 ~ 35
Output Ripple(mV) 50
Efficiency 0.94
Switching Frequency(KHz) 400
Load Regulation ±0.5%
Voltage Regulation ±0.5%
Length (mm) 43
Width (mm) 20
Height (mm) 12
Weight (gm) 12
Shipment Weight 0.016 kg
Shipment Dimensions 5 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x DC-DC Boost Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0730
164 Items

Specific References

EAN13
0730
Comments (0)
Grade
No customer reviews for the moment.
