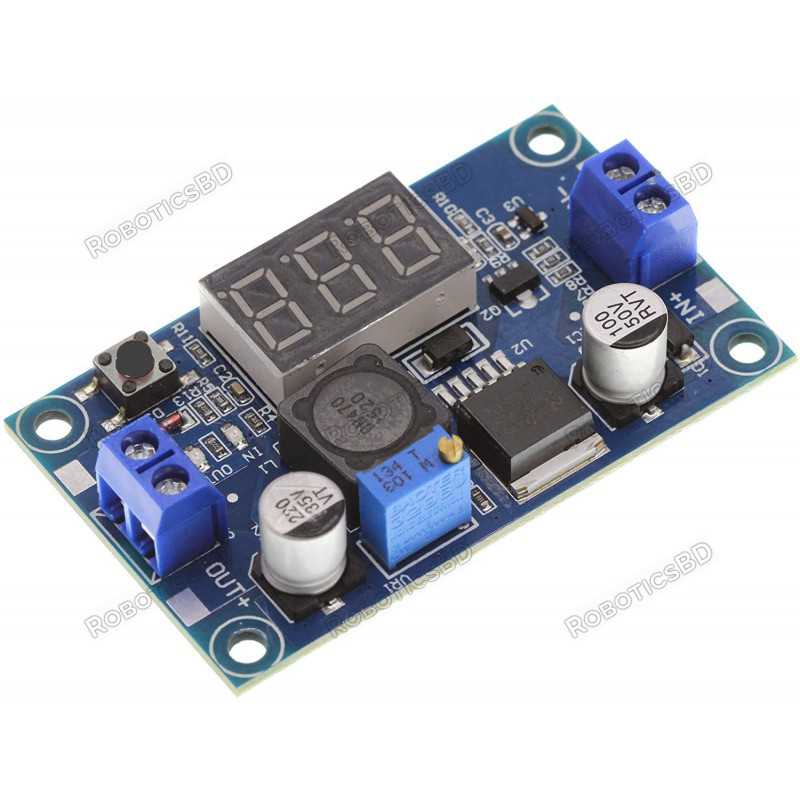

This is LM2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3 ~ 37V, it comes with a built-in voltmeter display and uses an advanced microcontroller. RoboticsBD
Together with its high precision multi-turn potentiometer, this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boasts a very high operating range with a DC input supply range of 4 ~ 40V and an adjustable output range of 1.3 ~ 37V. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Notes: Maximum current is dependent on input and output voltages, ambient temperature and cooling. To achieve maximum ratings an external heatsink may be required. Maximum LM2596 operating temperature must not exceed 125°C otherwise permanent thermal damage can occur. RoboticsBD
Features :
- Input reverse polarity protection
- Built-in output short protection function
- The built-in thermal shutdown function
- Press the right key to let the display show the input or output voltage. when the right “OUT” led light, it shows output, the left “IN” led show input.
- Power-off memory function, show that road after power voltage values measured for the last time
- Press the touch button for 3 seconds to turn off the LED display, touch the button again to turn on the LED display
- The band terminals, no iron can also be easy to use, and retention wire connection point
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Voltage (V) |
4 ~ 40 VDC |
| Output Voltage (VDC) |
1.3 ~ 37 |
| Max. Output Current (A) |
2 |
| Switching Frequency(KHz) |
150 |
| Operating Temperature (°C) |
-40 to 90 |
| Length (mm) |
62 |
| Width (mm) |
34 |
| Height (mm) |
12 |
| Weight (gm) |
22 |
| Shipment Weight |
0.025 kg |
| Shipment Dimensions |
7 × 4.5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x LM2596 DC DC Step Down Buck Converter with Digital Tube Display.
