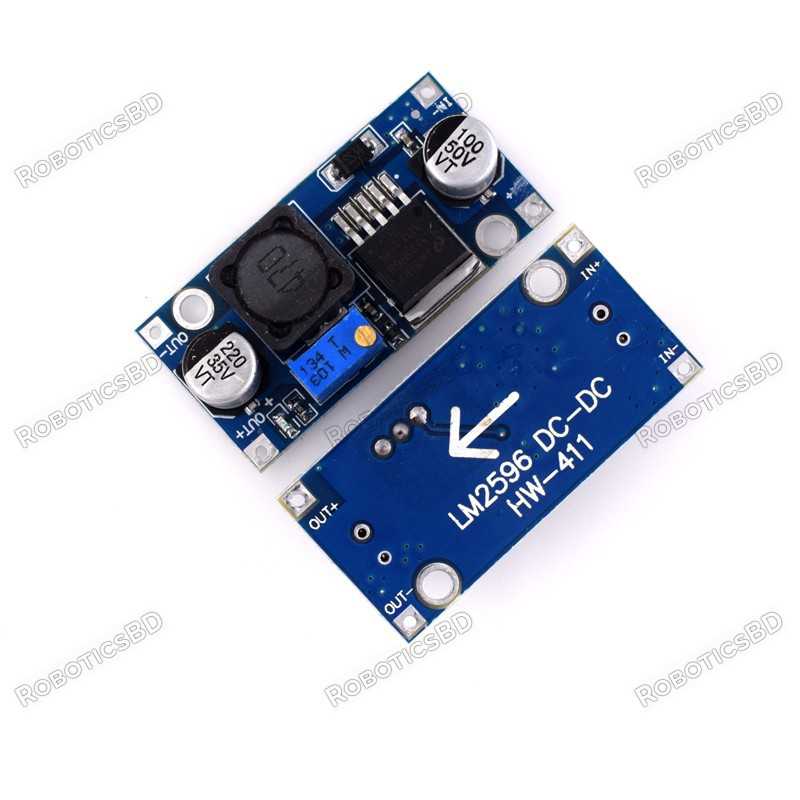

HW-411A LM2596 DC To Dc Buck Converter Step Down Module Power Supply Robotics Bangladesh
  • HW-411A LM2596 DC To Dc Buck Converter Step Down Module Power Supply Robotics Bangladesh

HW-411A LM2596 DC To Dc Buck Converter Step Down Module Power Supply

RBD-1855

  • Input voltage: 3-40V
  • Output voltage: 1.5-35V(Adjustable)
  • Output current: Rated current is 2A, maximum 3A
  • Switching Frequency: 150KHz
  • Operating temperature:Industrial grade (-40 to +85 )
  • Conversion efficiency: 92%(highest)
BDT 99.00
BDT 99.00 BDT 99.00 BDT 99.00 BDT 99.00
Tax included Tax excluded Tax included Tax excluded
BDT 99.00 Tax excluded
BDT 99.00 Tax included
BDT 0.00 Tax
BDT 99.00 Tax excluded
BDT 0.00 Tax
BDT 99.00 Tax included
Quantity
In-Stock
308 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.

This is an LM2596 DC-DC buck converter step-down power module with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with UNO, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it.

This device is internally compensated to minimize the number of external components to simplify the power supply design.

Since LM2596 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages. The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

This module does not come with Onboard SMD Status LED. Please refer RBD-1524 For Onboard SMD Status LED

Features:

  1. Input voltage:3-40V
  2. Output voltage:1.5-35V(Adjustable)
  3. Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
  4. Module Properties: non-isolated constant voltage module
  5. Rectification: non-synchronous rectification
  6. Short circuit protection: current limiting, since the recovery

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input voltage 3-40V
Output voltage 1.5-35V(Adjustable)
Output current Rated current is 2A, maximum 3A(Additional heatsink is required)
Switching Frequency 150KHz
Operating temperature Industrial grade (-40 to +85 )
Conversion efficiency 92%(highest)
Load Regulation ± 0.5%
Voltage Regulation ± 0.5%
Dynamic Response speed 5% 200uS
Dimension 45*20*14mm(L*W*H)
Shipment Weight 0.011 kg
Shipment Dimensions 5 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x LM2596S DC-DC Buck Converter Power Supply
