XL4015 DC-DC Step Down Adjustable Power Supply Module 5A Max
  • XL4015 DC-DC Step Down Adjustable Power Supply Module 5A Max
  • XL4015 DC-DC Step Down Adjustable Power Supply Module 5A Max
  • XL4015 DC-DC Step Down Adjustable Power Supply Module 5A Max

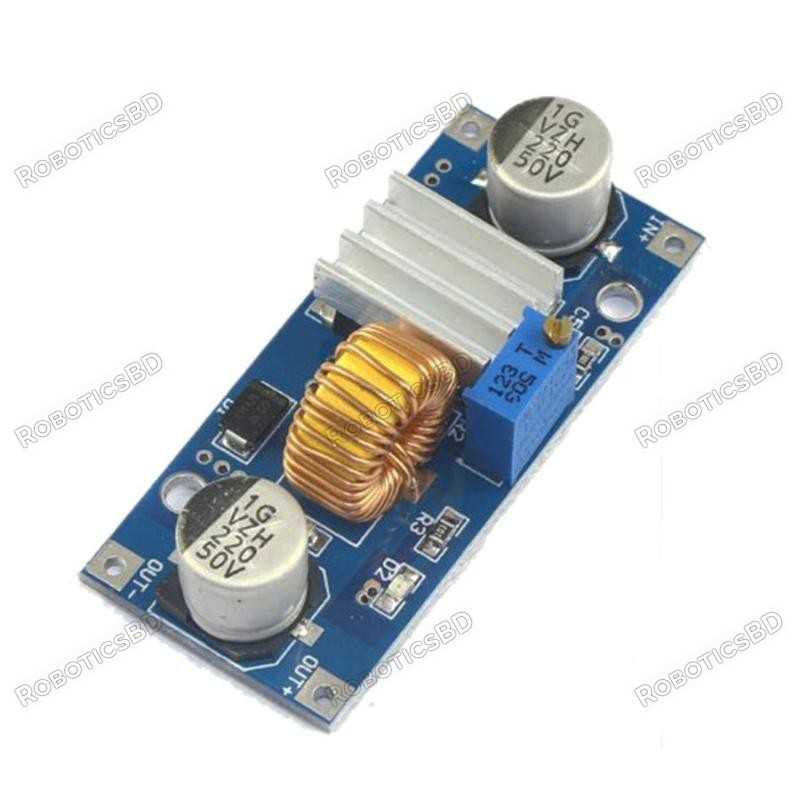

XL4015 DC-DC Step Down Adjustable Power Supply Module 5A Max

RBD-0395

  • Input voltage range: 4V-38V DC
  • Output voltage range: 1.25V-36V DC adjustable.
  • Output current: 0-5A.
  • Output power: 75W.
  • High efficiency up to 96%
  • The built-in thermal shutdown function
  • Built-in current limit function
  • In-Built output short protection function. RoboticsBD
BDT 190.00
BDT 190.00 BDT 190.00 BDT 190.00 BDT 190.00
Tax included Tax excluded Tax included Tax excluded
BDT 190.00 Tax excluded
BDT 190.00 Tax included
BDT 0.00 Tax
BDT 190.00 Tax excluded
BDT 0.00 Tax
BDT 190.00 Tax included
Quantity
In-Stock
34 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. RoboticsBD

This product is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency,  low ripple, and excellent line and load regulation. RoboticsBD

The DC/DC buck module has applications where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV portable instrument power supply telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. High efficiency up to 96%
  2. The built-in thermal shutdown function
  3. Built-in current limit function
  4. In-Built output short protection function
  5. Input reverse polarity protection: None (if required, the high current diode in series with the input). RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage (V) 4 to 38
Output Voltage(V) 1.25 to 36
Max. Output Current (A) 0 to 5
Output Power(Watt) 75
Length (mm) 54
Width (mm) 24
Height (mm) 16
Weight (gm) 16
Heatsink Dimensions(LxWxH) 16mm x 11mm x 5mm
Shipment Weight 0.02 kg
Shipment Dimensions 6.5 × 3 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x XL4015 DC-DC Step Down Adjustable Power Supply Module 5A Max.
