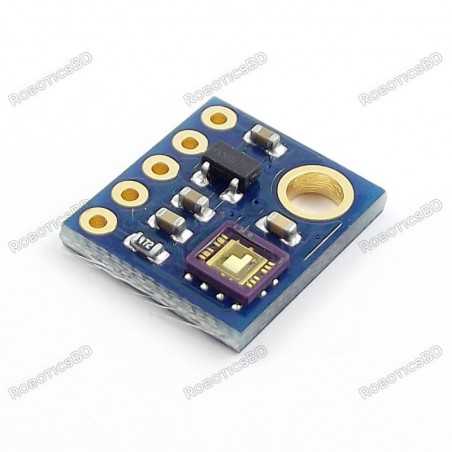

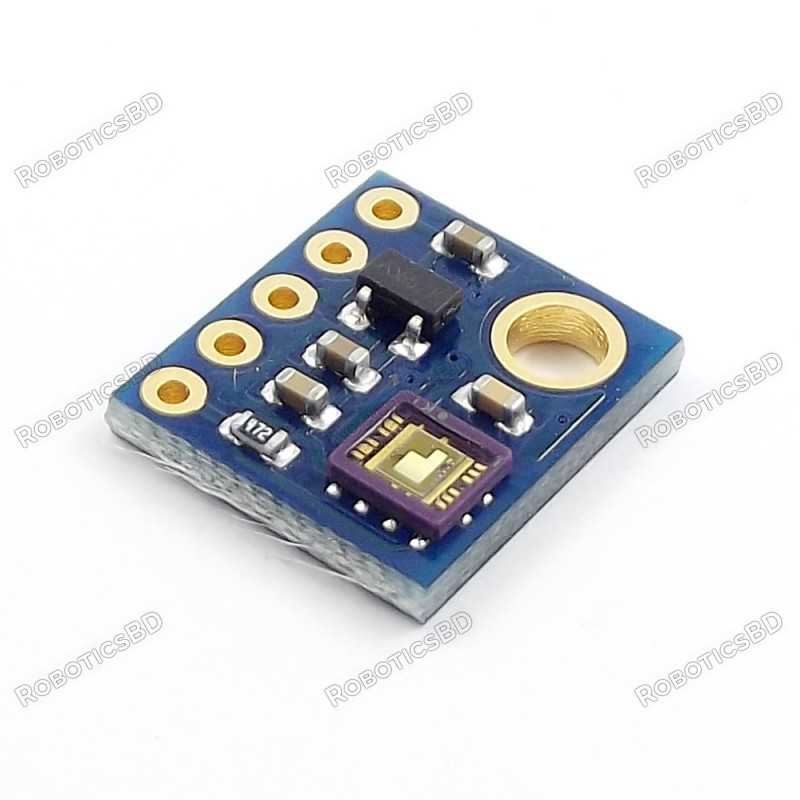

GY-ML8511 Ultraviolet Light UV Sensor Module
  • GY-ML8511 Ultraviolet Light UV Sensor Module
  • GY-ML8511 Ultraviolet Light UV Sensor Module
  • GY-ML8511 Ultraviolet Light UV Sensor Module

GY-ML8511 Ultraviolet Light UV Sensor Module

RBD-0357

  • Operating voltage (VCC): 3 V to 5V
  • Operating current: 120μA (typical) 190μA (max)
  • Operating Temperature: -40°C ~ +85°C
  • Photodiode sensitive to UV-A and UV-B
  • Embedded operational amplifier
  • Analog voltage output
  • Low supply current (300uA type) and low standby current (0.1uA type) RoboticsBD
BDT 1,700.00
BDT 1,700.00 BDT 1,700.00 BDT 1,700.00 BDT 1,700.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,700.00 Tax excluded
BDT 1,700.00 Tax included
BDT 0.00 Tax
BDT 1,700.00 Tax excluded
BDT 0.00 Tax
BDT 1,700.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is GYML8511 Analog Output Ultra-Violet Light Sensor Module. The GYML8511 module is easy to use the ultraviolet light sensor. The GYML8511 Sensor works by outputting an analog signal in relation to the amount of detected UV light. RoboticsBD

This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.

This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs an analog voltage that is linearly related to the measured UV intensity (mW/cm2).

Simply connect the output of the module to an ADC channel of the microcontroller to read UV Light intensity. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pinouts

VIN: Power Connection (3V – 5V)
3.3V: Output of the onboard regulator
GND: Ground
OUT: Analog Output
EN: Enable Input

Applications

  • Sunburn detectors
  • Controlled UV Exposure chambers
  • UV Detectors for the safety of Humans, and animals. RoboticsBD

Features :

  1. Photodiode sensitive to UV-A and UV-B
  2. Embedded operational amplifier
  3. Analog voltage output
  4. Low supply current (300uA type) and low standby current (0.1uA type) RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model GY-ML8511
Operating Voltage (VDC) 3 ~ 5
Max. Operating Current (mA) 0.19
Operating Temperature (°C) -40 to 90
Detection Wavelength Band 280nm to 390nm
Peak Wavelength 365nm
PCB Size ( L x W ) mm 13 x 12
Shipment Weight 0.05 kg
Shipment Dimensions 4 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x GY-ML8511 Ultraviolet Light UV Sensor Module

1 x 5pin Male-Male Header.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0357
4 Items

Specific References

EAN13
0357
