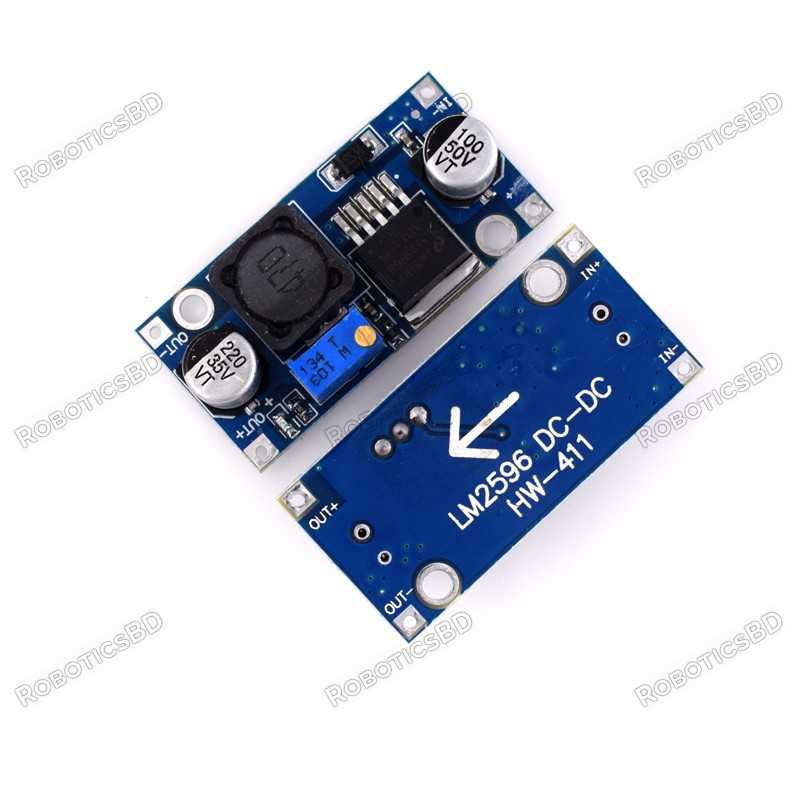

HW-411A LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter Robotics Bangladesh
  • HW-411A LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter Robotics Bangladesh

HW-411A LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter

RBD-0406

  • Input voltage: 4.5-35V,
  • Output voltage: (3-35V) continuously adjustable (recommended load debugging).
  • Minimum pressure: 1.5V
  • Output current: rated current 2A, 3A maximum
  • Output Power: 15W maximum. RoboticsBD

BDT 99.00
BDT 99.00 BDT 99.00 BDT 99.00 BDT 99.00
Tax included Tax excluded Tax included Tax excluded
BDT 99.00 Tax excluded
BDT 99.00 Tax included
BDT 0.00 Tax
BDT 99.00 Tax excluded
BDT 0.00 Tax
BDT 99.00 Tax included
Quantity
In-Stock
351 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

It is LM2596 DC-DC Buck Converter with voltage rating 4.5-40V to 3-35V. This step down power module is adjustable with a potentiometer. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Adjustment method: first correct input power (between 4.5-50V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
  2. Input: IN+ input positive IN- input negative
  3. Output: OUT+ output positive OUT- output negative
  4. Static power consumption is only about 6mA. RoboticsBD
  5. Connection: Welding, plus pin can be directly soldered after the PCB.
  6. Short circuit protection: current limiting, thermal protection, self-recovery.
  7. Non-isolated step-down (BUCK) switching regulator.
  8. Short circuit protection: Current limiting, self-recovery
  9. Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
  10. Non-synchronous rectification. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage (V) 4 ~ 35 VDC
Output Voltage(V) 3 ~ 35
Max. Output Current (A) 3
Conversion efficiency 92%(highest)
Switching frequency 150 KHz
Output ripple 30mA (maximum)
Load Regulation ± 0.5%
Voltage Regulation ± 0.5%
Dynamic Response speed 5% 200uS
Operating Temperature (°C) -40 to 90
PCB Size ( L x W ) mm 40 x 20
Shipment Weight 0.095 kg
Shipment Dimensions 9 × 7 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter.
