XD-42 Breadboard Power Supply 5V / 3.3V Micro USB

RBD-1736

  • Locking On/Off Switch
  • Green LED Power Indicator
  • Voltage Swapping Switch on both rail Channel
  • Its concave design will not waste your proto zone.
  • Easy to install on a breadboard with Compact portable size
BDT 140.00
BDT 140.00 BDT 140.00 BDT 140.00 BDT 140.00
Tax included Tax excluded Tax included Tax excluded
BDT 140.00 Tax excluded
BDT 140.00 Tax included
BDT 0.00 Tax
BDT 140.00 Tax excluded
BDT 0.00 Tax
BDT 140.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Small and compact XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module can make your project easy and portable and you will not need to carry bulky power supplies with you. The module comes with a series diode, polarity reversal protection. The two-channel module can take DC 7V to 12V input through DC (Black ) Jack and can produce 3.3V and +5V on each separate channels. RoboticsBD

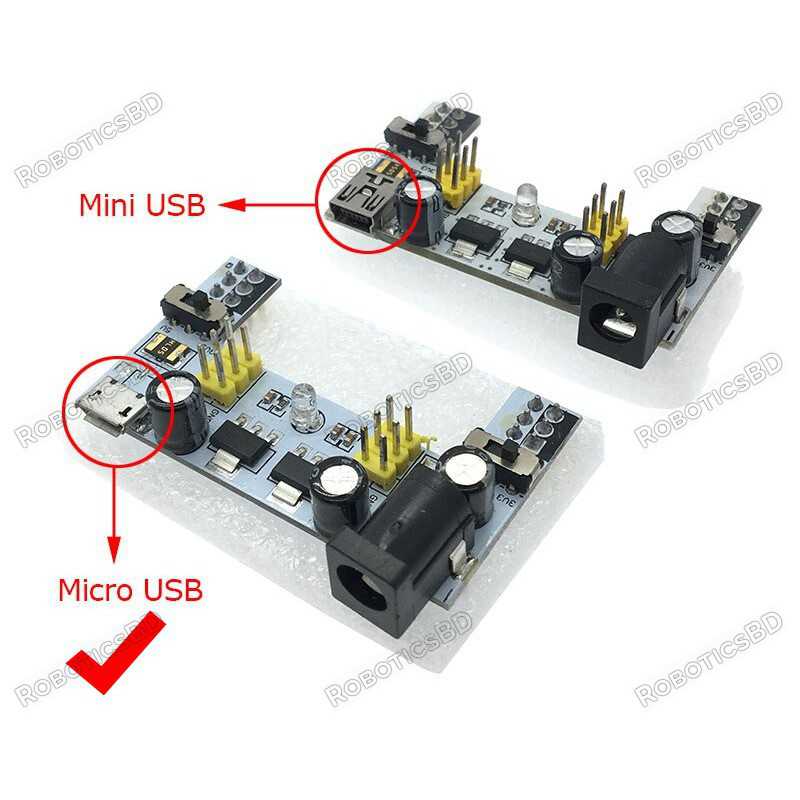

The module is having a onboard Micro USB port to take input to the module. It also has an indicator LED to show power On/Off status and Voltage switching (between 3.3v or 5V ) button for switching the output voltage on the breadboard on both channels. It is a must-have product in your DIY kit for experimenters those have to test/prototype electronic circuits on a breadboard. RoboticsBD

This is a power supply module for the standard breadboard. Its concave design will not waste your proto zone. This breadboard power shield supports Micro USB power supply and power jack 7-12V supply. There are two independent power optional: 5V/3.3V. With this board, you can send power to both power lane of the breadboard, and each side has an on/off switch. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Locking On/Off Switch
  2. Green LED Power Indicator
  3. Voltage Swapping Switch on both rail Channel
  4. Its concave design will not waste your proto zone.
  5. Easy to install on a breadboard with Compact portable size

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage Range 6.5V – 12V
Output Voltage(V) 3.3/5
Adjustable
Length (mm) 53
Width (mm) 36
Height (mm) 14
Weight (gm) 11
Shipment Weight 0.016 kg
Shipment Dimensions 8 × 6 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x XD-42 Breadboard Power Supply 5V / 3.3V Micro USB.
