I2C Bi-directional Logic Level Converter Robotics Bangladesh
  • I2C Bi-directional Logic Level Converter Robotics Bangladesh

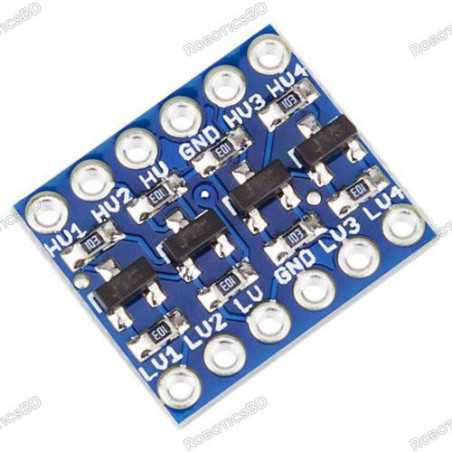

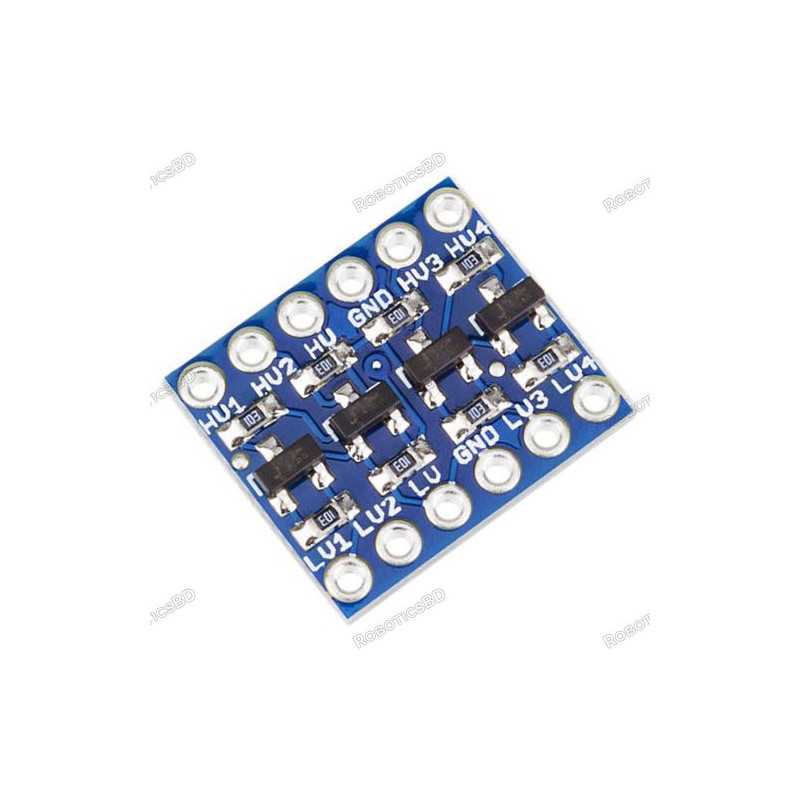

I2C Bi-directional Logic Level Converter

RBD-0944

  • Material: ABS + metal
  • Dimensions: 16 x13 x 3 (L x W x H) mm
  • Weight: 2gm
  • Mutual transform between 5V TTL and 3.3V TTL
  • Four channels of logic and high voltage low voltage logic can two-way transform
  • Portable and lightness, with 2 rows 6 pin contact pins
BDT 65.00
BDT 65.00 BDT 65.00 BDT 65.00 BDT 65.00
Tax included Tax excluded Tax included Tax excluded
BDT 65.00 Tax excluded
BDT 65.00 Tax included
BDT 0.00 Tax
BDT 65.00 Tax excluded
BDT 0.00 Tax
BDT 65.00 Tax included
Quantity
In-Stock
7 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels.  RoboticsBD
The logic level converter circuit convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including I²C, SPI, and asynchronous TTL serial.

If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be? A bi-directional Level Converter- 4 Channel is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successful.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

How to use:

  1. High voltage (5V for example) to the ‘HV’ pin
  2. Low voltage (3.3V for example) to ‘LV’
  3. Gound from the system to the ‘GND’ pin.

Features:

  1. Mutual transform between 5V TTL and 3.3V TTL
  2. Four channels of logic and high voltage low voltage logic can two-way transform
  3. Portable and lightness, with 2 rows 6 pin contact pins
  4. Level Converter- 4 ChannelCompatible with the bread plate, can be used directly put on the breadboard
  5. 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Number of Channels 4
Voltage on Lx Side 1.8V-5V
Voltage on Hx Side 2.8V-6V
Power 2.8V – 6V
Length (mm) 16
Width (mm) 13
Height (mm) 3
Weight (gm) 2
Shipment Weight 0.005 kg
Shipment Dimensions 8 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Level Converter Hookup Guide

Package Includes:

1 x I2C Level Converter- 4 Channel.
