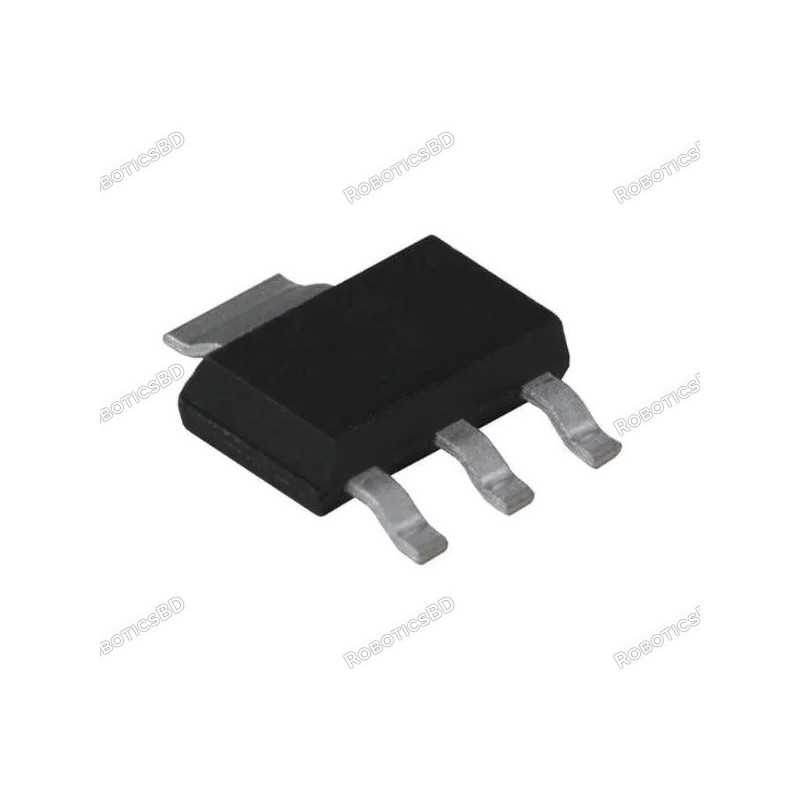

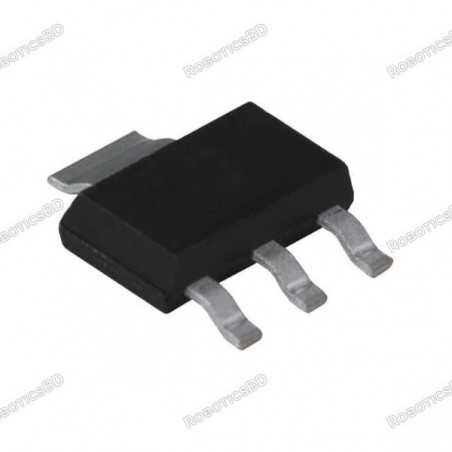

AMS1117-5.0V, 1A, SOT-223 Voltage Regulator IC

RBD-2109

  • Low dropout voltage
  • Load regulation: 0.2% typical
  • Optimized for Low Voltage
  • On-chip thermal limiting
  • Built-in thermal shutdown
  • Good noise rejection
BDT 49.00
BDT 49.00 BDT 49.00 BDT 49.00 BDT 49.00
Tax included Tax excluded Tax included Tax excluded
BDT 49.00 Tax excluded
BDT 49.00 Tax included
BDT 0.00 Tax
BDT 49.00 Tax excluded
BDT 0.00 Tax
BDT 49.00 Tax included
Quantity
In-Stock
169 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

AMS1117-5.0V, 1A, SOT-223 Voltage Regulator IC is a series of low dropout three -terminal regulators with a dropout of 5.0V at 1A load current. AMS 1117 features a very low standby current 2mA compared to 5mA of a competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.

AMS 1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses a trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%

Product Images are shown for illustrative purposes only and may differ from the actual product.

Schematics:

Application:

  1. High-Efficiency Linear Regulators
  2. Post Regulators for Switching Supplies
  3. 5V to 3.3V Linear Regulator
  4. Battery Chargers
  5. Active SCSI Terminators
  6. Power Management for Notebook
  7. Battery Powered Instrumentation

Features:

  1. Low dropout voltage
  2. Load regulation: 0.2% typical
  3. Optimized for Low Voltage
  4. On-chip thermal limiting
  5. Built-in thermal shutdown
  6. Good noise rejection
  7. Standard SOT-223 and TO-252 packages
  8. Three-terminal adjustable or fixed low dropout

General Specification
Package/Case SOT-223
Mounting Type SMD/SMT
Product Series AMS1117
No. of Output 1
Output Type Fixed
Polarity Positive
Input Voltage Range 1.8V- 15V DC
Output Voltage(V) 5
Max. Output Current (A) 1
Operating Temperature Range (°C) -24 to 84
Load Regulation 0.4% Max
Line Regulation 0.2% Max
Dimensions in mm (LxWxH) 6.34 x 3.44 x 1.61
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x AMS1117-1.8V, 1A, SOT-223 Voltage Regulator IC
