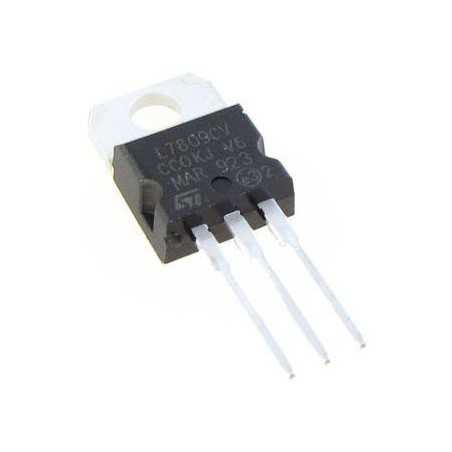

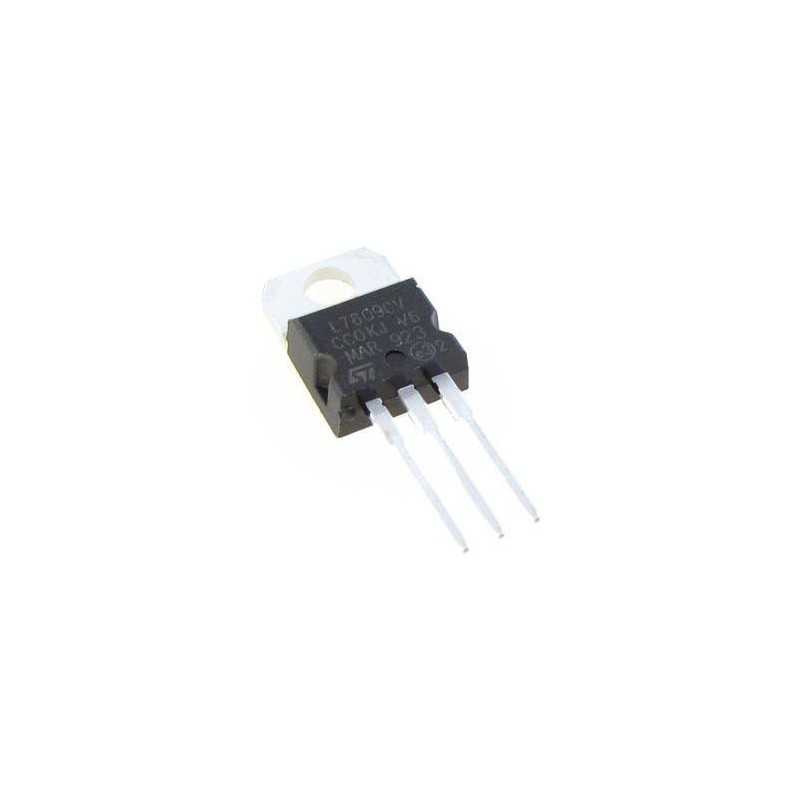

The L7809 is a fixed output, three terminal precision positive voltage regulator in 3 pins TO-220 package. This regulator can provide local on-card regulation by eliminating distribution problems associated with single point regulation. The L78M09CV fixed voltage regulator is designed with thermal overload protection that shuts down the circuit when subjected to an excessive power overload condition, internal short circuit protection that limits maximum current the circuit will pass and output transistor safe area compensation that reduces the output short circuit as the voltage across the pass transistor is increased. If adequate heat sinking is provided then this positive voltage regulator can deliver over 0.5A output current. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Fixed output voltage is 9V
- Output current is 0.5A
- Dropout voltage is 2V
- Maximum DC input voltage is 35V
- Output transition SOA protection
- Output voltage tolerance is 4%
- Operating temperature range 0°C to 125°C
- Applications: Power Management.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Output Voltage |
9 V |
| Maximum Output Current |
1.5A |
| Package Type |
TO-220 |
| Output Type |
Fixed |
| Mounting Type |
Through Hole |
| Maximum Input Voltage |
35 V |
| Pin Count |
3 |
| Minimum Operating Temperature |
0 °C |
| Maximum Operating Temperature |
125 °C |
| Number of Outputs |
1 |
| Polarity |
Positive |
| Dimensions |
10.4 x 4.6 x 15.75mm |
| Length |
10.4mm |
| Line Regulation |
180 mV |
| Typical Dropout Voltage @ Current |
2V |
| Series |
L78xx |
| Load Regulation |
180 mV |
| Height |
15.75mm |
| Quiescent Current |
8mA |
| Accuracy |
0.02 |
| Width |
4.6mm |
| Dropout Voltage Measurement Current |
1 A |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x L7809 Voltage Regulator.
