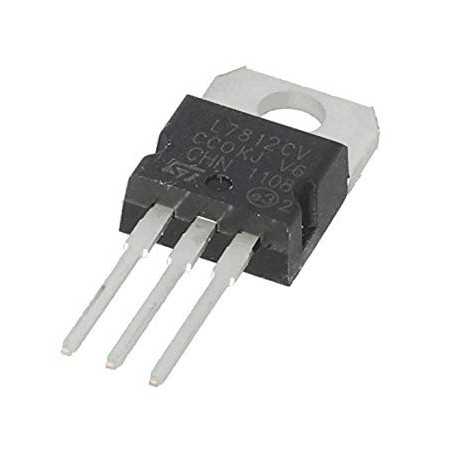

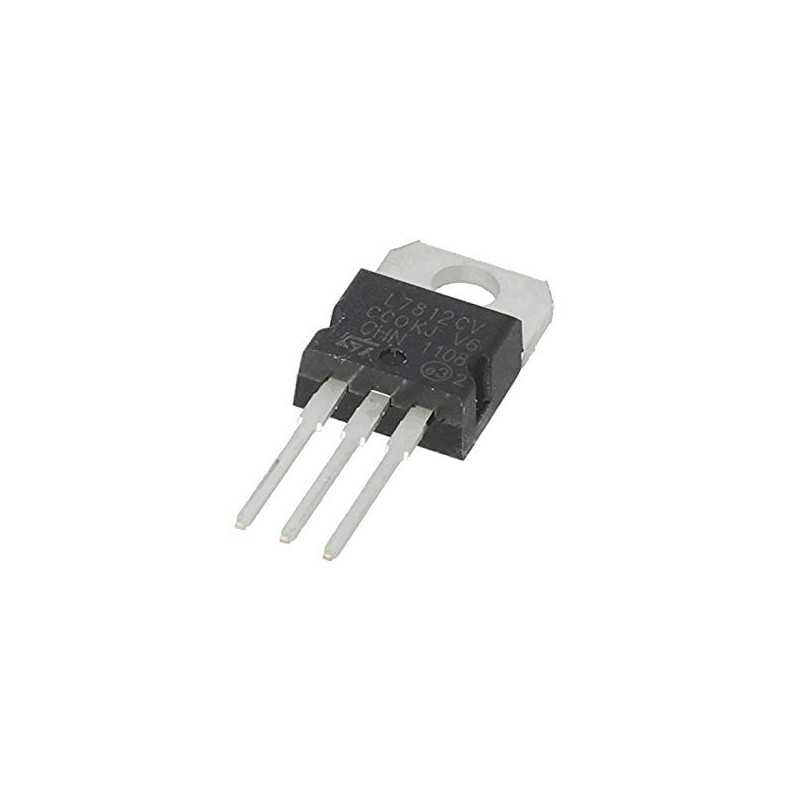

L7812CV Linear Voltage Regulator
  • L7812CV Linear Voltage Regulator

L7812CV Linear Voltage Regulator

RBD-1009

  • Thermal Overload Protection
  • Short-circuit Protection
  • Output Transition SOA Protection
  • 4% Output Voltage Tolerance
  • Guaranteed in Extended Temperature Range
  • Applications: Power Management
BDT 15.00
BDT 15.00 BDT 15.00 BDT 15.00 BDT 15.00
Tax included Tax excluded Tax included Tax excluded
BDT 15.00 Tax excluded
BDT 15.00 Tax included
BDT 0.00 Tax
BDT 15.00 Tax excluded
BDT 0.00 Tax
BDT 15.00 Tax included
Quantity
In-Stock
34 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The L78M12CV is a three-terminal positive Voltage Regulator with several fixed output voltages, making it useful in a wide range of applications. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Thermal Overload Protection
  2. Short-circuit Protection
  3. Output Transition SOA Protection
  4. 4% Output Voltage Tolerance. RoboticsBD
  5. Guaranteed in Extended Temperature Range
  6. Applications: Power Management

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Output Voltage 12 V
Maximum Output Current 1.5A
Package Type TO-220
Output Type Fixed
Mounting Type Through Hole
Maximum Input Voltage 40 V
Pin Count 3
Minimum Operating Temperature 0 °C
Maximum Operating Temperature #ERROR!
Number of Outputs 1
Polarity Positive
Typical Dropout Voltage @ Current 2 V @ 1 A
Quiescent Current 8mA
Dropout Voltage Measurement Current 1 A
Width 4.6mm
Dimensions 10.4 x 4.6 x 15.75mm
Load Regulation 240 mV
Series L78xx
Height 15.75mm
Length 10.4mm
Line Regulation 240 mV
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x L78M12CV (L7812CV) TO-220 Linear Voltage Regulator.
