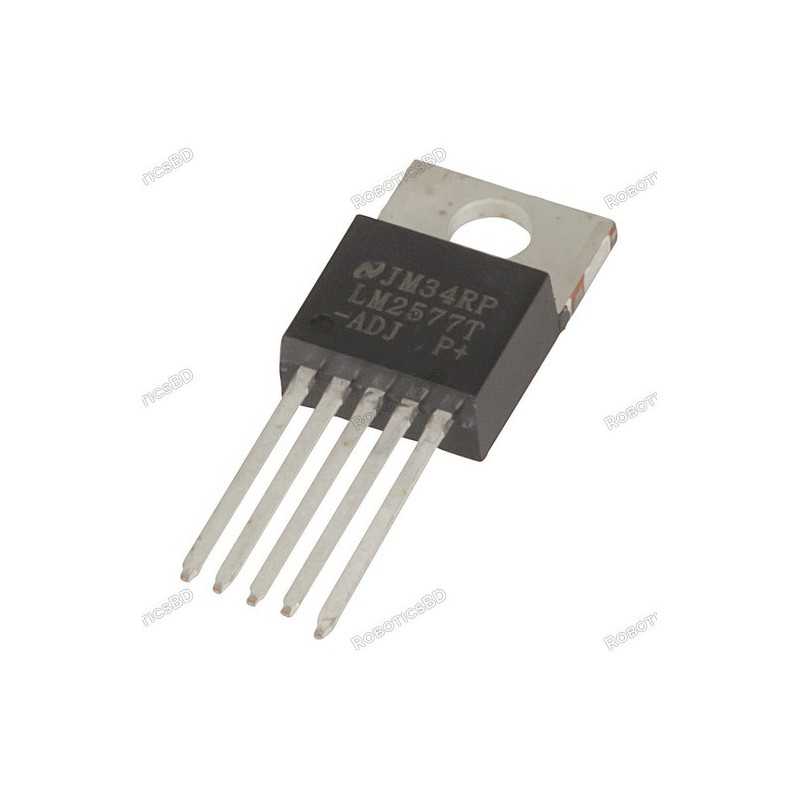

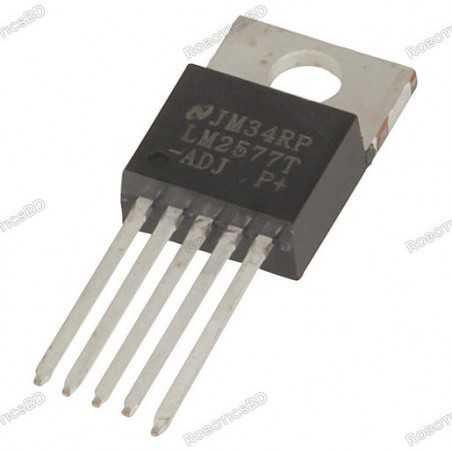

LM2577 Boost Regulator IC

RBD-1456

  • IC Name: LM2577
  • Package/Case: DIP-5
BDT 60.00
BDT 60.00 BDT 60.00 BDT 60.00 BDT 60.00
Tax included Tax excluded Tax included Tax excluded
BDT 60.00 Tax excluded
BDT 60.00 Tax included
BDT 0.00 Tax
BDT 60.00 Tax excluded
BDT 0.00 Tax
BDT 60.00 Tax included
Quantity
In-Stock
42 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The LM1577/LM2577 are monolithic integrated circuits that provide all of the power and control functions for step-up (boost), flyback, and forward converter switching regulators. The device is available in three different output voltage versions: 12V, 15V, and adjustable. RoboticsBD

Requiring a minimum number of external components, these regulators are cost effective, and simple to use. Listed in this data sheet are a family of standard inductors and flyback transformers designed to work with these switching regulators. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Simple boost regulator
  2. Flyback and forward regulators
  3. Multiple-output regulator

Features:

  1. Requires few external components
  2. NPN output switches 3.0A, can stand off 65V
  3. Wide input voltage range: 3.5V to 40V
  4. Current-mode operation for improved transient response, line regulation, and current limit
  5. 52 kHz internal oscillator
  6. Soft-start function reduces in-rush current during start-up
  7. Output switch protected by current limit, under-voltage lockout, and thermal shutdown

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-5
Minimum Supply Voltage (V) 3.5
Maximum Supply Voltage (V) 40
Product Type LM2577 Boost Regulator IC
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet
  2. Datasheet

Package Includes:

1 x LM2577 Boost Regulator IC.
