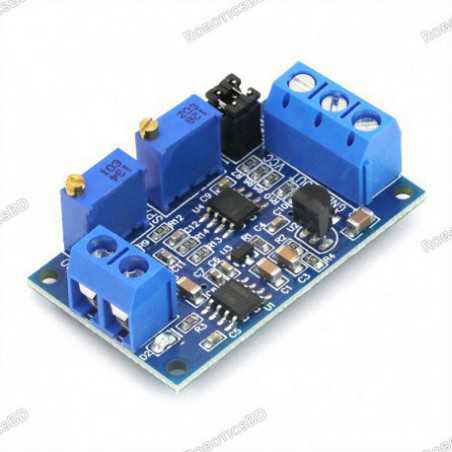

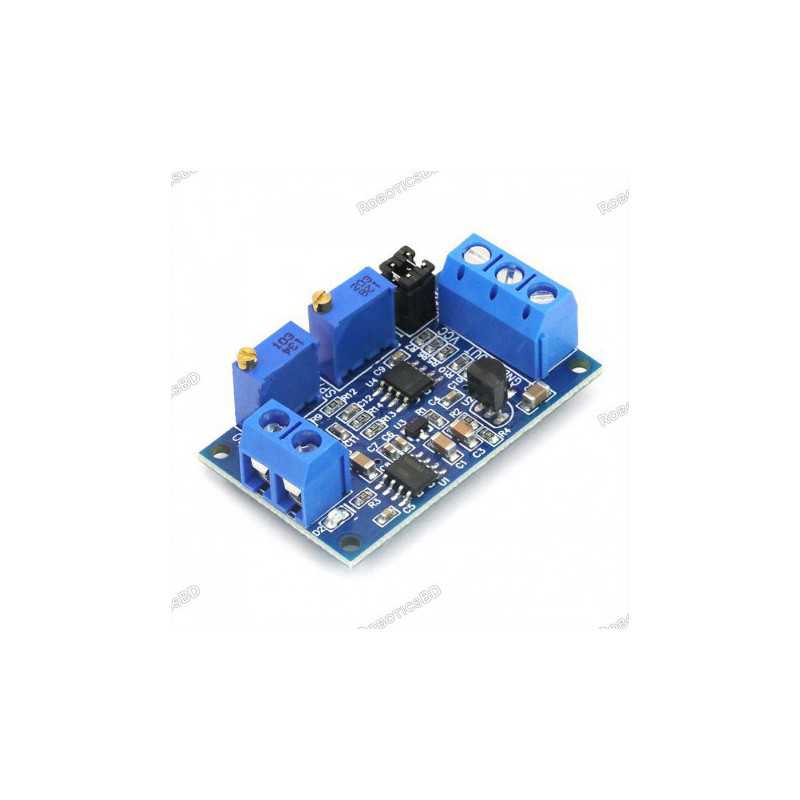

Current to Voltage Transmitter Module

RBD-1344

  • Supply voltage range: DC 7 V ~ 35 V
  • Output voltage signal: 0 ~ 2.5 v, 3.3 v, 5 v, 10 v, 15 V.
  • 4-20mA to 0-15V,0-5V,0-10V
BDT 590.00
BDT 590.00 BDT 590.00 BDT 590.00 BDT 590.00
Tax included Tax excluded Tax included Tax excluded
BDT 590.00 Tax excluded
BDT 590.00 Tax included
BDT 0.00 Tax
BDT 590.00 Tax excluded
BDT 0.00 Tax
BDT 590.00 Tax included
Quantity
In-Stock
38 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

In instrumentation systems, measurement of the use of streaming methods for the transmission of sensor information is common. The flow system, due to the fact that in the whole path of the signal, constant flow, has no losses and is more accurate. For this reason, most industrial devices, especially PLCs, use a current system. But working with a voltage system is still common in many sensors and devices. In order to communicate between current and voltage systems, you need to have a current converter to the voltage. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. The module is wired according to the definition, the power supply voltage is 7-36V (if the output is to 10V, the supply voltage must be greater than 12V)
  2. After power-on, the D2 light should be on, otherwise check the line connection. The board is reversely protected, and the reverse is not burned.
  3. When the current input is at the minimum value (0mA or 4mA), adjust the zero potentiometer to make the VOUT output the minimum value (0.0V or other voltage).  RoboticsBD
  4. When the current input is at the maximum value (20mA), adjust the range potentiometer to make the VOUT output the maximum value (3.3V or 5V or 10V, when the input is 4~20ma, the output can be as small as 2.5V)

According to the demand, select the corresponding range through the jumper cap:

4 to 20 mA:

  • 0～2.5V range: J1 1, 2 feet open, 3, 4 feet short circuit
  • 0～3.3V range: J1 1, 2 feet disconnected, 3, 4 feet disconnected
  • 0～5.0V range: J1 1, 2 feet Short circuit, 3, 4 pin short circuit
  • 0~10.0V range: J1 1, 2 pin short circuit, 3, 4 pin disconnect

0 to 20 mA:

  • 0～3.3V range: J1 1, 2 feet are disconnected, 3, 4 feet are disconnected
  • 0～5.0V range: J1 1, 2 pin short circuit, 3, 4 pin short circuit
  • 0～10.0V range: J1 1, 2 pin short circuit , 3, 4 feet disconnected

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Current Rating 0/4~20mA
DC Rating 0~3.3/5/10V
Input current: 0 or 4mA~20mA
Voltage output: 0~3.3V / 5V /10V
Size: 42 (L) x 25.2 (W) mm
Shipment Weight 0.010 kg
Shipment Dimensions 3.5 × 2.5 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Current to Voltage 4-20mA to 0-15V 0-5v/0-10V Isolation Transmitter Signal Converter dc 12v 24v

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1344
38 Items

Specific References

EAN13
1344
